Removal & Installation

Disconnect coil wire from coil. Disconnect electrical connectors from ignition control module. Remove ignition control module mounting nuts. Remove ignition control module. To install, reverse removal procedure.

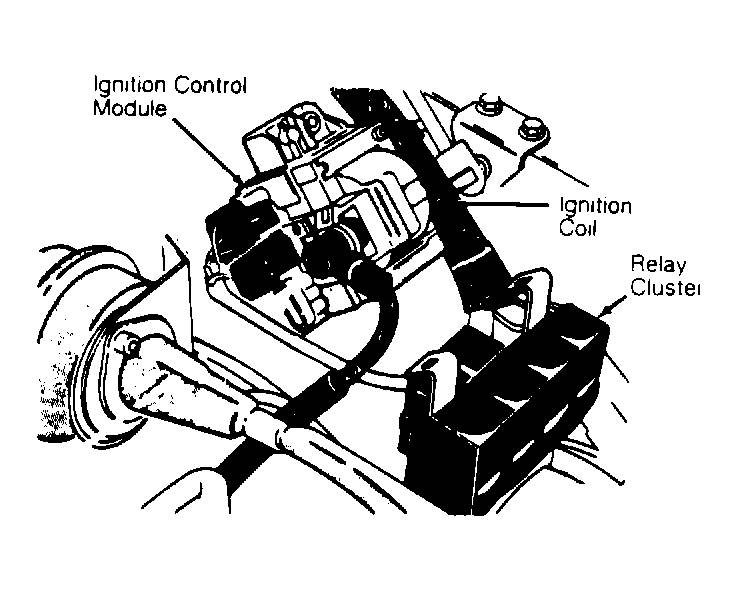

Fig 1: Location of Ignition Control Module

Courtesy of CHRYSLER MOTORS.
