Test 16A: LF Wheel Speed Sensor Fault

Fig 1: Test 16A - LF Wheel Speed Sensor Fault, Schematic
G91D10804

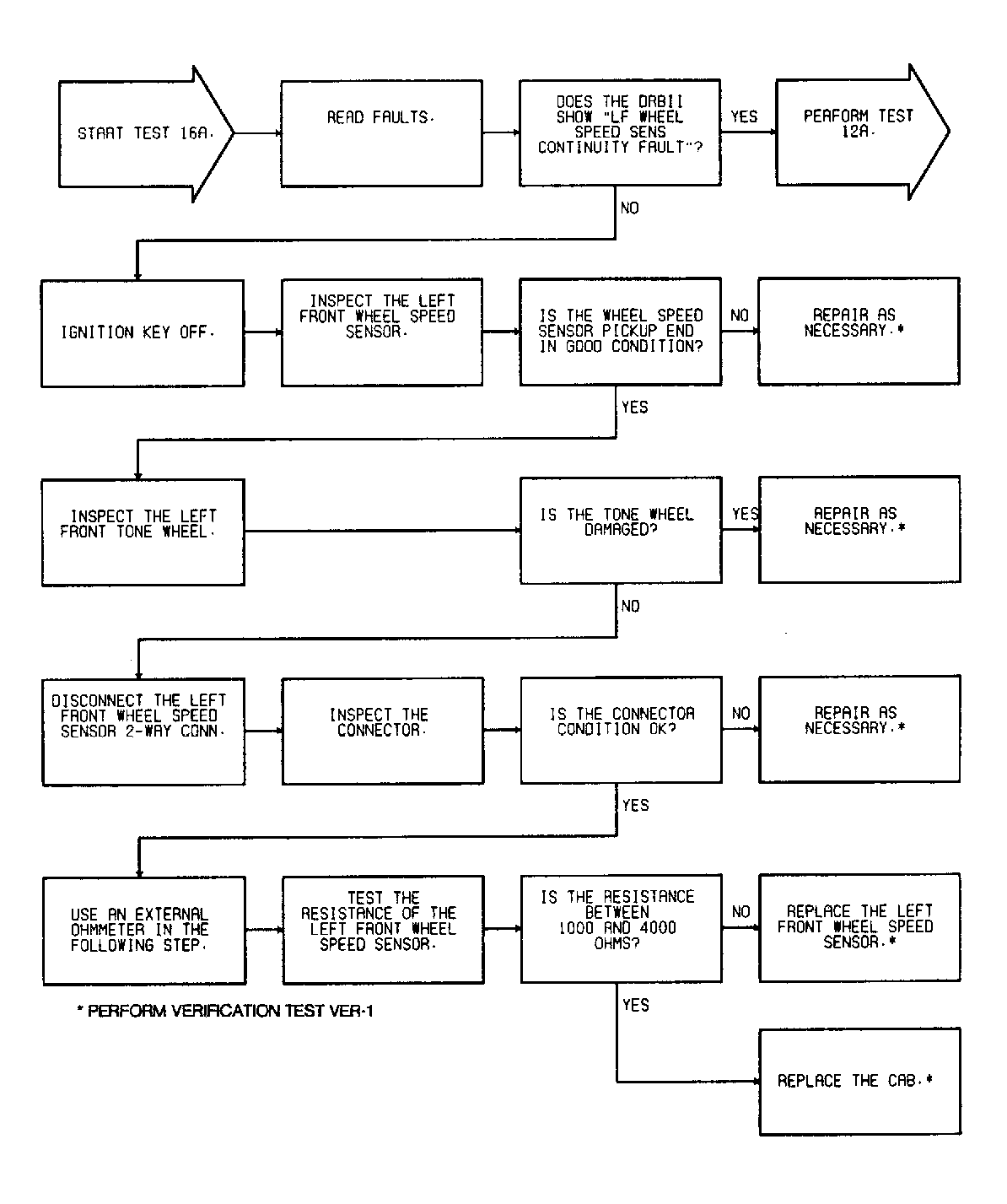

Fig 2: Test 16A - LF Wheel Speed Sensor Fault, Flow Chart
G91B10844
