Keys To Diagrams

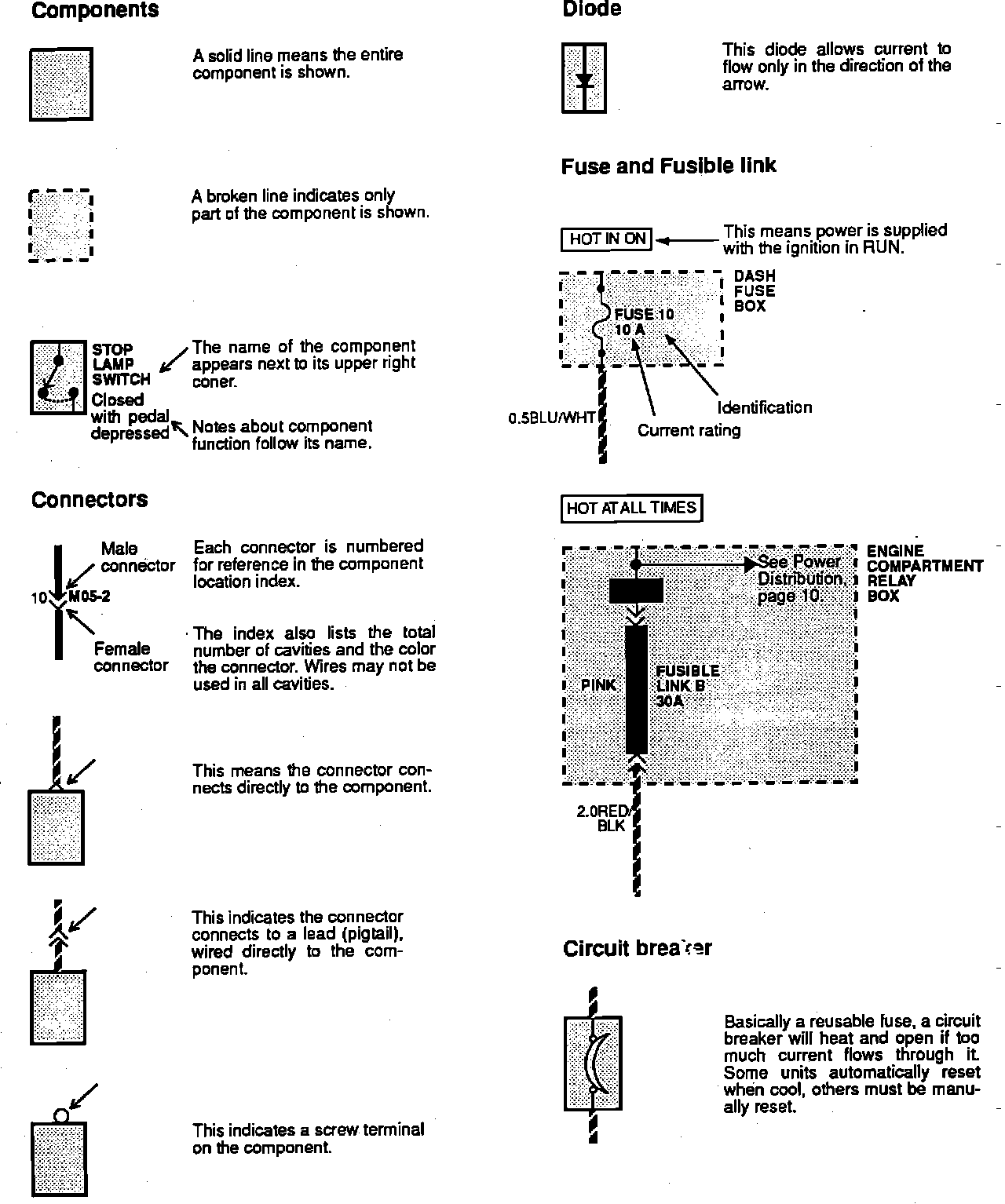

Symbol Identification And Key To Wiring Diagrams:



Symbol Identification And Key To Wiring Diagrams:

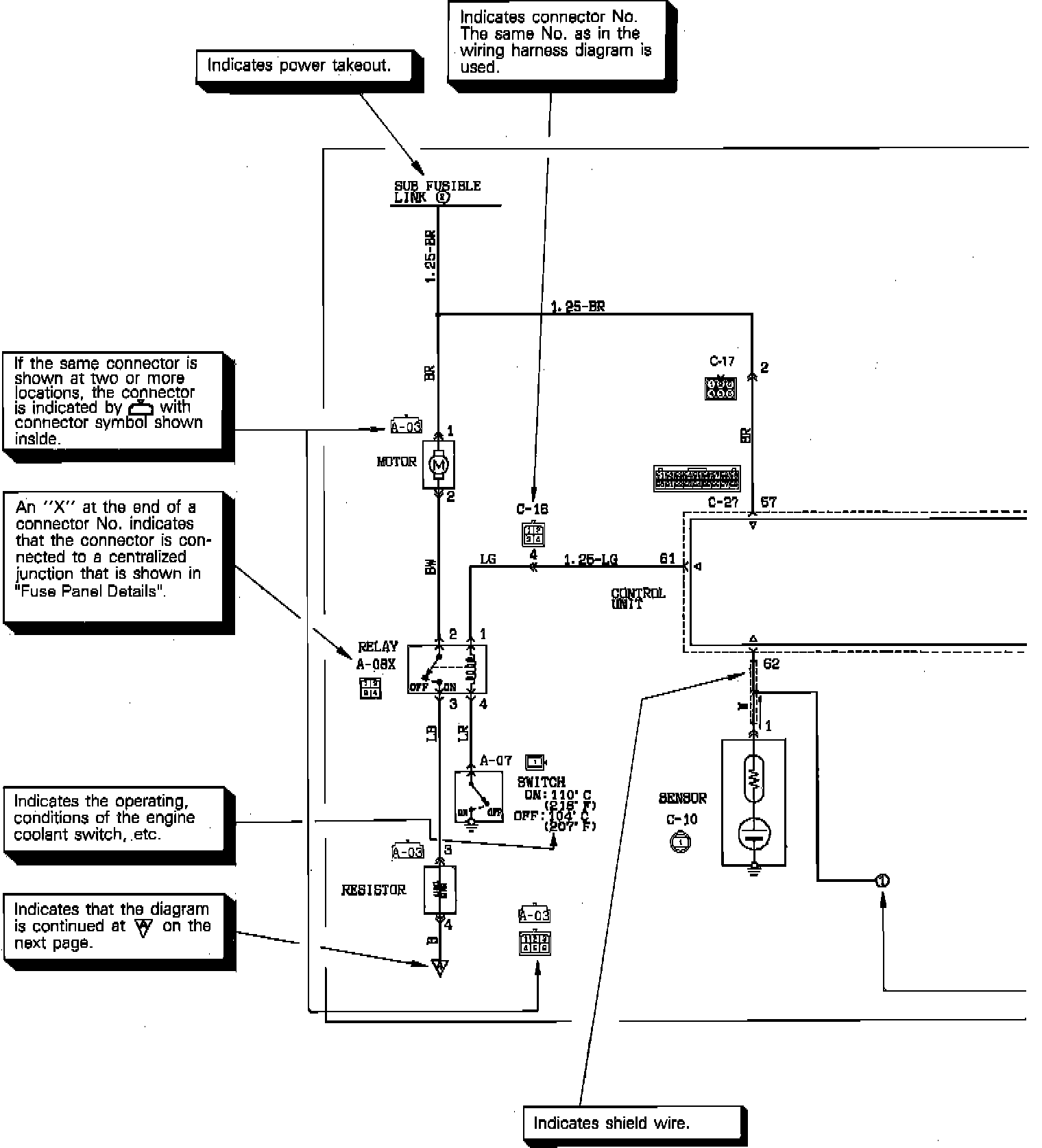

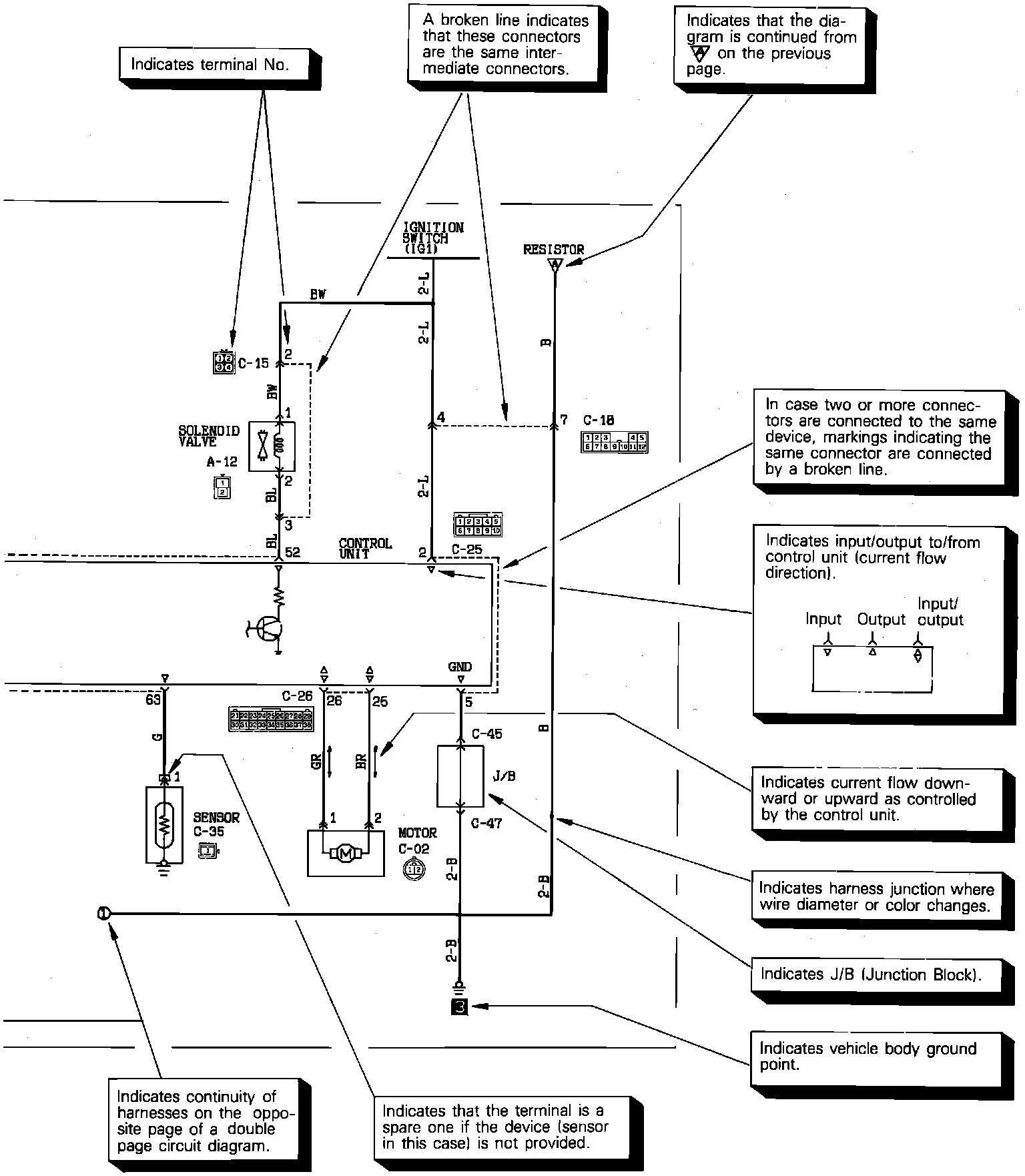

Key To Wiring Diagrams:
