Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
Auto Shutdown (ASD) Relay	Fig 1
Barometric Pressure Solenoid	Fig 2
Camshaft Position Sensor	Fig 3
Crankshaft Position Sensor	Fig 4
Distributor Connector (Harness Side)	Fig 5
Engine Coolant Temperature (ECT) Sensor	Fig 6
Evaporative Purge Solenoid	Fig 7
Flexible Fuel Sensor	Fig 8
Fuel Pump	Fig 9
Fuel Pump Relay	Fig 10
Idle Air Control (IAC) Motor	Fig 11
Ignition Coil	Fig 12
Injector Connector	Fig 13 & Fig 14
Intake Air Temperature (IAT) Sensor	Fig 15
Knock Sensor	Fig 16
Manifold Absolute Pressure (MAP) Sensor	Fig 17
Manifold Tuning Valve (MTV) Solenoid	Fig 18
Oxygen Sensor	Fig 19
Radiator Fan Relay	Fig 20 & Fig 21
Torque Converter Clutch Solenoid	Fig 22
Throttle Position Sensor (TPS)	Fig 23
Wastegate Solenoid	Fig 24
Powertrain Control Module (PCM)	Fig 25

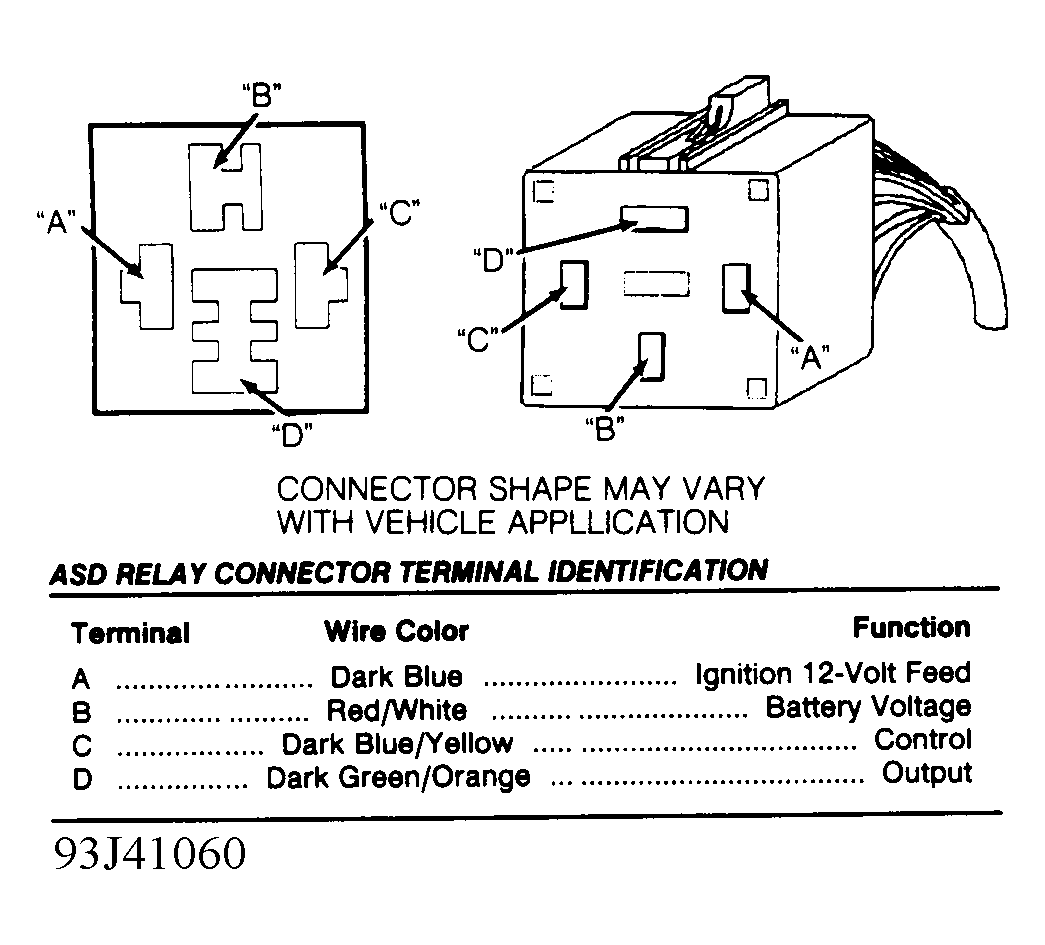

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Battery Voltage
C	Dark Blue/Yellow	Control
D	Dark Green/Orange	Output

Fig 1: Auto Shutdown (ASD) Relay Connector Terminal ID

Courtesy of CHRYSLER CORP.

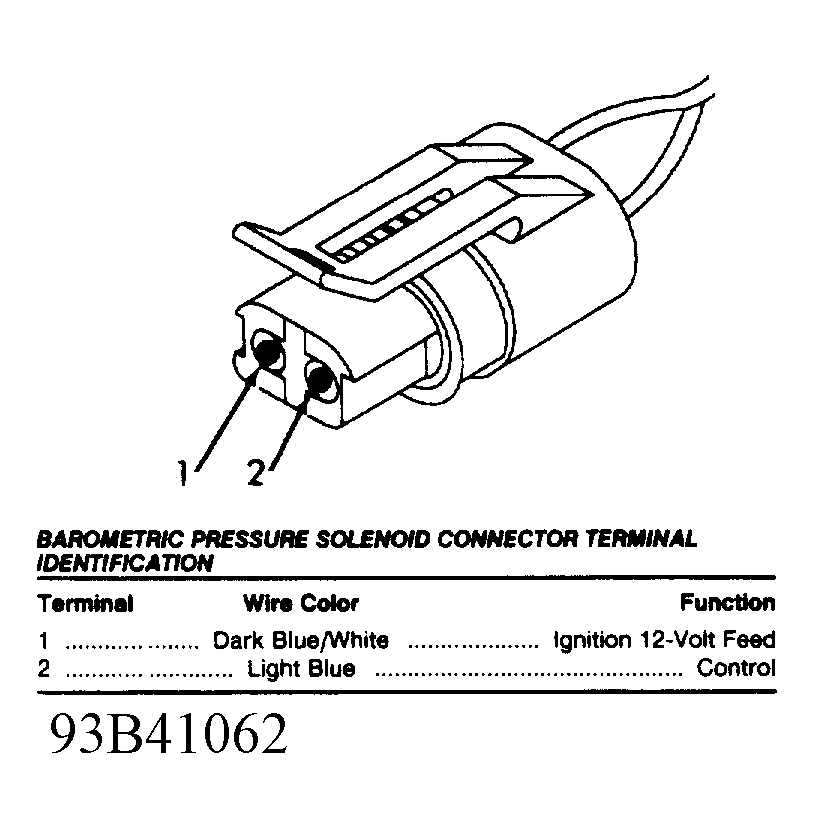

BAROMETRIC PRESSURE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue/White	Ignition 12-Volt Feed
2	Light Blue	Control

Fig 2: Barometric Pressure Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Tan/Yellow	Signal

Fig 3: Camshaft Position Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Gray/Black	Signal

Fig 4: Crankshaft Position Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

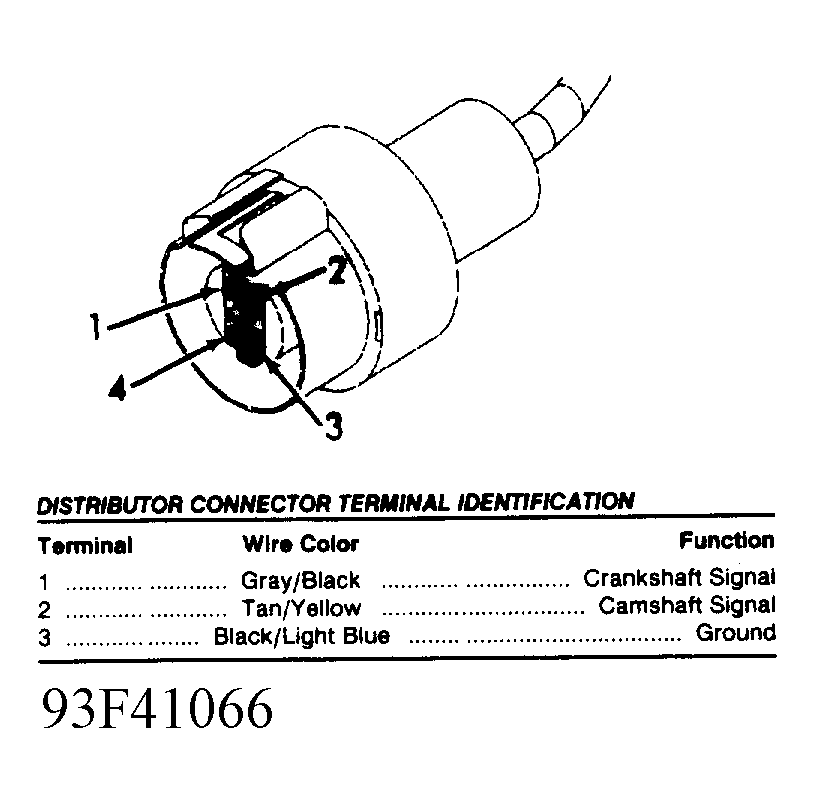

DISTRIBUTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Gray/Black	Crankshaft Signal
2	Tan/Yellow	Camshaft Signal
3	Black/Light Blue	Ground

Fig 5: Distributor Connector Terminal ID

Courtesy of CHRYSLER CORP.

ENGINE TEMP COOLANT (ECT) SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 6: Engine Coolant Temperature (ECT) Sens Connector Terminal ID

Courtesy of CHRYSLER CORP.

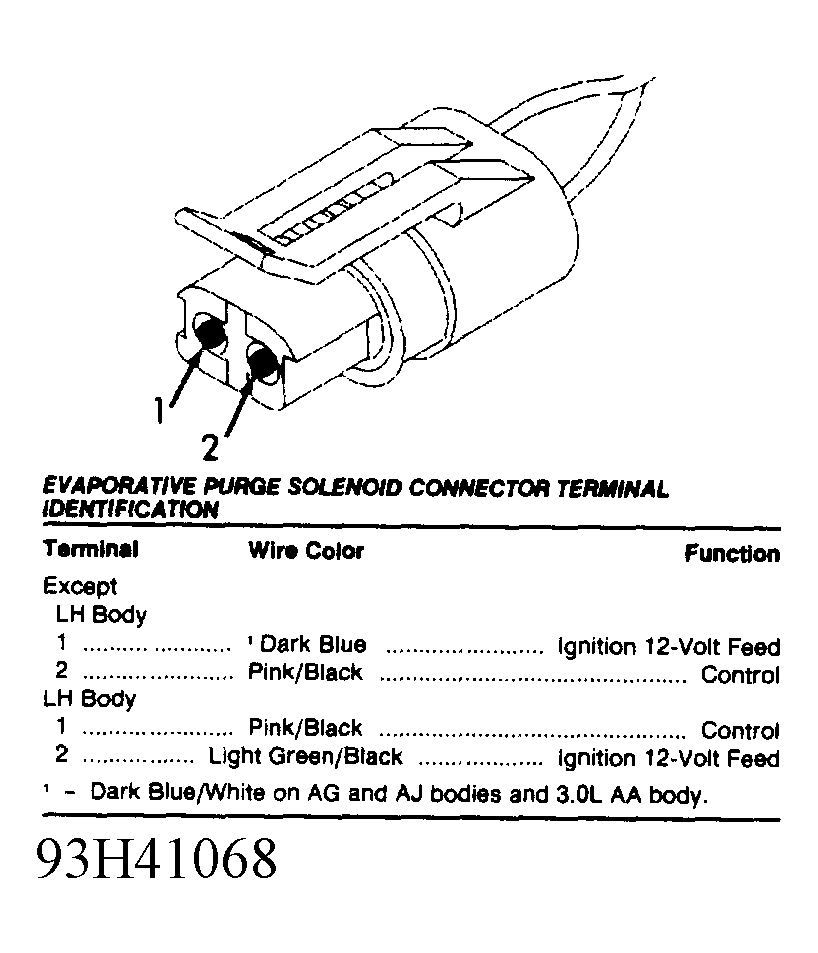

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Pink/Black	Control
2	Light Green/Black	Ignition 12-Volt Feed

Fig 7: Evaporative Purge Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

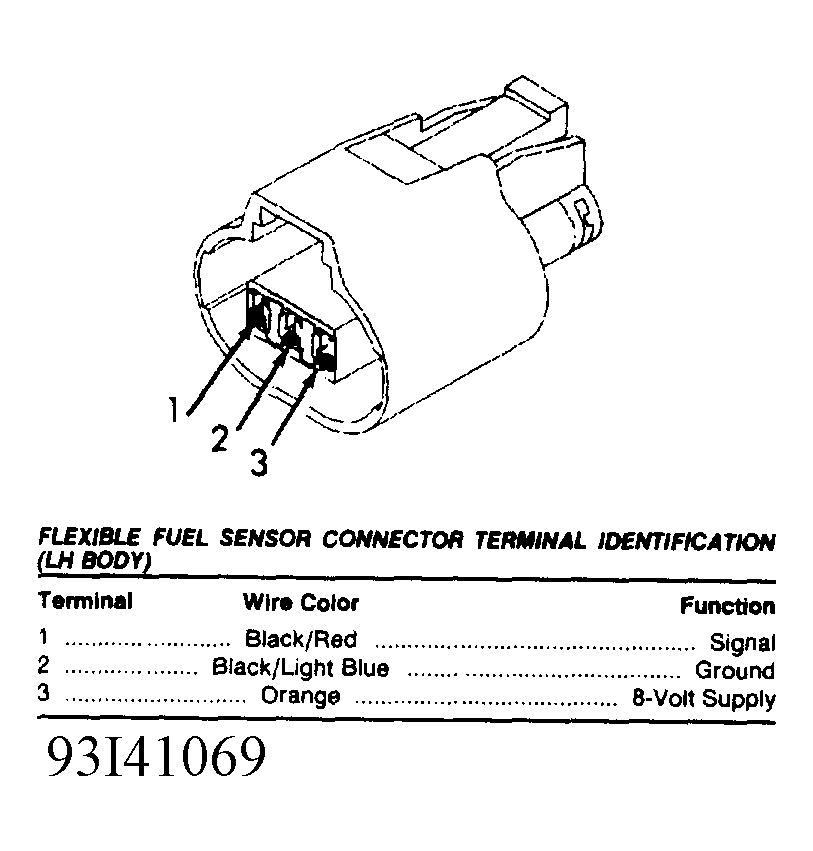

FLEXIBLE FUEL SENSOR CONNECTOR TERMINAL IDENTIFICATION (LH BODY)

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 8: Flexible Fuel Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

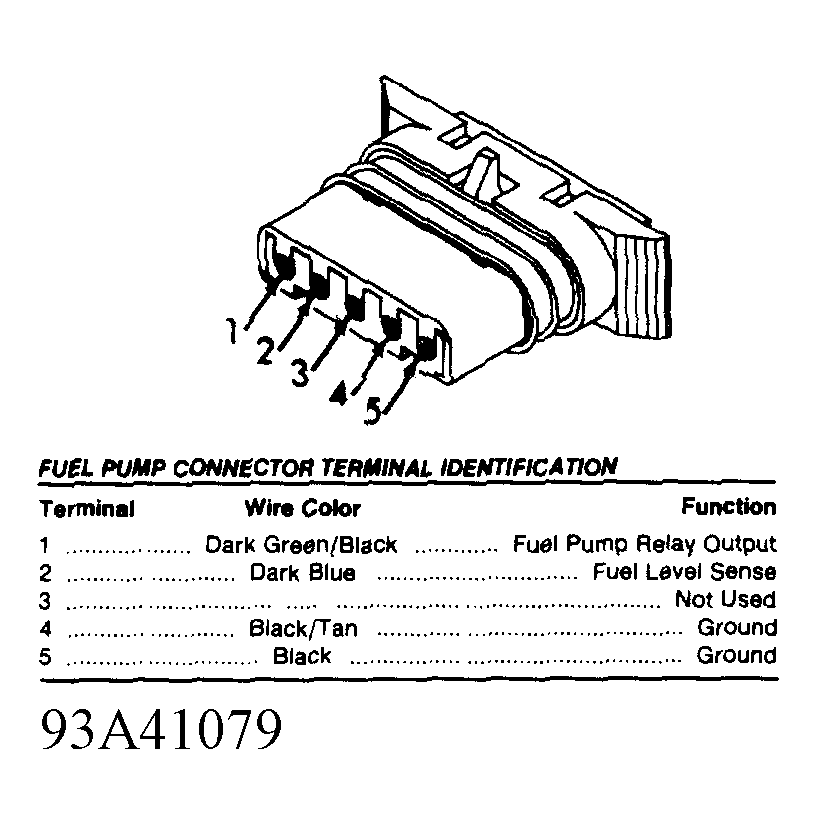

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Dark Blue	Fuel Level Sense
3	Not Used	Not Used
4	Black/Tan	Ground
5	Black	Ground

Fig 9: Fuel Pump Connector Terminal ID (LH Body)

Courtesy of CHRYSLER CORP.

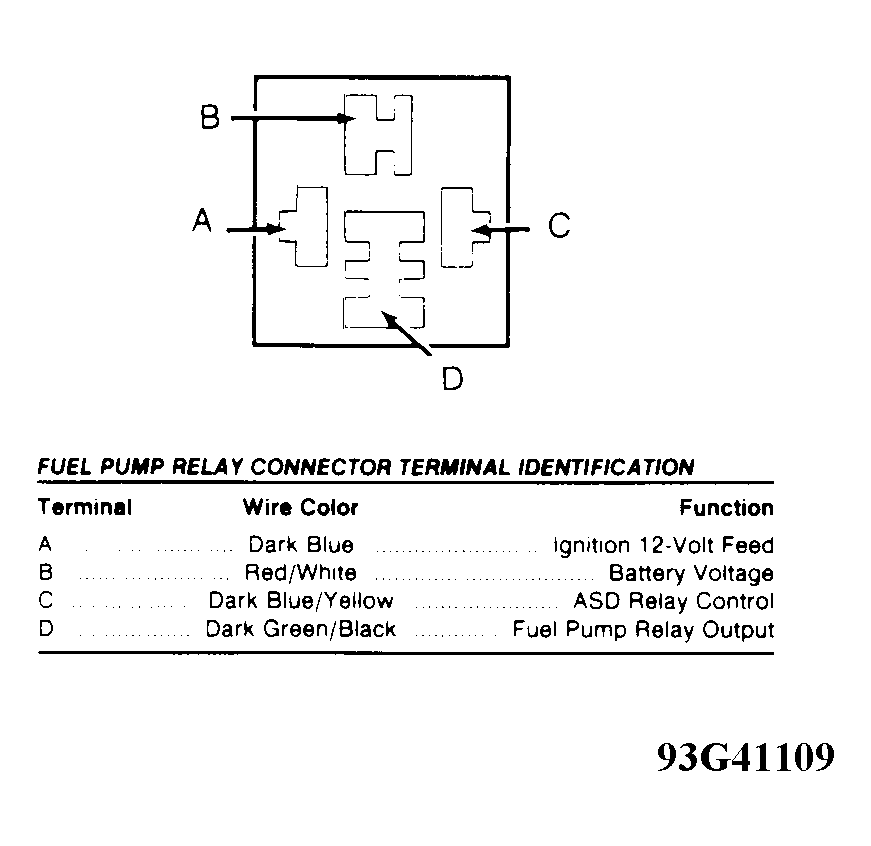

FUEL PUMP RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output

Fig 10: Fuel Pump Relay Connector Terminal ID (3.3L)

Courtesy of CHRYSLER CORP.

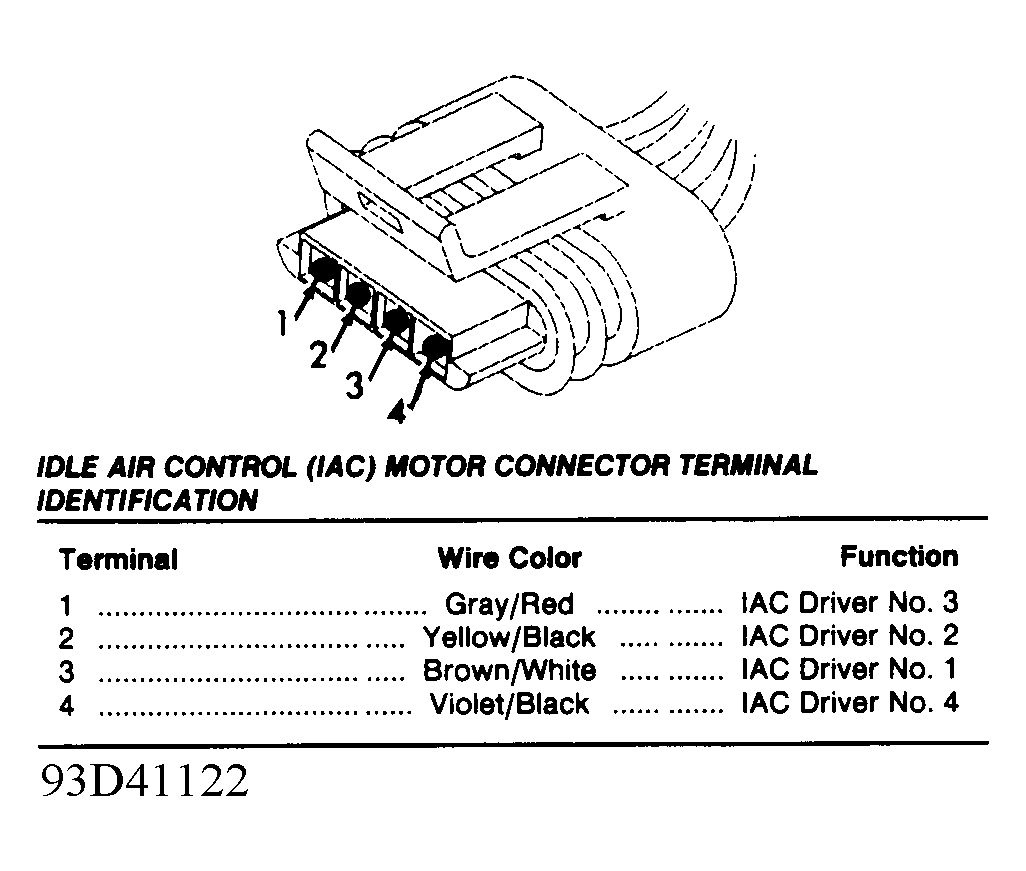

IDLE AIR CONTROL (IAC) MOTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 11: Idle Air Control (IAC) Motor Connector Terminal ID

Courtesy of CHRYSLER CORP.

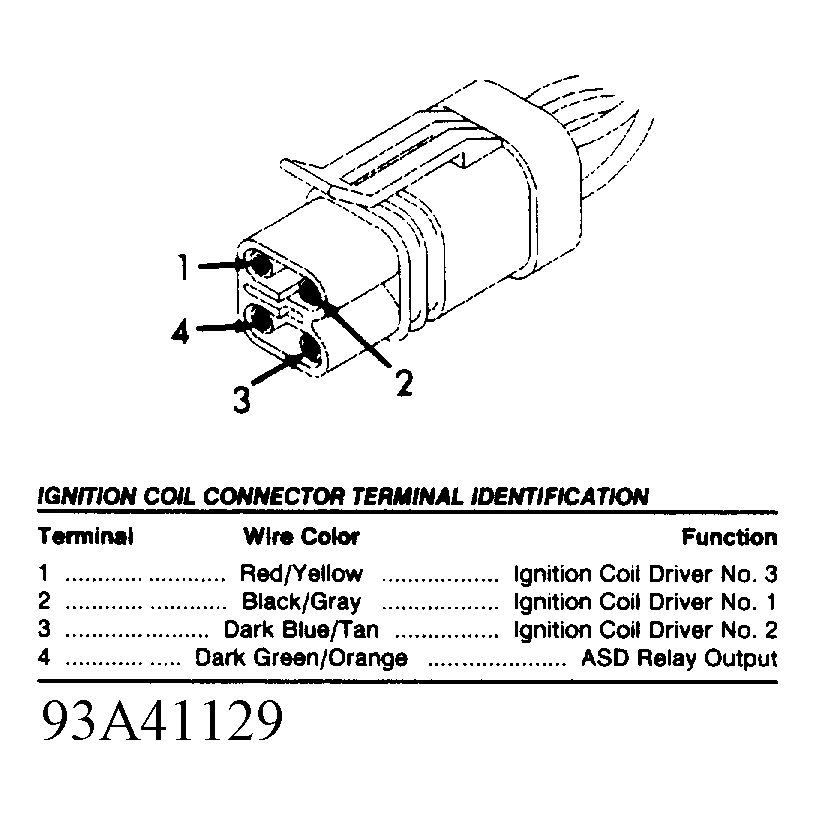

IGNITION COIL CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Red/Yellow	Ignition Coil Driver No. 3
2	Black/Gray	Ignition Coil Driver No. 1
3	Dark Blue/Tan	Ignition Coil Driver No. 2
4	Dark Green/Orange	ASD Relay Output

Fig 12: Ignition Coil Connector Terminal ID

Courtesy of CHRYSLER CORP.

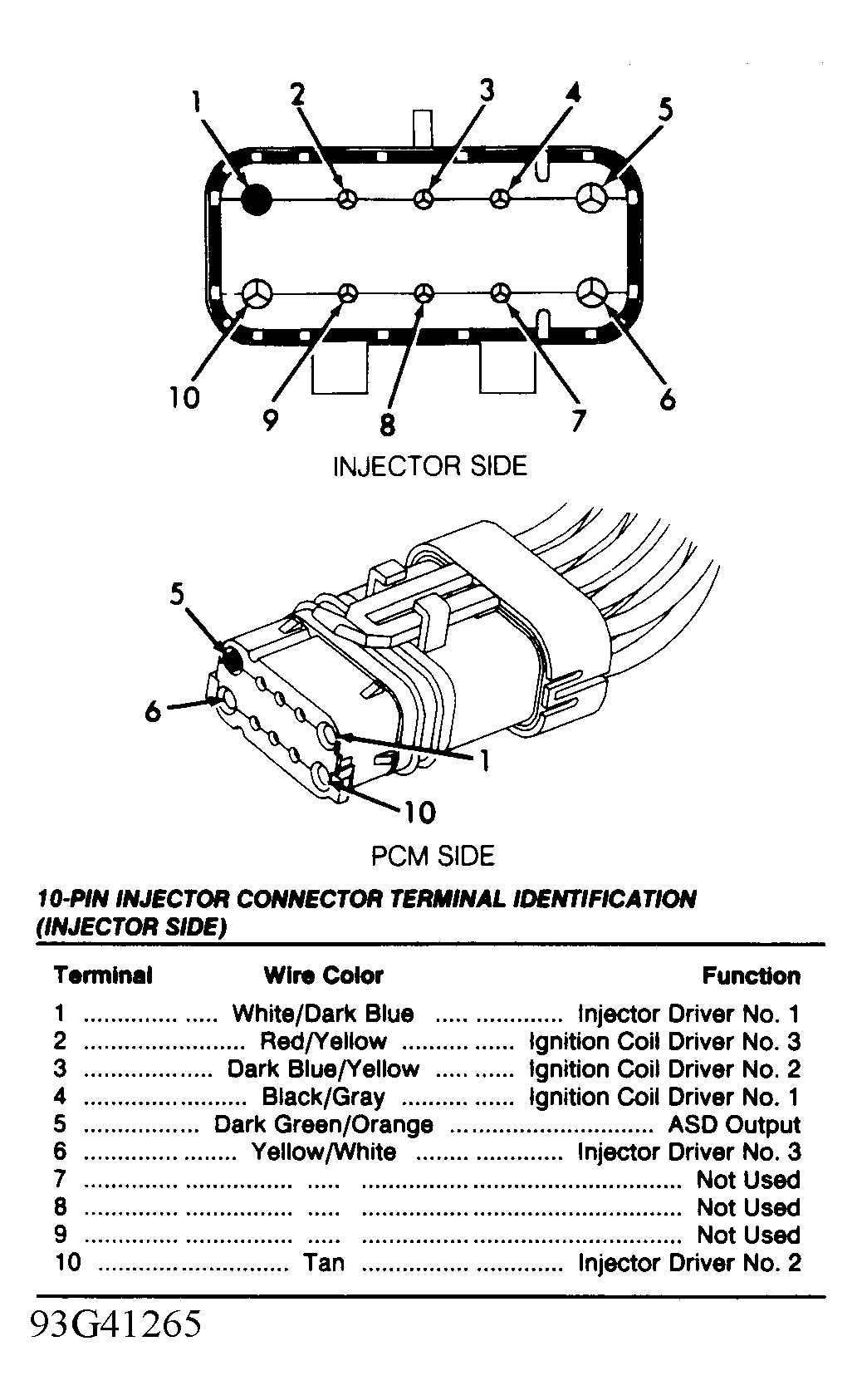

10-PIN INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal	Wire Color	Function
1	White/Dark Blue	Injector Driver No. 1
2	Red/Yellow	Ignition Coil Driver No. 3
3	Dark Blue/Yellow	Ignition Coil Driver No. 2
4	Black/Gray	Ignition Coil Driver No. 1
5	Dark Green/Orange	ASD Output
6	Yellow/White	Injector Driver No. 3
7	Not Used	Not Used
8	Not Used	Not Used
9	Not Used	Not Used
10	Tan	Injector Driver No. 2

Fig 13: 10-Pin Injector Connector Terminal ID (3.3L)

Courtesy of CHRYSLER CORP.

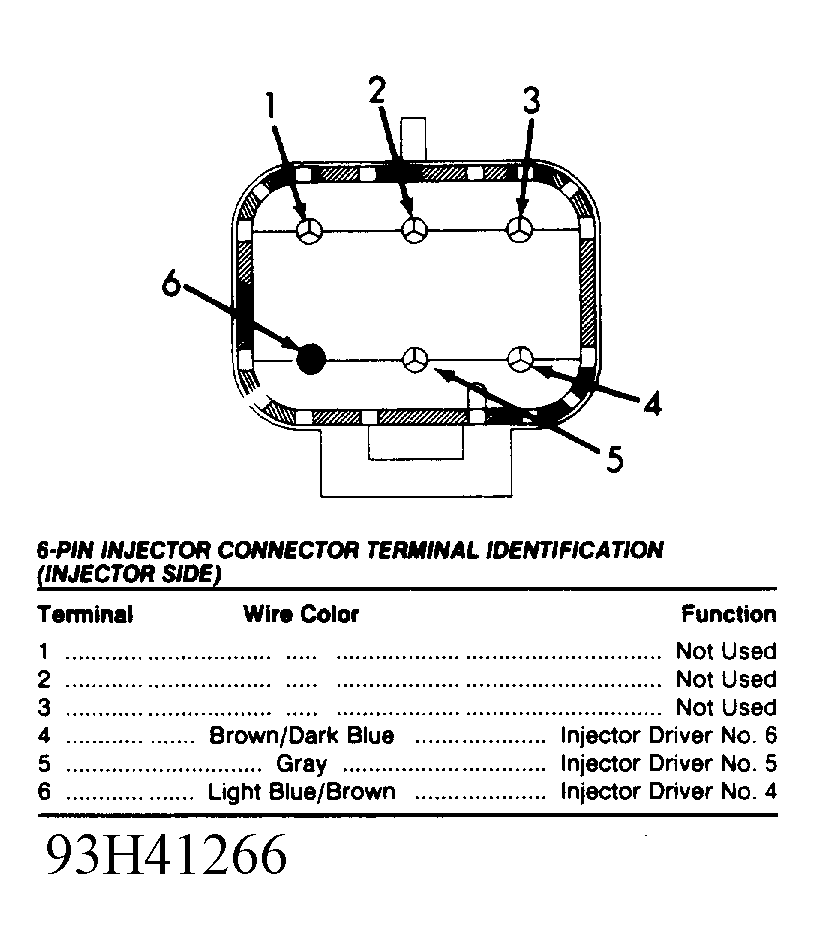

6-PIN INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal	Wire Color	Function
1	Not Used	Not Used
2	Not Used	Not Used
3	Not Used	Not Used
4	Brown/Dark Blue	Injector Driver No. 6
5	Gray	Injector Driver No. 5
6	Light Blue/Brown	Injector Driver No. 4

Fig 14: 6-Pin Injector Connector Terminal ID (3.3L)

Courtesy of CHRYSLER CORP.

INTAKE AIR TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground

Fig 15: Intake Air Temperature (IAT) Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

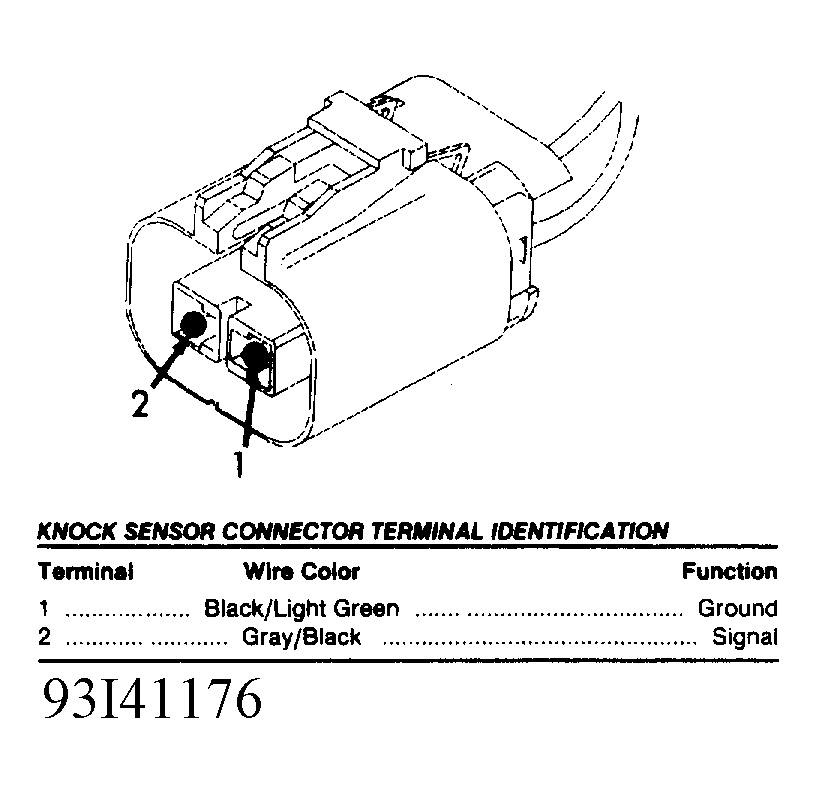

KNOCK SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Green	Ground
2	Gray/Black	Signal

Fig 16: Knock Sensor Connector Terminal ID (LH Body)

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

Fig 17: Manifold Absolute Pressure (MAP) Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

MANIFOLD TUNING VALVE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Violet/White	Control
2	Light Green/Black	Ignition 12-Volt Feed

Fig 18: Manifold Tuning Valve (MTV) Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

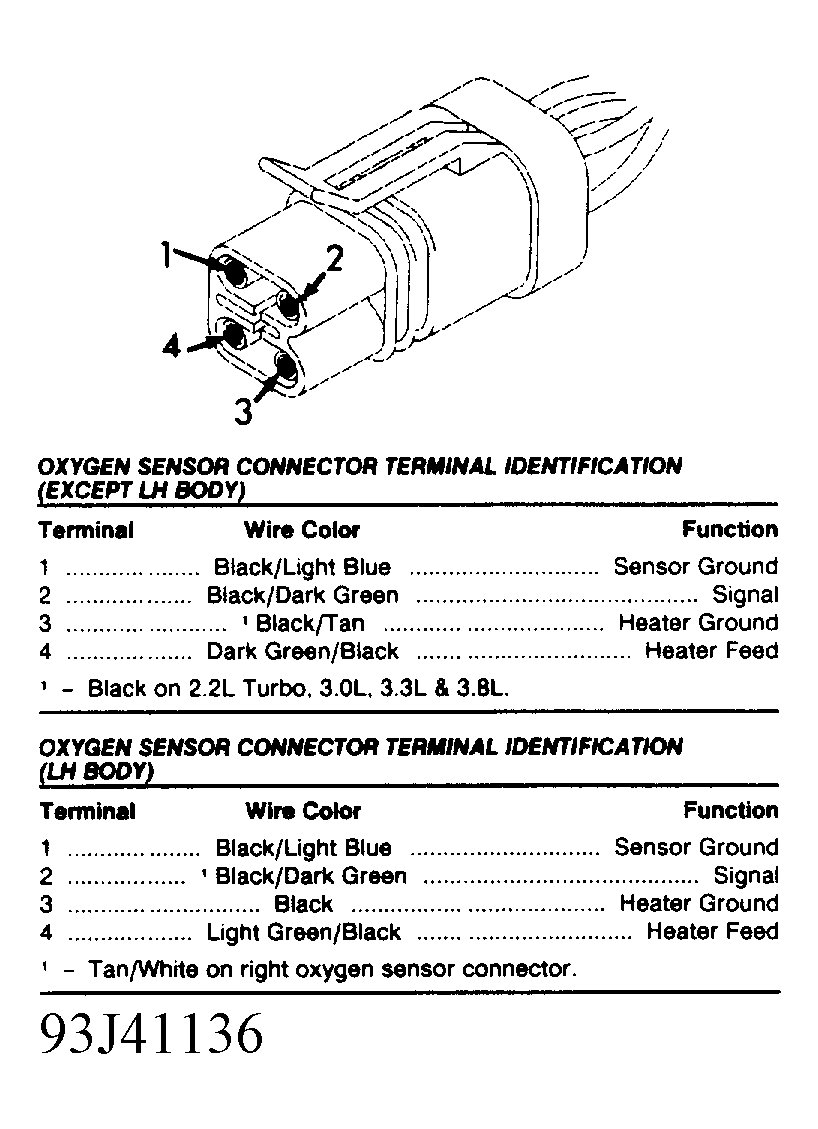

OXYGEN SENSOR CONNECTOR TERMINAL IDENTIFICATION (LH BODY)

Terminal

Wire Color

Function

Black/Light Blue

Sensor Ground

⁽¹⁾ Black/Dark Green

Signal

Black

Heater Ground

Light Green/Black

Heater Feed

⁽¹⁾	Tan/White on right oxygen sensor connector.

Fig 19: Oxygen Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

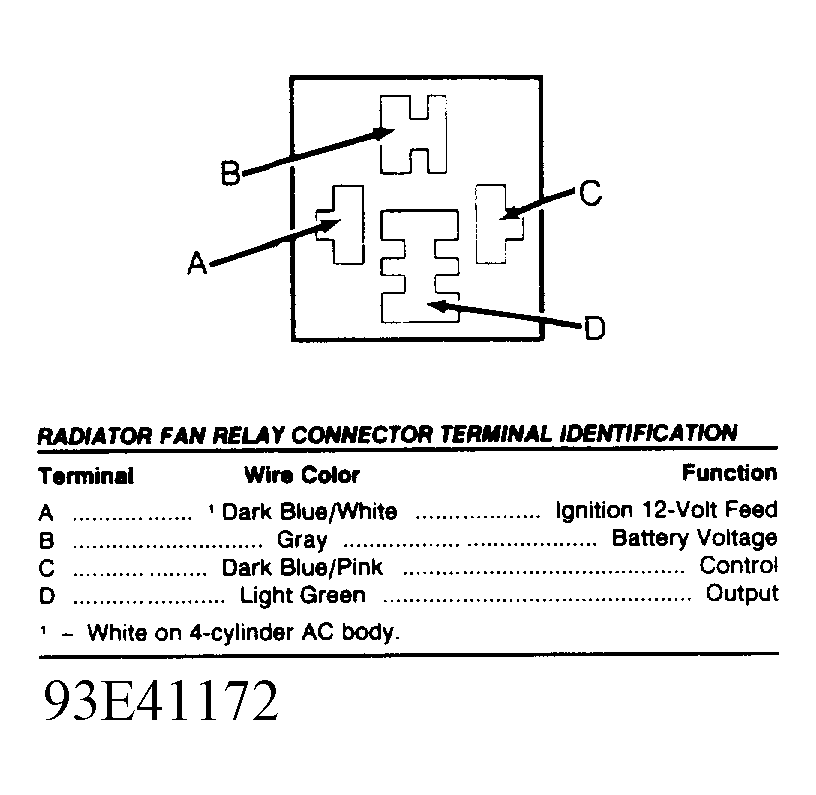

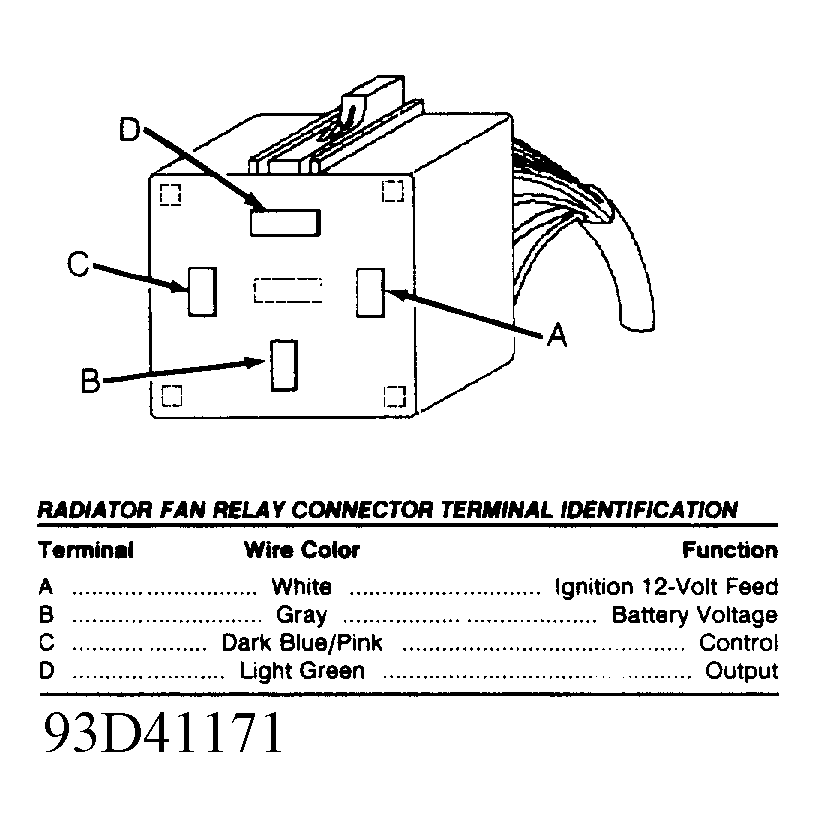

RADIATOR FAN RELAY CONNECTOR TERMINAL IDENTIFICATION (3.3L)

Terminal	Wire Color	Function
A	White	Ignition 12-Volt Feed
B	Gray	Battery Voltage
C	Dark Blue/Pink	Control
D	Light Green	Output

Fig 20: Radiator Fan Relay Connector Terminal ID (3.3L)

Courtesy of CHRYSLER CORP.

RADIATOR FAN RELAY CONNECTOR TERMINAL IDENTIFICATION (3.5L)

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Gray	Battery Voltage
C	Dark Blue/Pink	Control
D	Light Green	Output

Fig 21: Radiator Fan Relay Connector Terminal ID (3.5L)

Courtesy of CHRYSLER CORP.

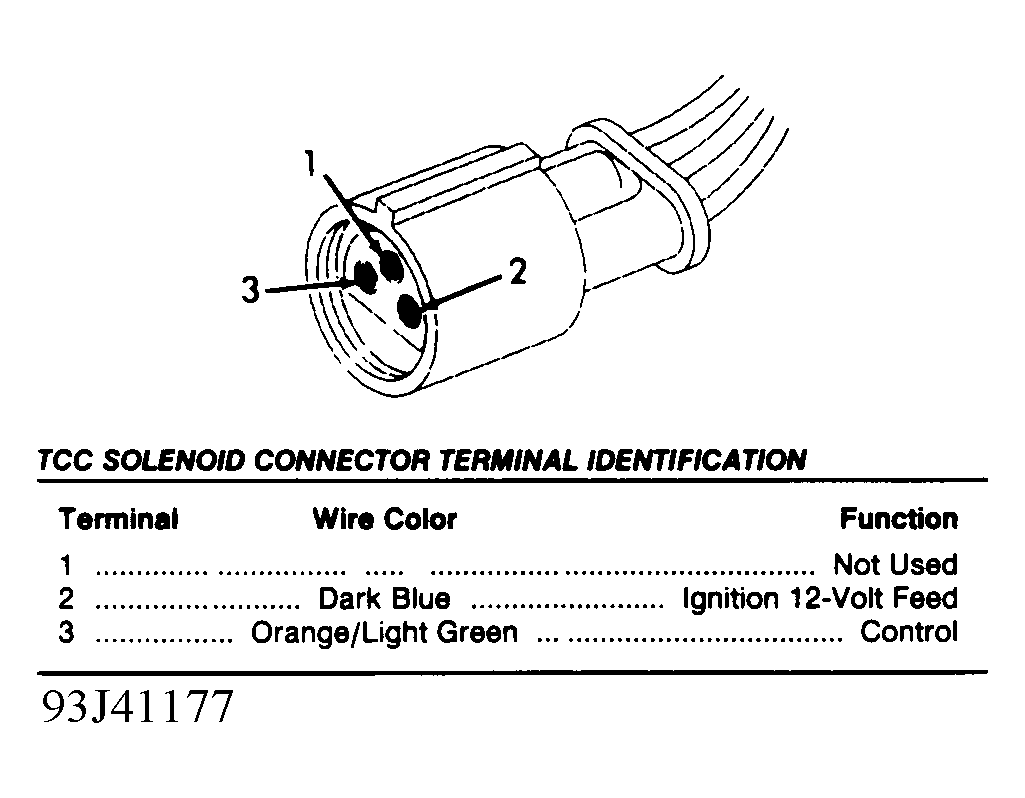

TORQUE CONVERTER CLUTCH SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Not Used	Not Used
2	Dark Blue	Ignition 12-Volt Feed
3	Orange/Light Green	Control

Fig 22: Torque Converter Clutch Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

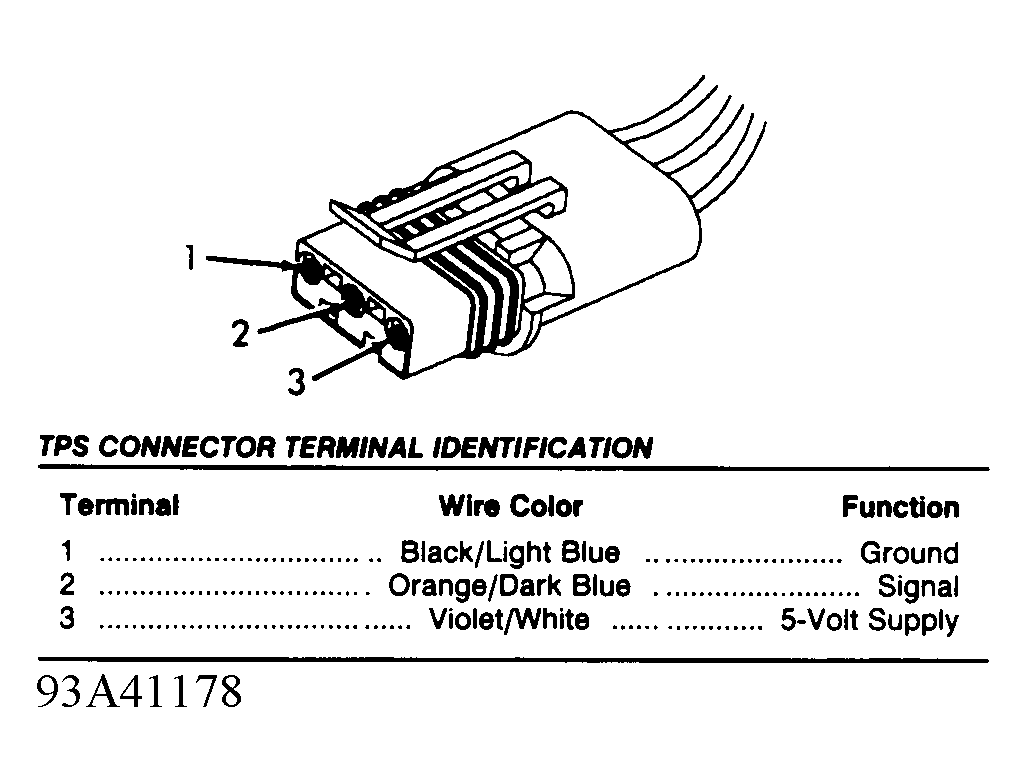

THROTTLE POSITION SENSOR (TPS) CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 23: Throttle Position Sensor (TPS) Connector Terminal ID

Courtesy of CHRYSLER CORP.

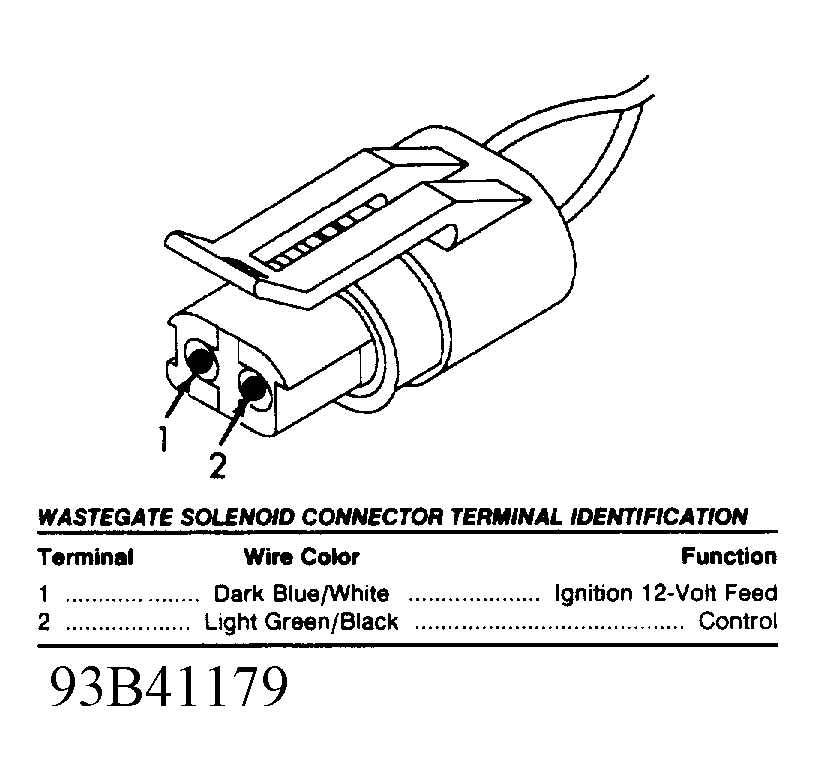

WASTEGATE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue/White	Ignition 12-Volt Feed
2	Light Green/Black	Control

Fig 24: Wastegate Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

Fig 25: Powertrain Control Module (PCM) Connector Terminal ID

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and energy systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.
