Buckle Switch

For test procedures, see Fig 1 .

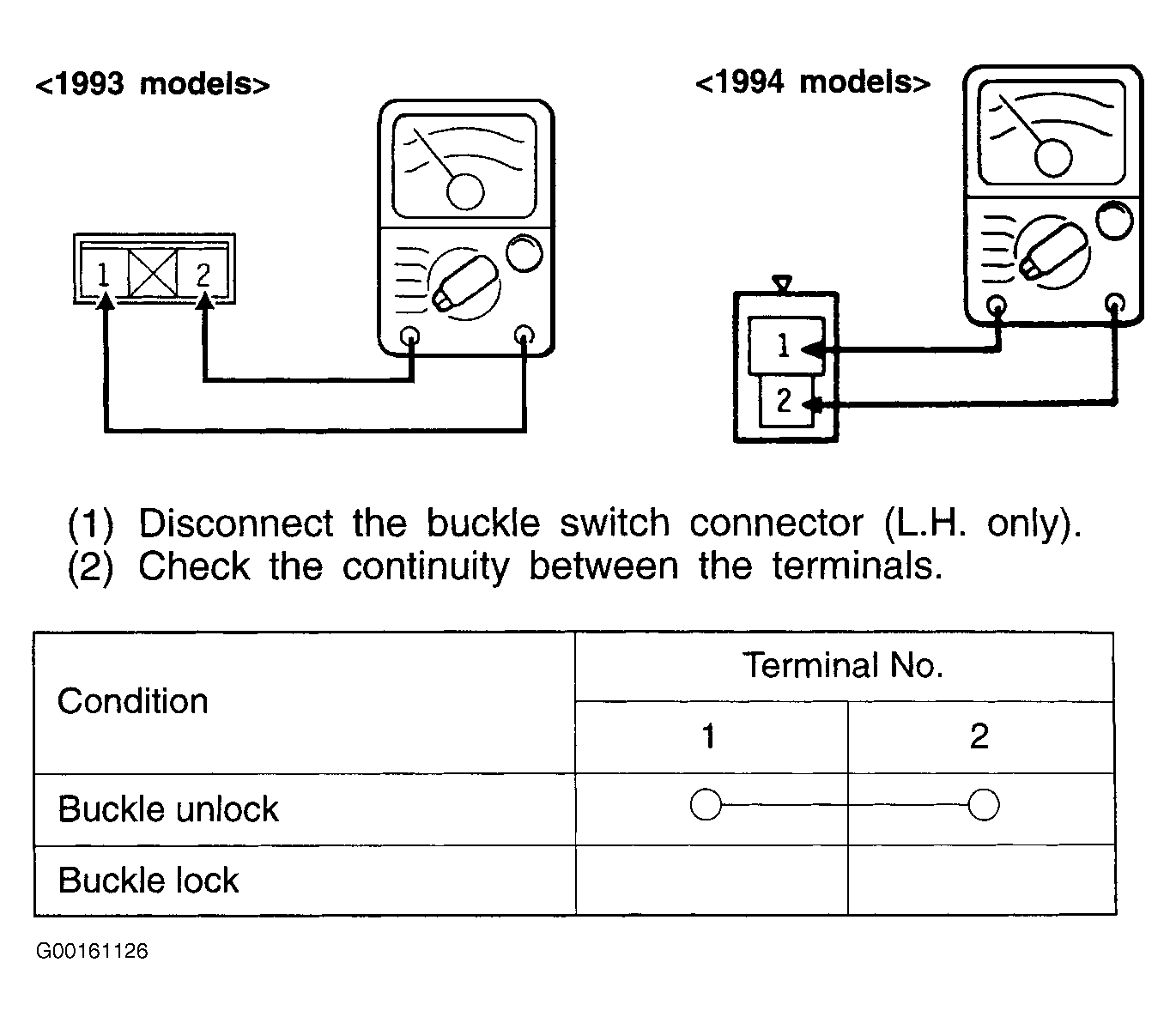

Fig 1: Testing Buckle Switch
G00161126Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
