Terminal Identification

NOTE: The following terminals are shown as viewed from component side of connector.

TERMINAL IDENTIFICATION DIRECTORY

Connector	See Figure
Airflow Sensor	Fig 1
CKP/CMP Sensor	Fig 2
Coolant Temperature Sensor	Fig 3
ECM	Fig 4
EGR Temperature Sensor	Fig 5
Fuel Injector	Fig 6
Fuel Pump	Fig 7 and Fig 8
Idle Air Control Valve Position Sensor	Fig 8
Idle Speed Control Motor & Position Sensor	Fig 10 and Fig 11
Ignition Coil	Fig 12
Induction Control Valve Position Sensor	Fig 13
Knock Sensor	Fig 14
MAP Sensor	Fig 15
MFI Relay	Fig 16
Oxygen Sensor (O2S)	Fig 17
Throttle Position Sensor	Fig 18
Traction Control Vacuum Solenoid	Fig 19
Traction Control Vent Solenoid	Fig 20
Transaxle Control Module	Fig 21

Fig 1: Identifying Airflow Sensor Terminals

G50J02536

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying CKP/CMP Sensor Terminals

G94G44319

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Engine Coolant Temperature (ECT) Sensor Terminal ID

G94H45218

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying ECM Terminals

G93F45109

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Identifying EGR Temperature Sensor Terminals

G93J80258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Identifying Fuel Injector Terminals

G93B45113

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

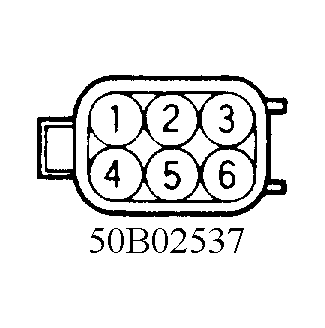

Fig 7: Identifying Fuel Pump Terminals (AWD)

G50B02537

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

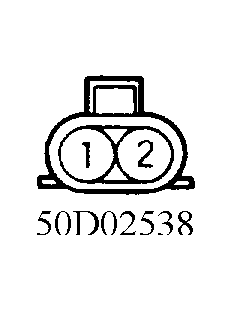

Fig 8: Identifying Fuel Pump Terminals (FWD)

G50D02538

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Idle Air Control Valve Position Sensor Terminal ID

G93E80261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Idle Speed Control Motor Sensor Terminal ID

G50A02532

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Idle Speed Control Position Sensor Terminal ID

G50C02533

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Identifying Ignition Coil Terminals

G50H02540

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Induction Control Valve Position Sensor Terminal ID

G93H80264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Identifying Knock Sensor Terminals

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Identifying Map Sensor Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Identifying MFI Relay Terminals

G94H44559

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Identifying Oxygen Sensor (O2S) Terminals

G94F44201

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Identifying Throttle Position Sensor Terminals

G93C80269

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Identifying Traction Control Vacuum Solenoid Terminals

G93F80270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 20: Identifying Traction Control Vent Solenoid Terminals

G93G80271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

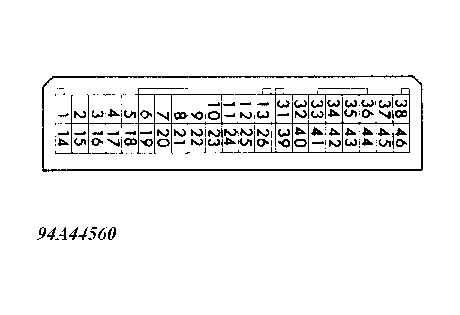

Fig 21: Identifying Transaxle Control Module Terminals

G94A44560
