Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
A/C Relay Block In left rear corner of engine bay. See Figure .
Fusible Links
Main Next to battery.
Sub On relay block, in engine bay.

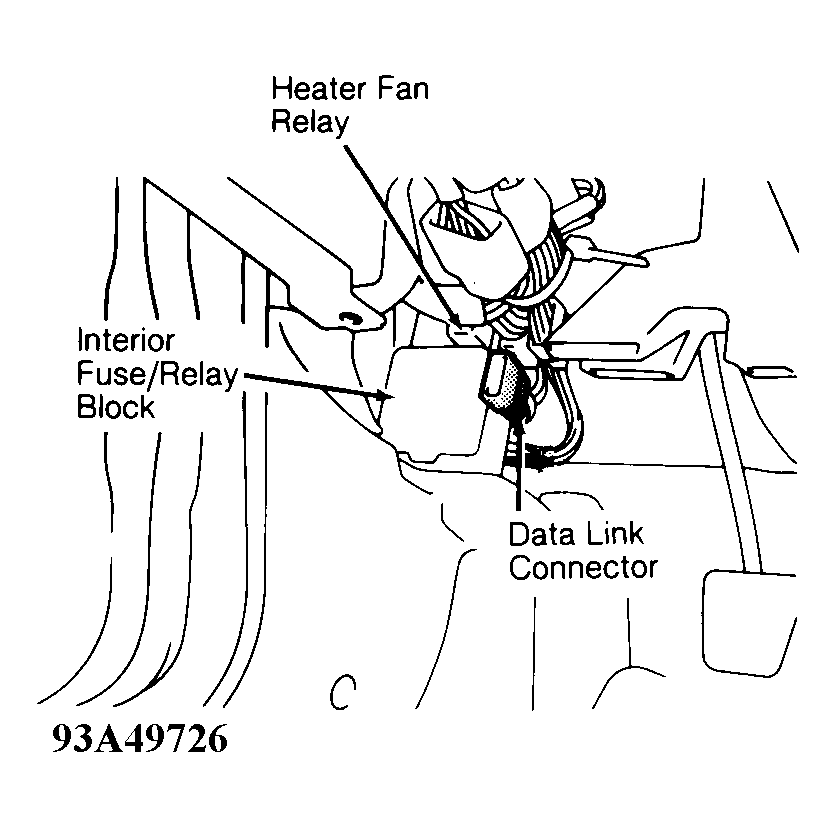

Interior Fuse Relay/Block Under left side of dash. See Figure .
Relay Block In right side of engine bay, on inner fender panel. See Figure .
