Test Procedure

Remove ECM to access ECM connector terminals (if necessary). See Fig 1 -Fig 3 . With ECM connectors connected, backprobe terminal specified in charts. See Fig 4 -Fig 9 . Measure voltage between terminal specified in chart and ECM connector terminal No. 106 (ground).
If voltmeter shows any deviation from standard value, check corresponding sensor, actuator and related wiring. After repair or replacement, recheck to ensure problem is corrected.

Fig 1: ECM Connector Terminal ID

G90B15363

Courtesy of CHRYSLER CORP.

Fig 2: ECM Connector Terminal ID

G90C15364

Courtesy of CHRYSLER CORP.

Fig 3: ECM Connector Terminal ID

G90D15365

Courtesy of CHRYSLER CORP.

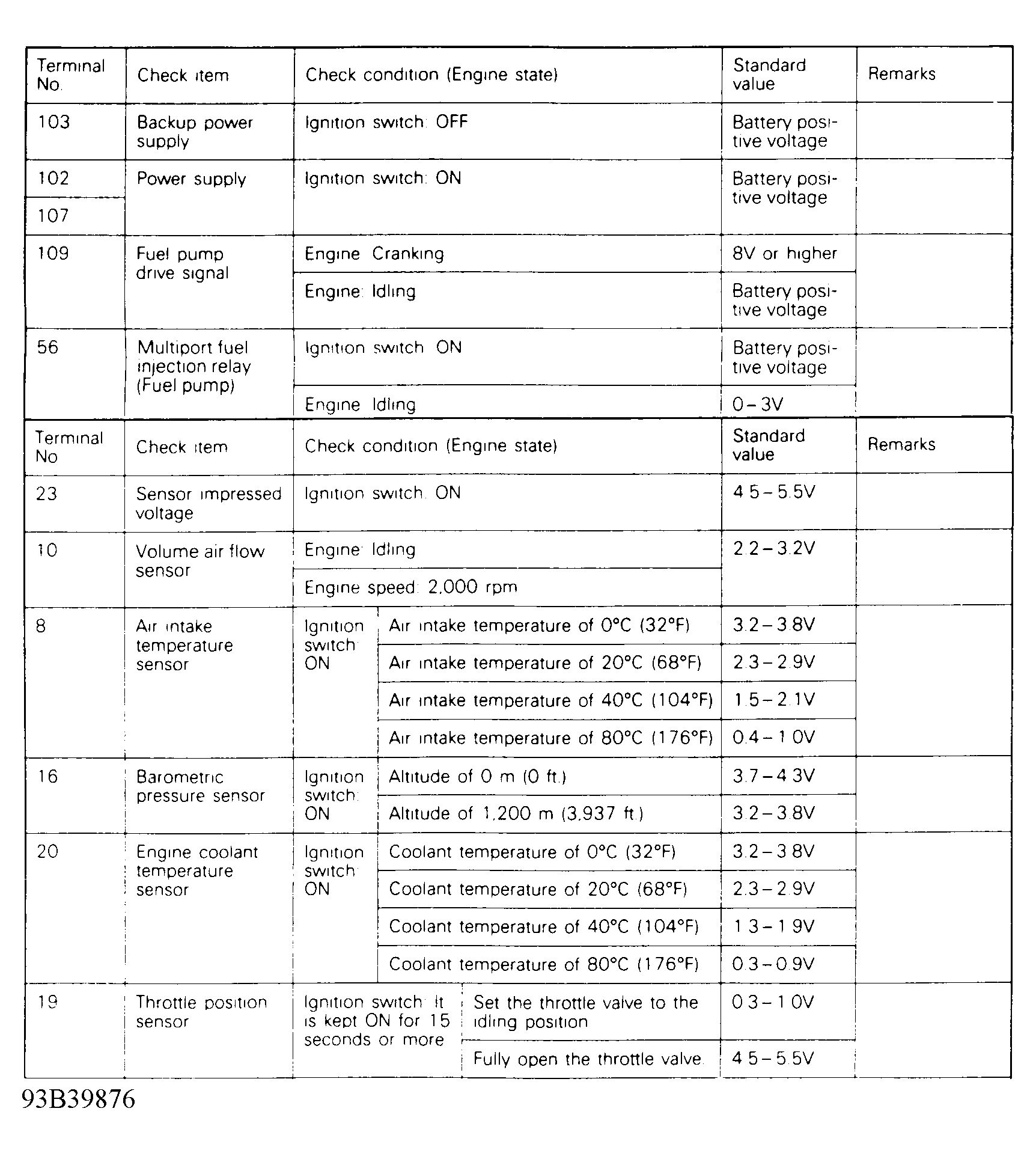

Fig 4: Checking ECM Pin Voltage (1.8L - 1 Of 3)

G93B39876

Courtesy of CHRYSLER CORP.

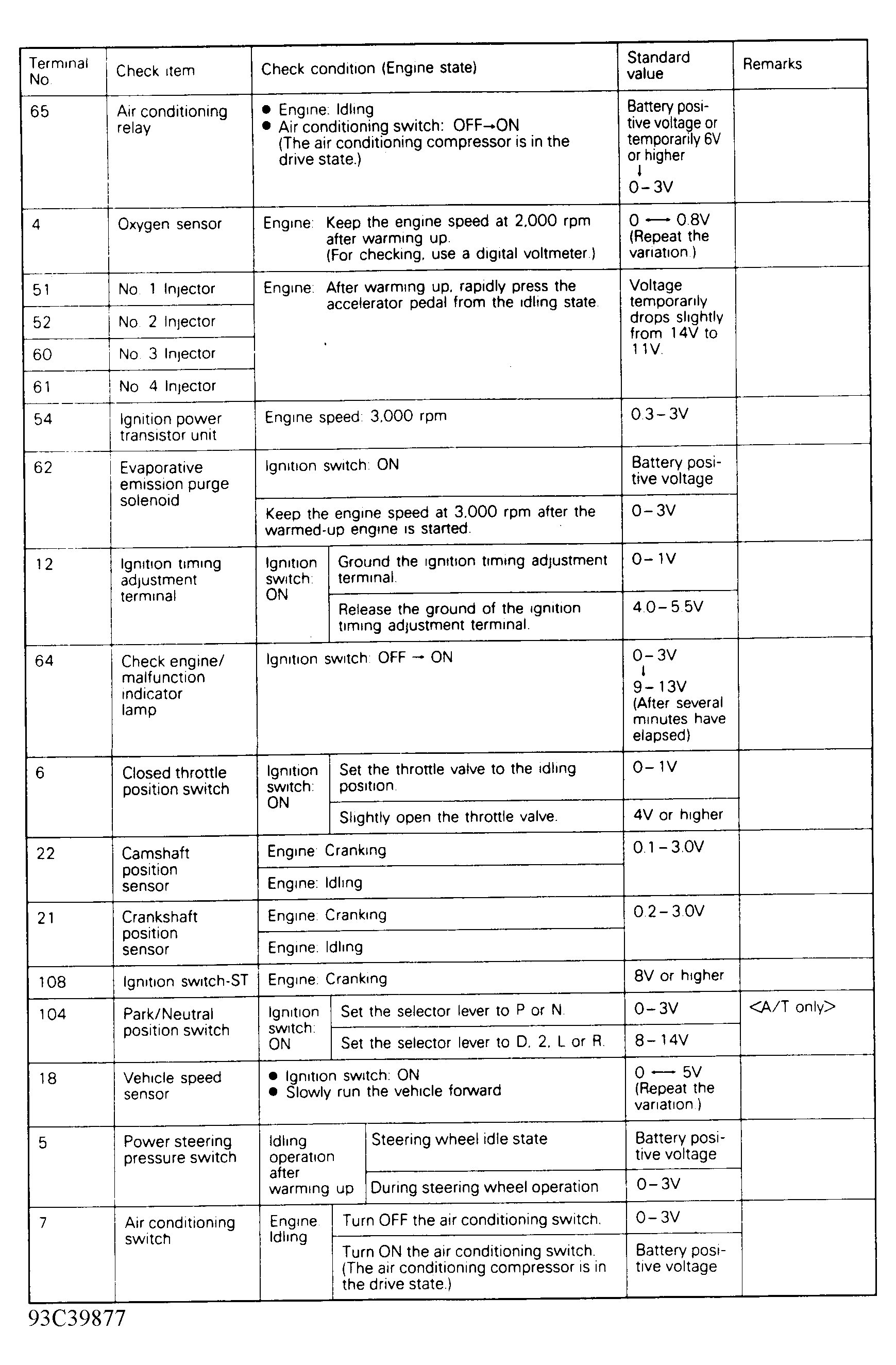

Fig 5: Checking ECM Pin Voltage (1.8L - 2 Of 3)

G93C39877

Courtesy of CHRYSLER CORP.

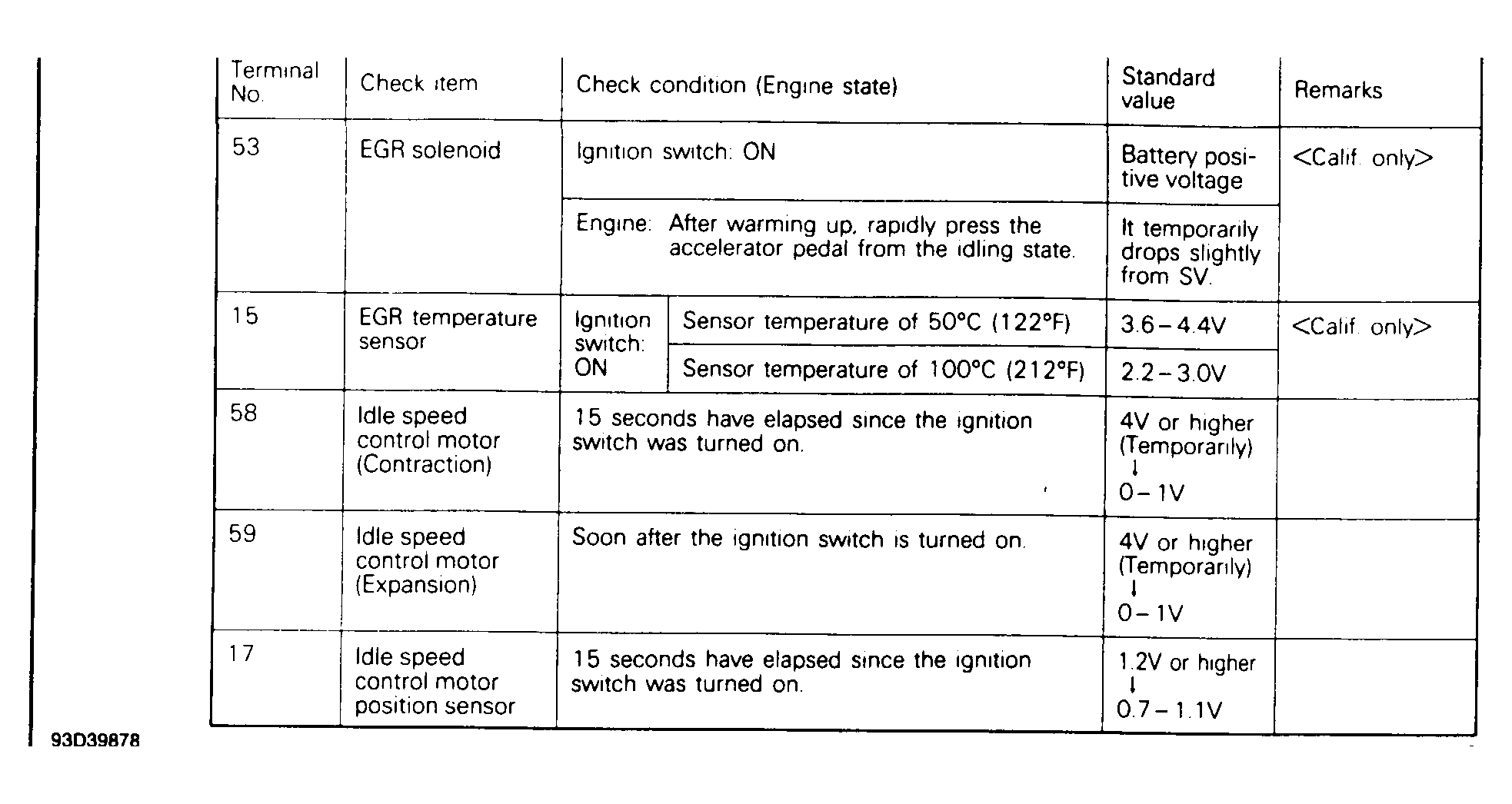

Fig 6: Checking ECM Pin Voltage (1.8L - 3 Of 3)

G93D39878

Courtesy of CHRYSLER CORP.

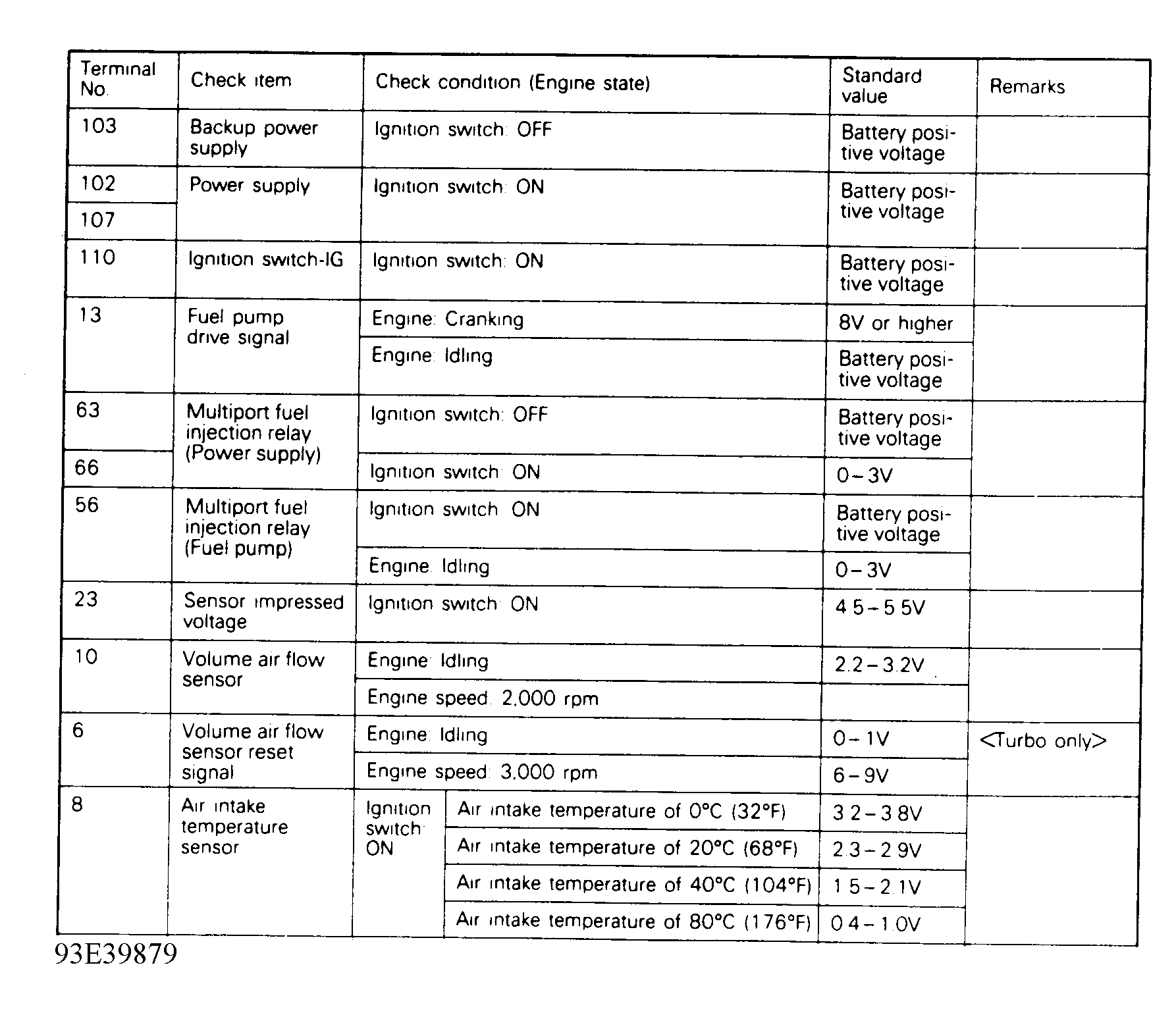

Fig 7: Checking ECM Pin Voltage (2.0L - 1 Of 3)

G93E39879

Courtesy of CHRYSLER CORP.

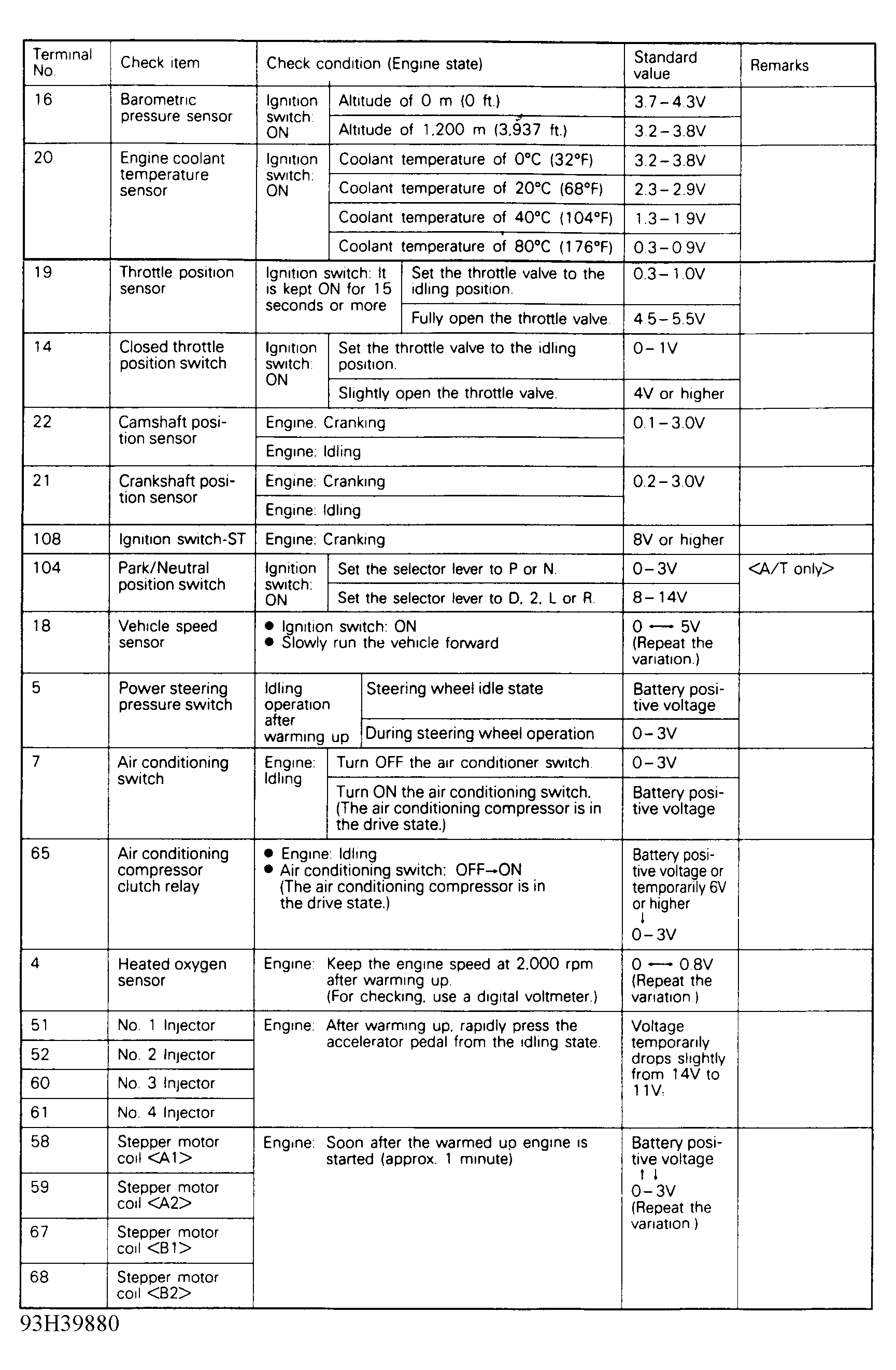

Fig 8: Checking ECM Pin Voltage (2.0L - 2 Of 3)

G93H39880

Courtesy of CHRYSLER CORP.

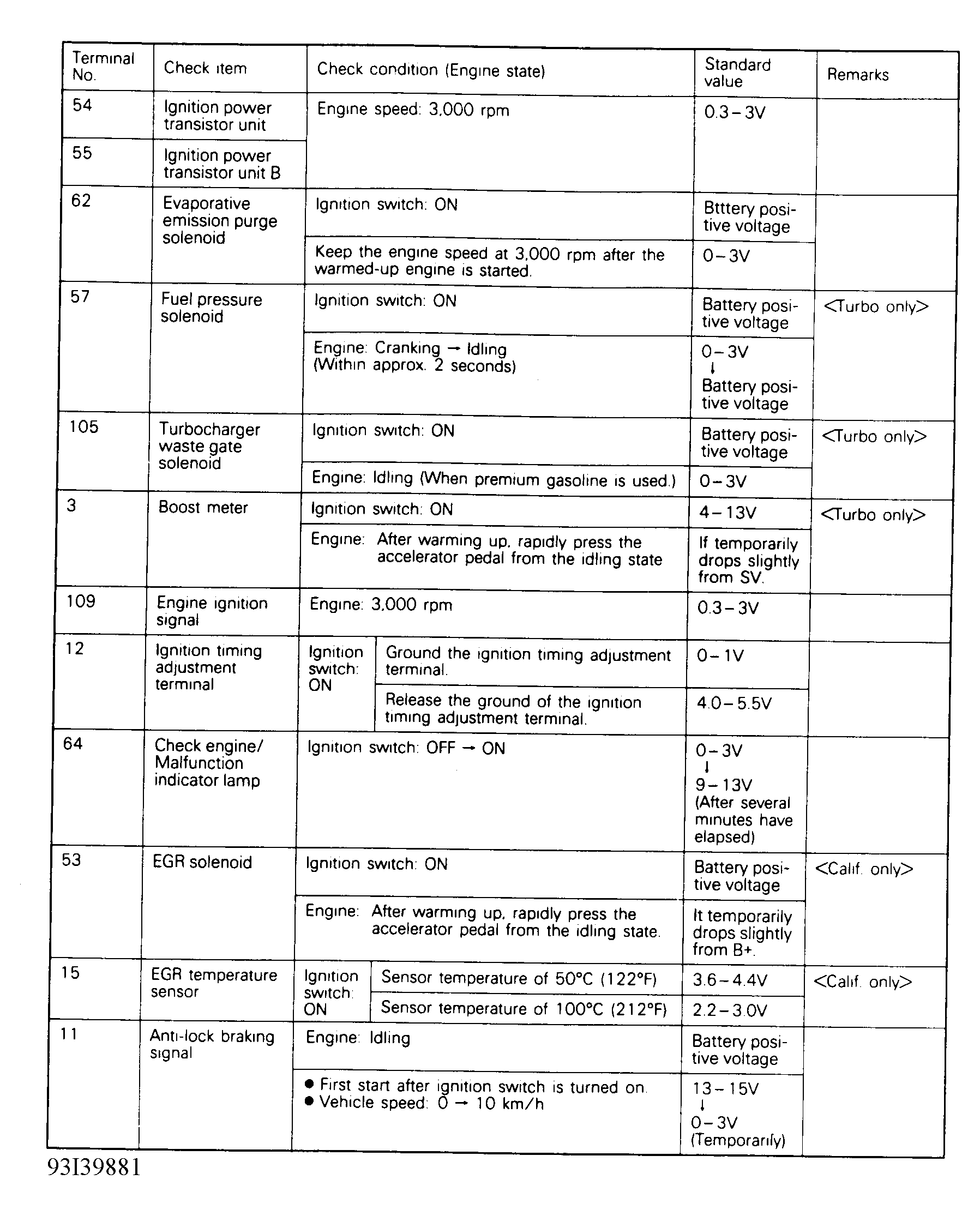

Fig 9: Checking ECM Pin Voltage (2.0L - 3 Of 3)

G93I39881

Courtesy of CHRYSLER CORP.
