Harness Inspection

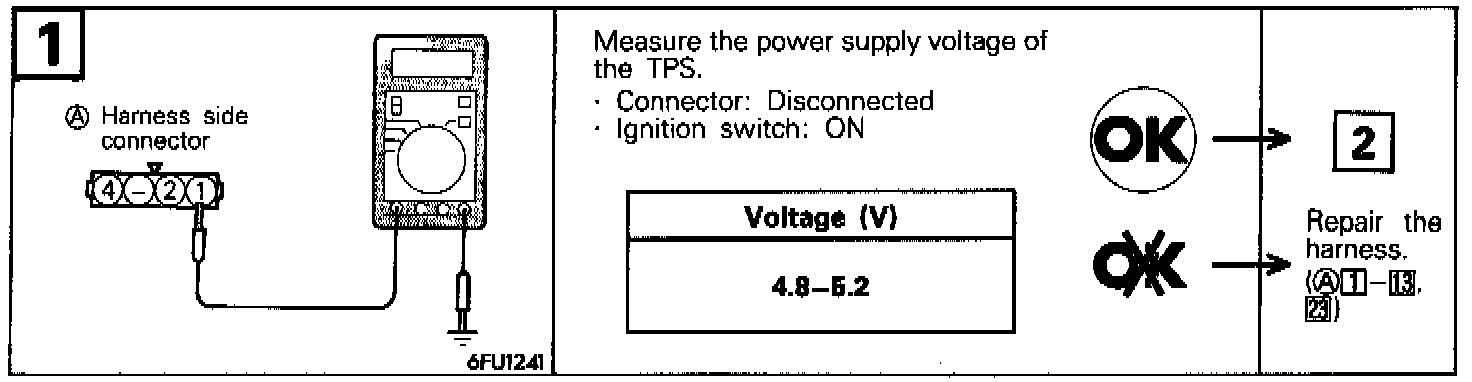

Step 1

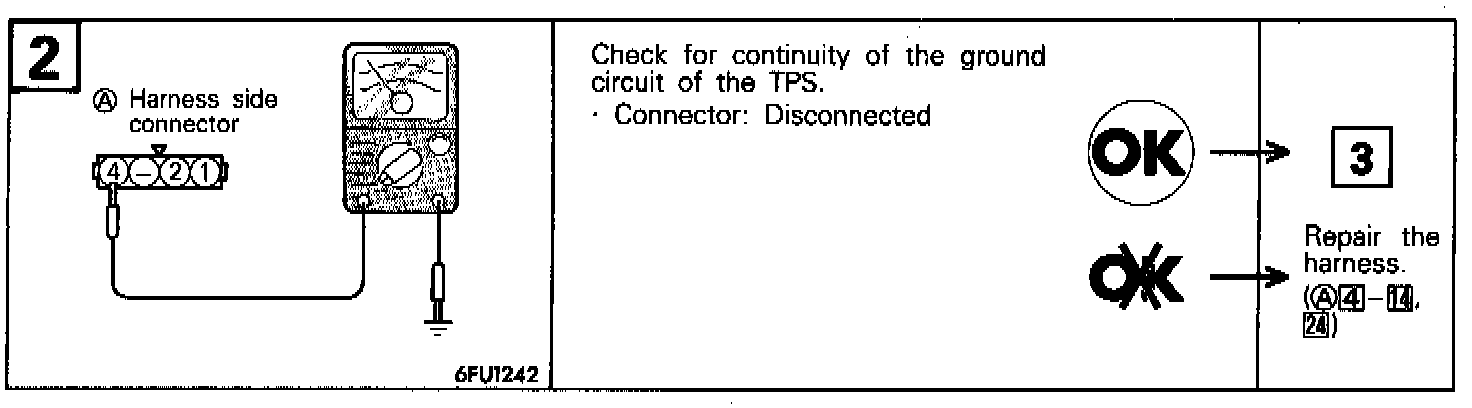

Step 2

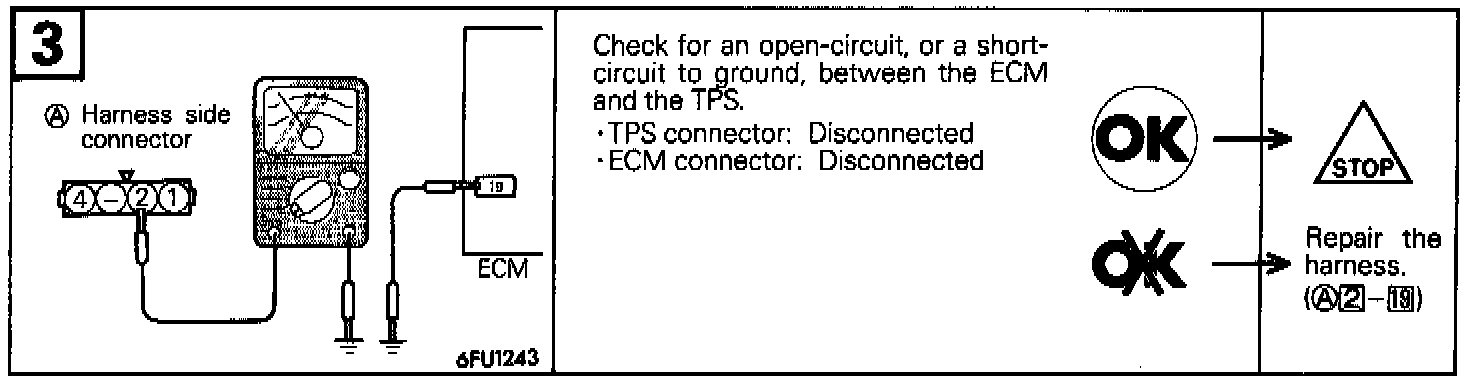

Step 3







TROUBLESHOOTING HINTS

When short-circuit or wire breakage occurs in the TPS circuit, hesitation, deceleration shock, shift shock in the A/T vehicle, etc. may be felt.
