Body Control System Connectors

NOTE: For terminal identification of body control system connectors, seeFig 1 - Fig 7 . Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested. For wiring diagrams, see WIRING DIAGRAMS.

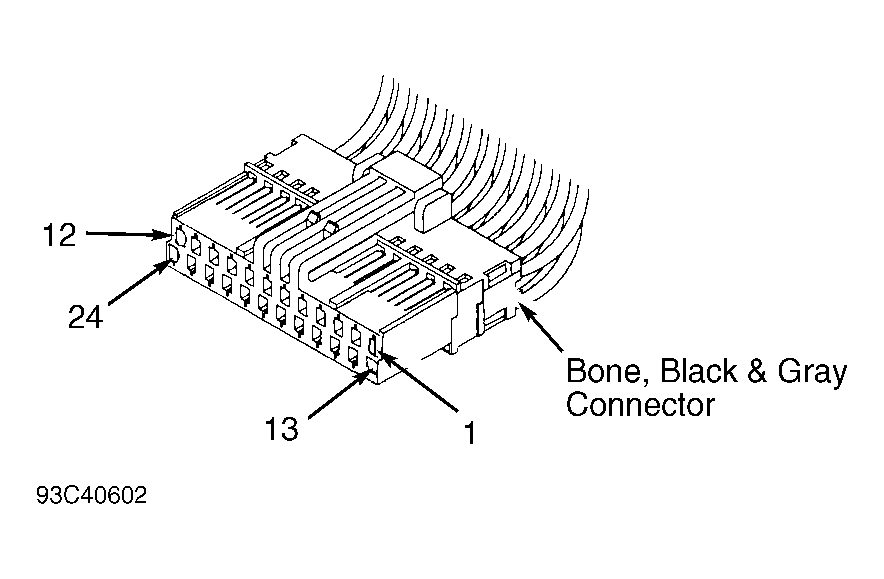

Fig 1: Body Control Module Connector Terminal ID

G93C40602

Courtesy of CHRYSLER CORP.

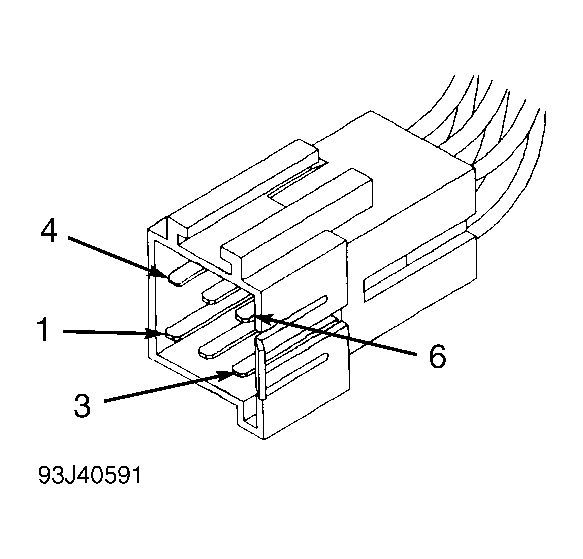

Fig 2: Data Link Connector (DLC) Terminal ID

G93J40591

Courtesy of CHRYSLER CORP.

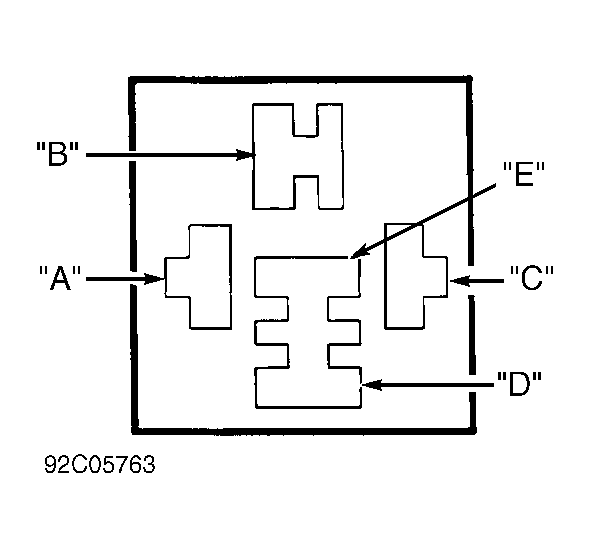

Fig 3: Relay Connector Terminal ID

G92C05763

Courtesy of CHRYSLER CORP.

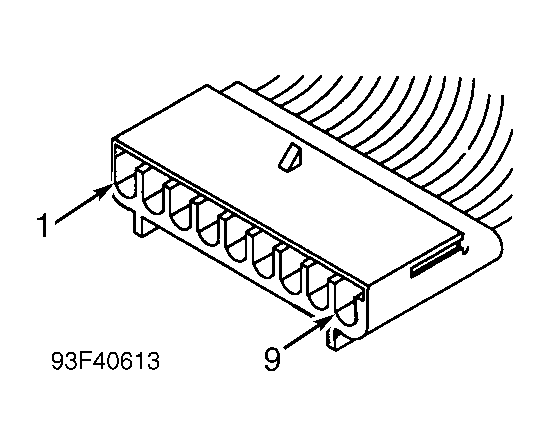

Fig 4: Message Center Connector Terminal ID

G93F40613

Courtesy of CHRYSLER CORP.

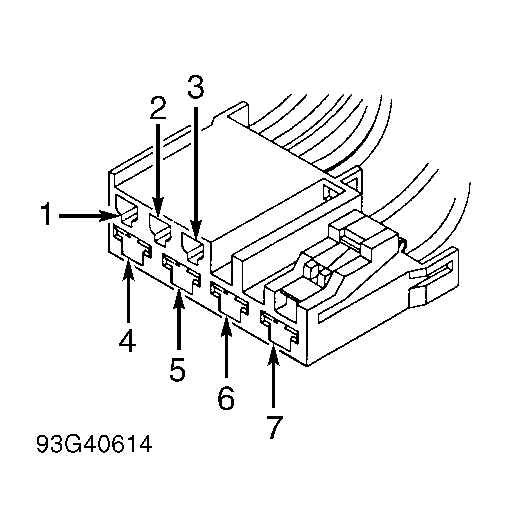

Fig 5: Multifunction Switch 7-Pin Connector Terminal ID

G93G40614

Courtesy of CHRYSLER CORP.

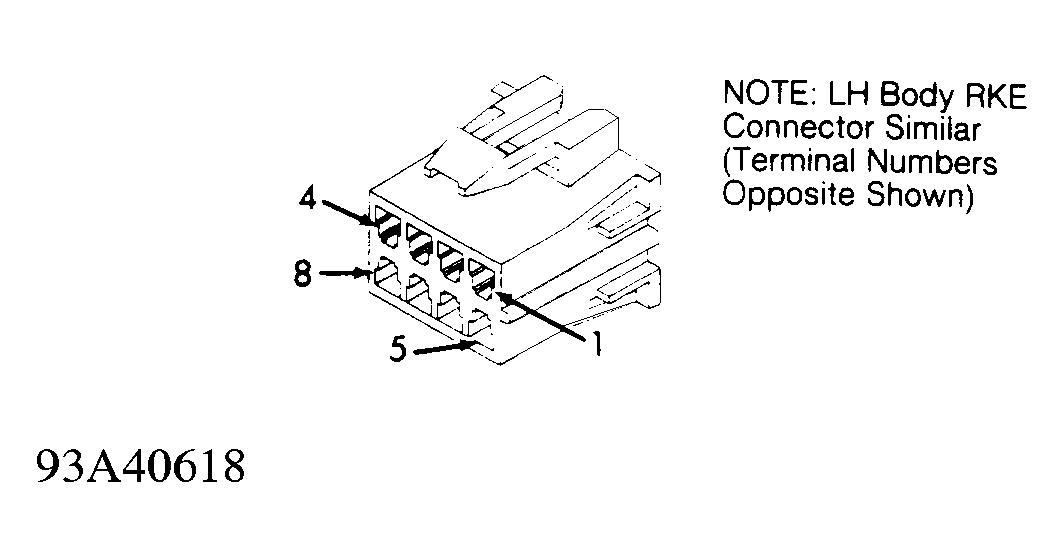

Fig 6: Remote Keyless Entry (RKE) Module Connector Terminal ID

G93A40618

Courtesy of CHRYSLER CORP.

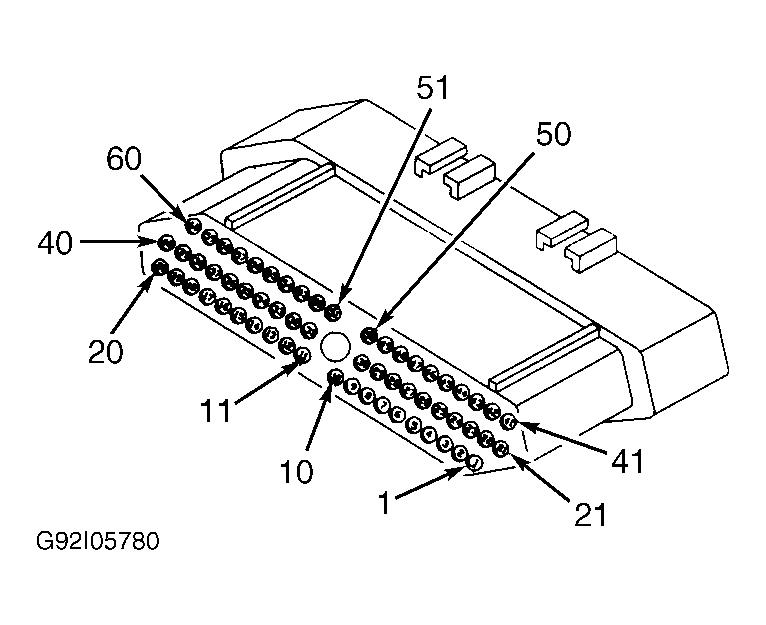

Fig 7: PCM & Transmission Control Module Connector Terminal ID

G92I05780

Courtesy of CHRYSLER CORP.
