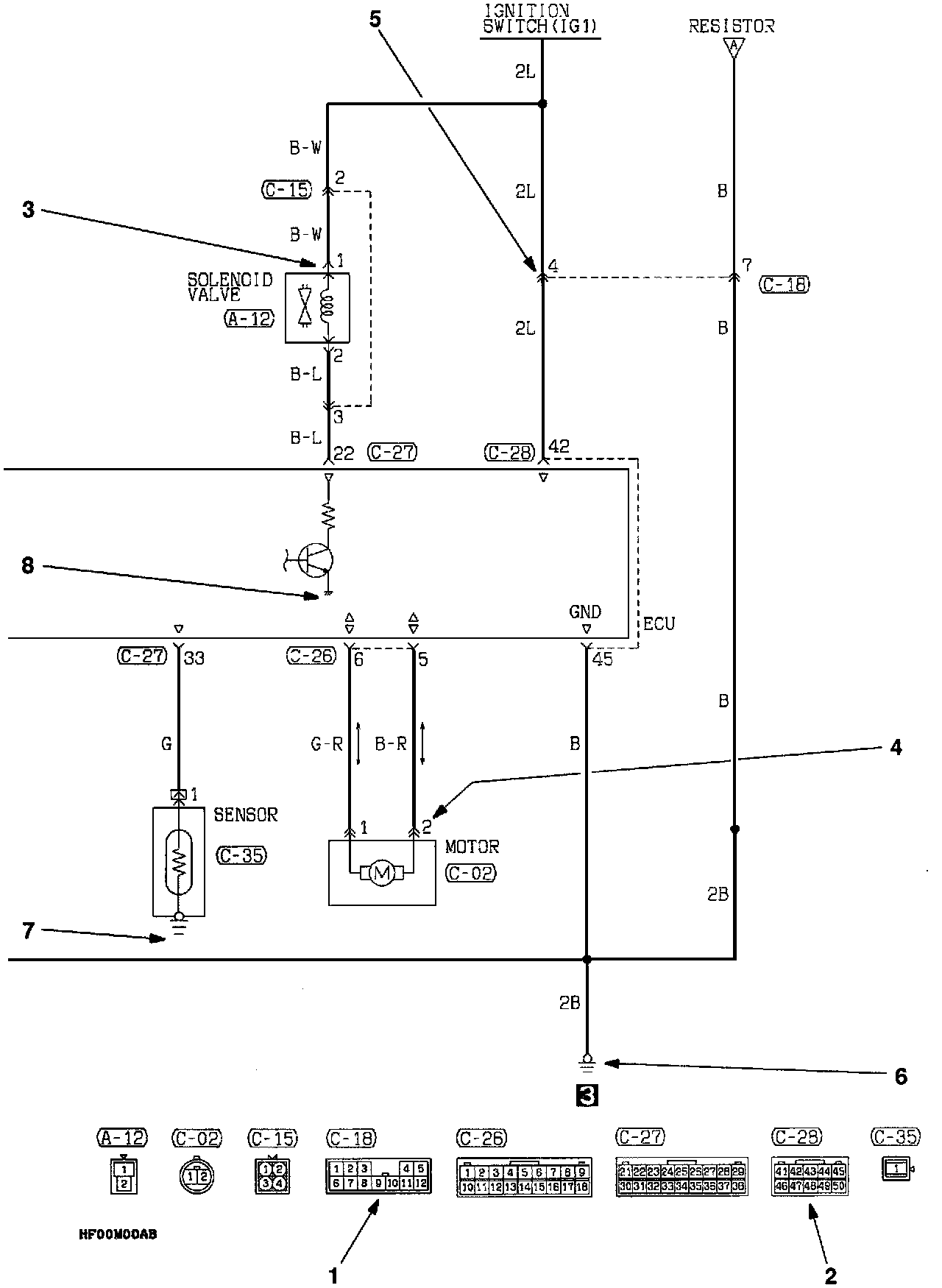

Connector/Grounding Indications

Connectors/Ground Indications:





Connector/Grounding Indications

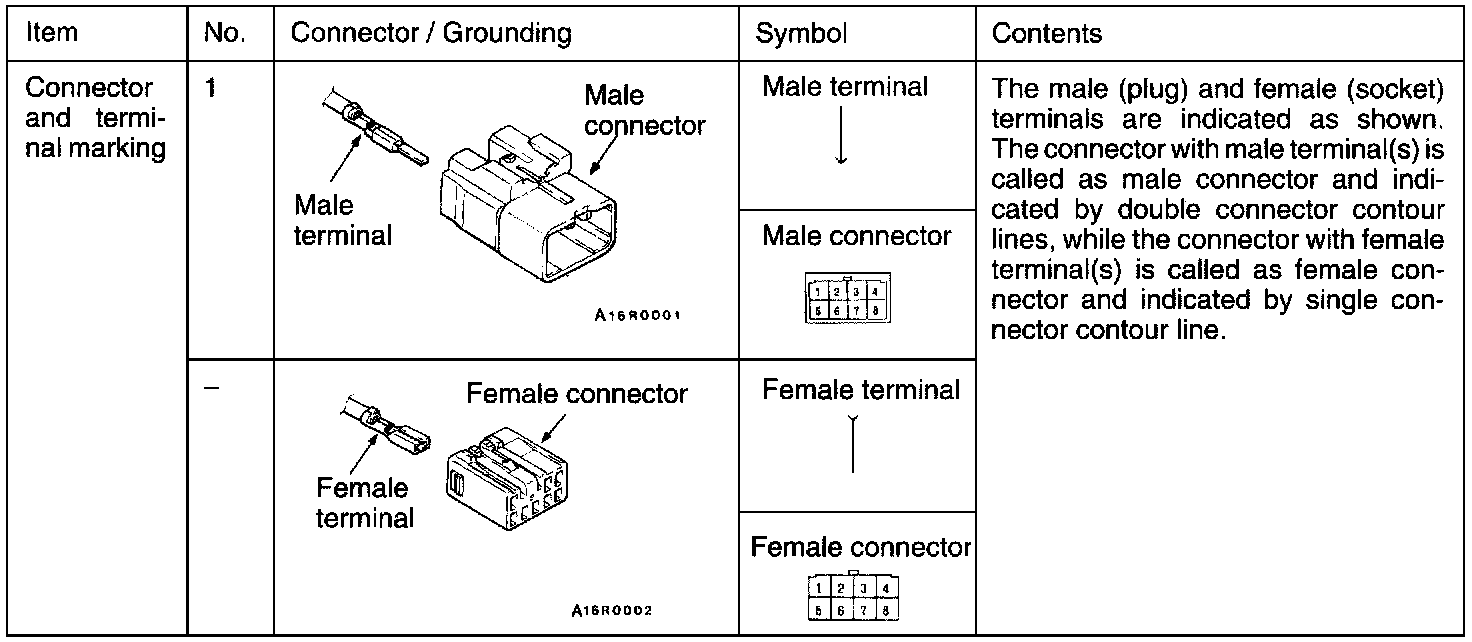

Connector And Terminal Marking:





Connector And Terminal Markings

Connector Symbol Marking:





Connector Symbol Markings

Connector Connection Marking:





Connector Connection Markings

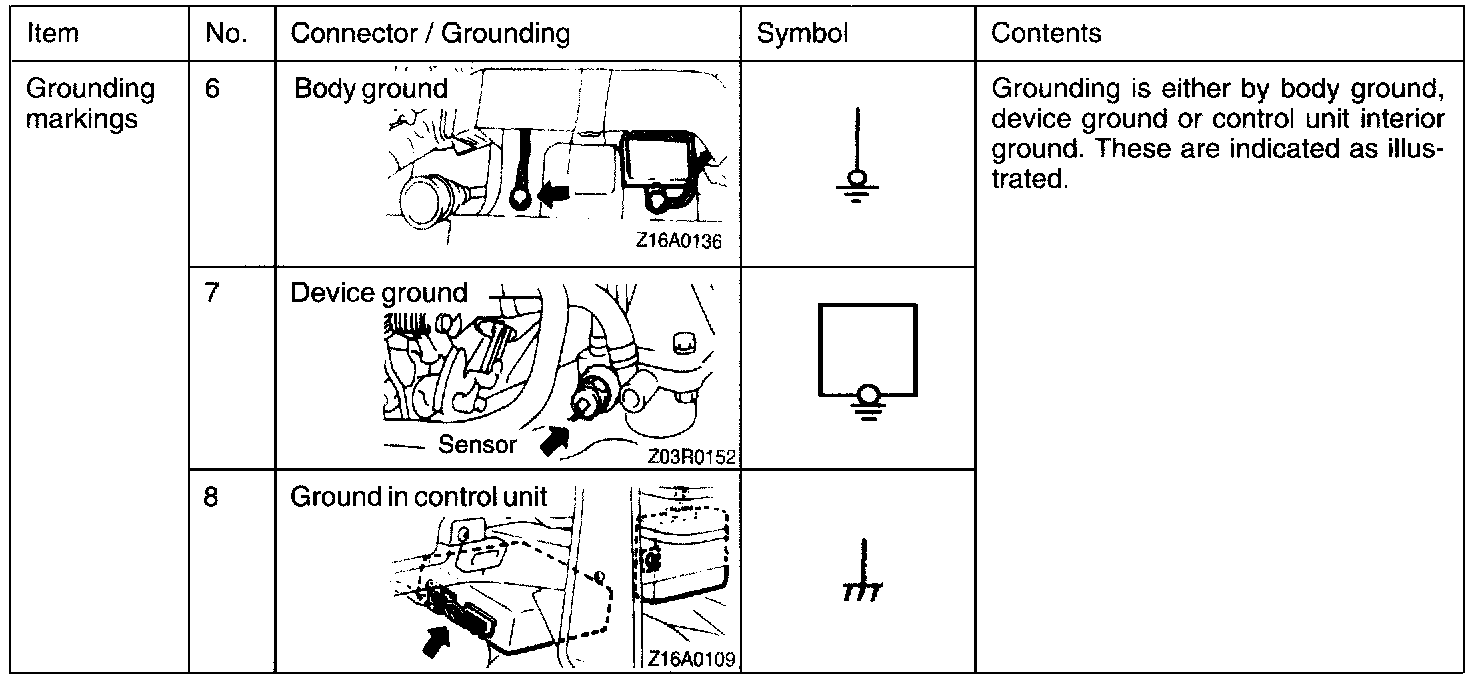

Grounds Marking:





Grounding Markings
