Harness Inspection

MFI Relay Harness Inspection:

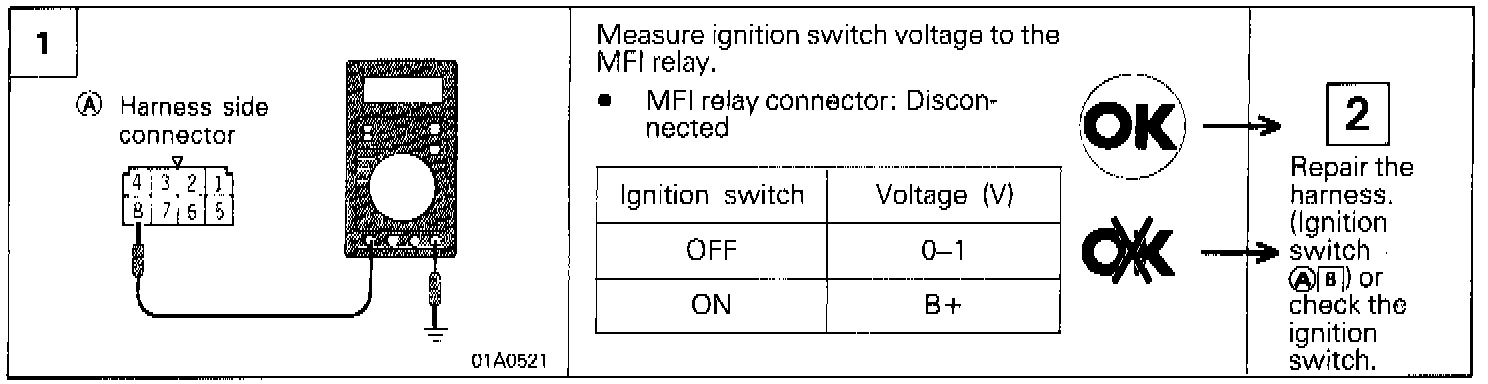

Step 1

MFI Relay Harness Inspection:

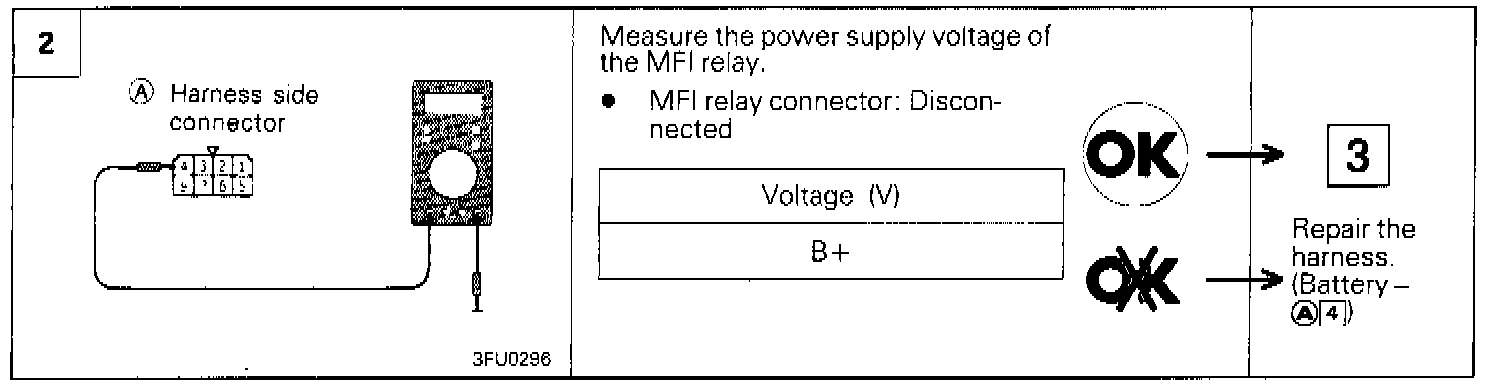

Step 2

MFI Relay Harness Inspection:

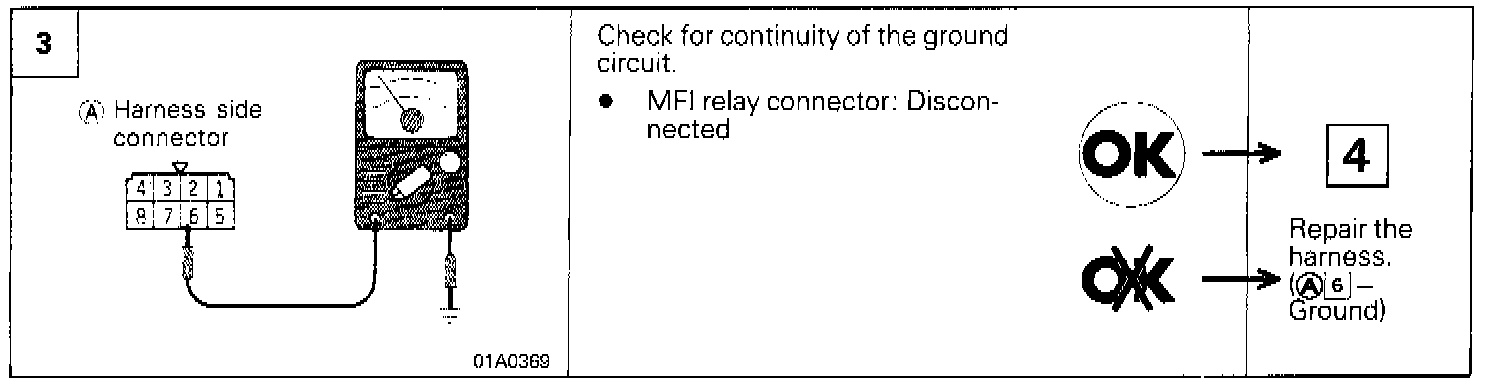

Step 3

MFI Relay Harness Inspection:

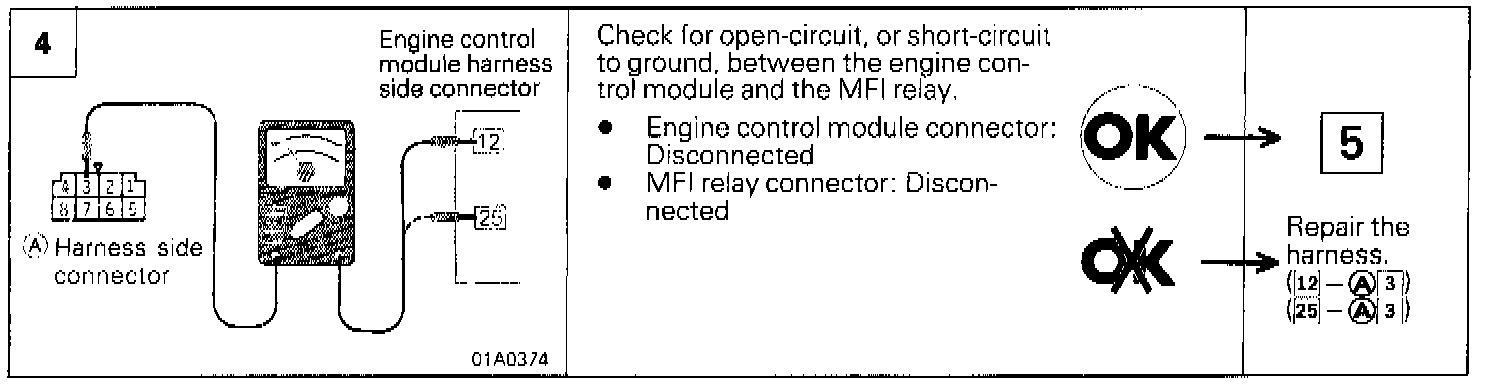

Step 4

MFI Relay Harness Inspection:

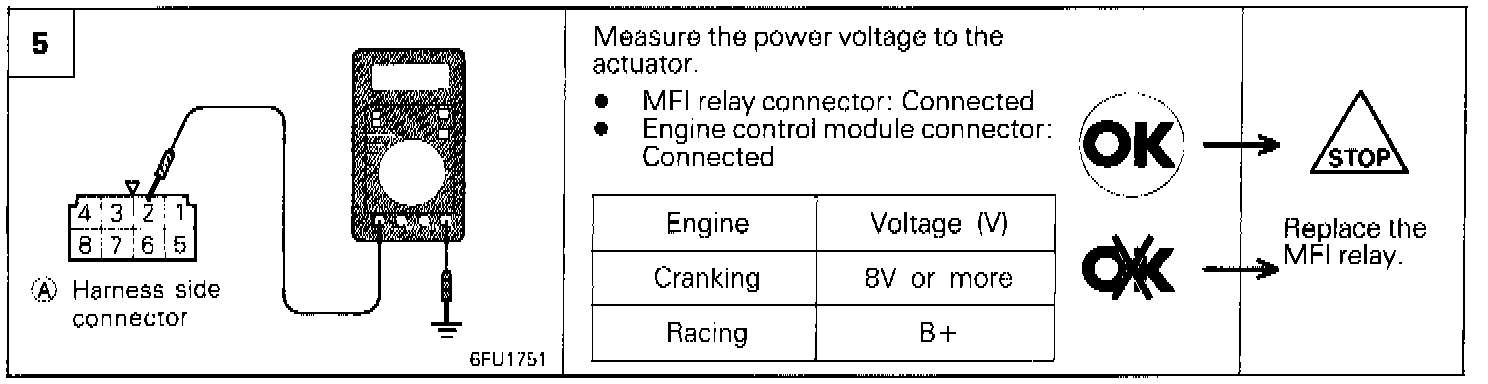

Step 5
