EGR Diagnostic Chart: Notes

NOTE: Ensure correct diagnostic chart is used. The EGR solenoid/transducer assembly may be referred to as Electric EGR Transducer (EET) in diagnostic charts.

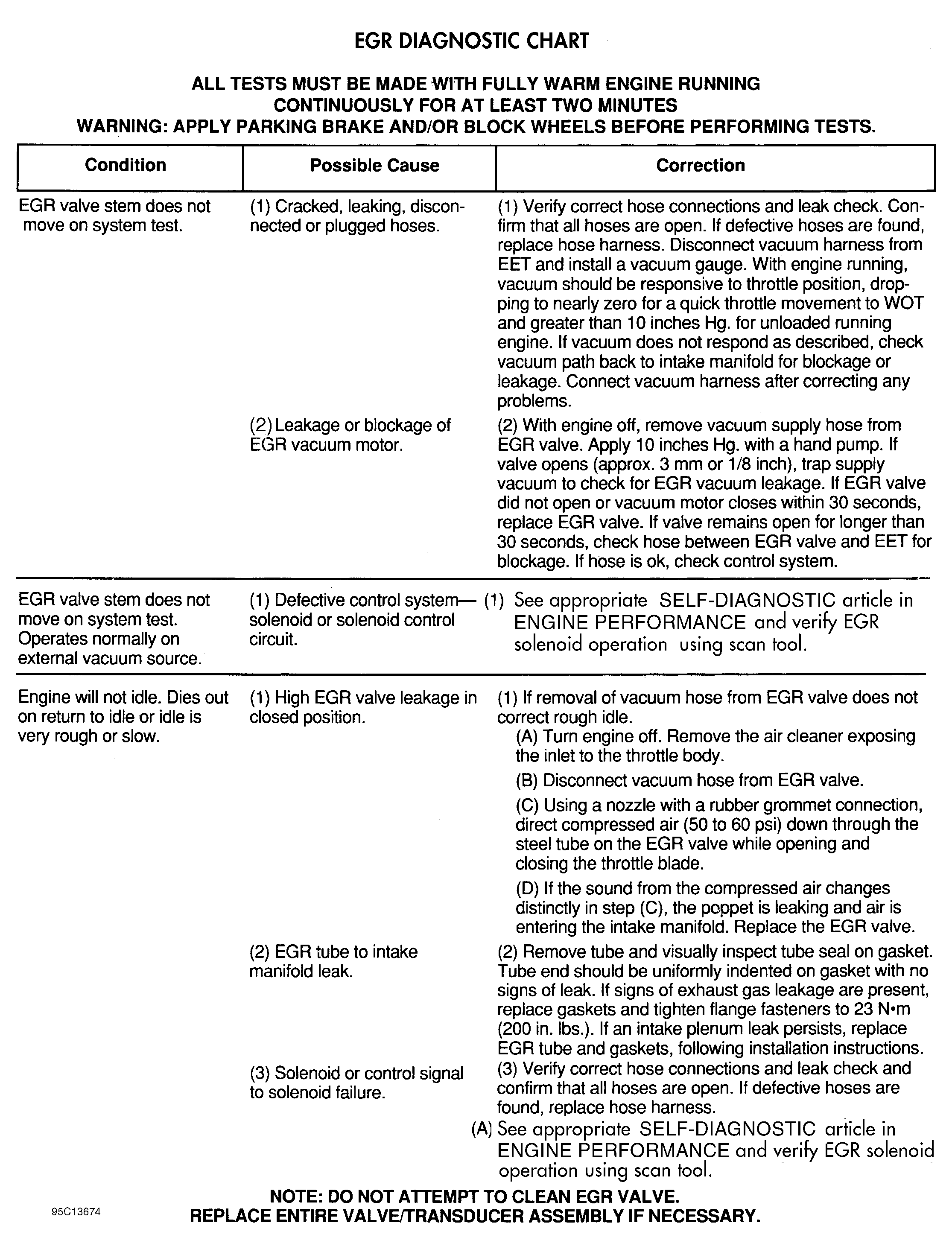

Fig 1: EGR Diagnostic Chart (Neon)
G95C13674Courtesy of CHRYSLER CORP.
