Windshield Washer Motor

With washer motor installed, fill washer tank with water. With battery connected as illustrated, ensure water squirts out strongly. See Fig 1 .

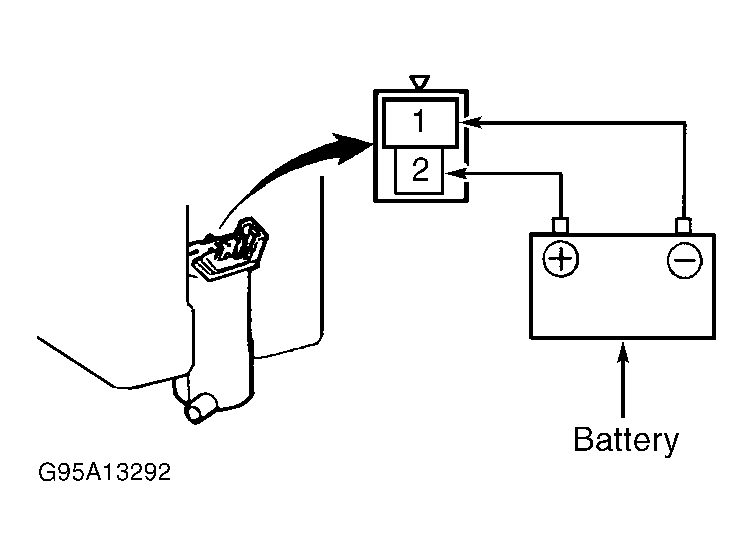

Fig 1: Testing Windshield Washer Motor

Courtesy of CHRYSLER CORP.
