Windshield Wiper/Washer Switch

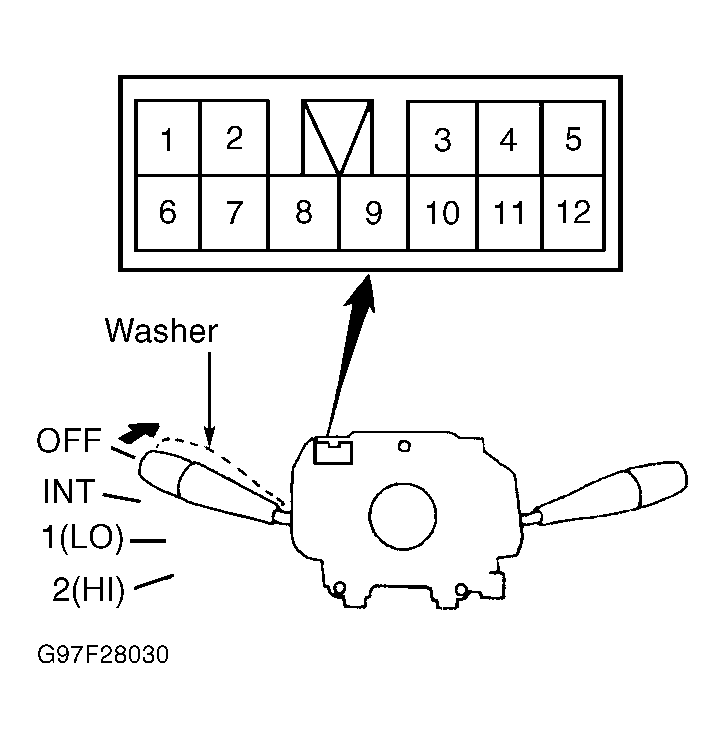

Disconnect switch connector at steering column. Check continuity between switch terminals. See Figure . See WIPER/WASHER SWITCH CONTINUITY . Replace switch as necessary.
WIPER/WASHER SWITCH CONTINUITY
| Switch Position | Terminals No. | |
|---|---|---|
| Wiper Switch | ||
| OFF | 7 & 8 | |
| INT | 3, 8 & 10 | |
| 1 (LO) | 4, 8 & 10 | |
| 2 (HI) | 4, 9 & 10 | |
| Washer Switch (ON) | 2, 6 & 10 | |
