Rear Wiper/Washer Switch Test

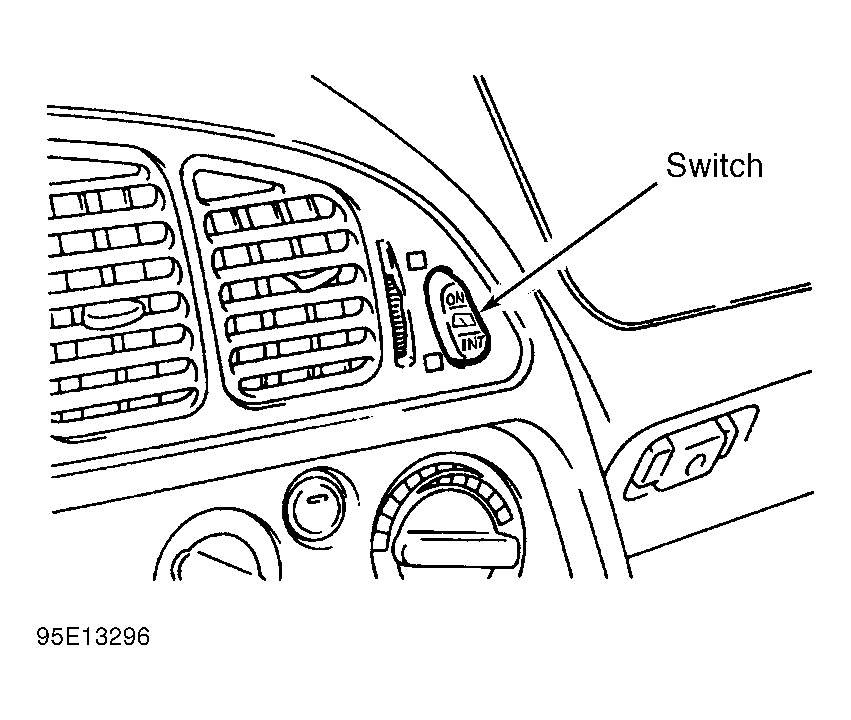

Remove center air outlet assembly. Remove wiper/washer switch from dash. See Fig 1 . Disconnect switch. Check for continuity between indicated terminals with switch in indicated position. See Fig 2 . See REAR WIPER/WASHER SWITCH CONTINUITY . Replace switch a s necessary.
REAR WIPER/WASHER SWITCH CONTINUITY
| Switch Position | Terminals No. |
|---|---|
| Off | 5 & 6 |
| Low | 6 & 7 |
| Intermittent | 3 & 7; 5 & 6 |
| Washer | 7 & 8 |
| Illumination | 1 & 4 |
