Module, Convergence Telematics: Installation: Installation

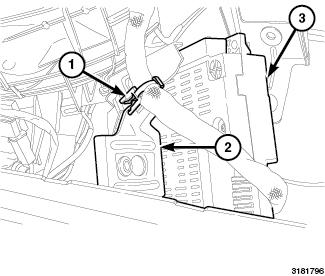

Fig 1: Harness Clip, CTM Bracket & CTM

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect the harness clip (1) from the CTM bracket (2) and remove the CTM (3).
2. Position the Telematic Module (CTM) (3) under the instrument.
3. Connect the harness clip (1) to the CTM support bracket (2).

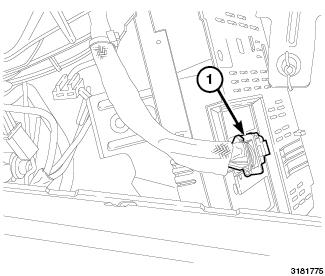

   Fig 2: Harness Connector

   Courtesy of CHRYSLER GROUP, LLC
4. Connect the harness connector (1) to the CTM.

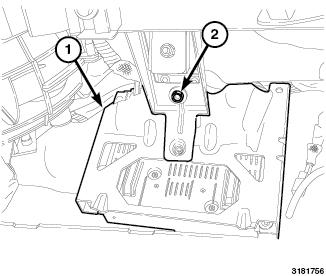

   Fig 3: Convergence Telematic Module (CTM) & Bracket Mounting Retainer

   Courtesy of CHRYSLER GROUP, LLC
5. Align the CTM (1) bracket with the instrument panel bracket and install the retainer (2).

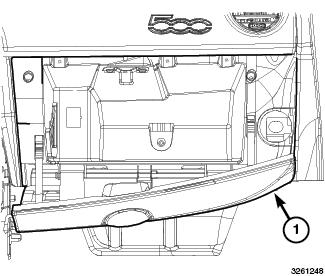

   Fig 4: Glove Box

   Courtesy of CHRYSLER GROUP, LLC
6. Install the glove box assembly. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .

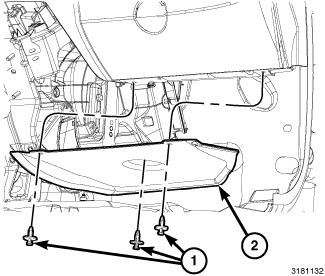

   Fig 5: Retainers & Passenger Side Silencer Panel

   Courtesy of CHRYSLER GROUP, LLC
7. Install the passenger side silencer panel (2) and install the retainers (1).

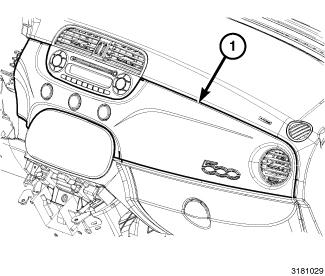

   Fig 6: Center Trim Bezel

   Courtesy of CHRYSLER GROUP, LLC
8. Install the bezel (1), align the tabs up and firmly press into place.

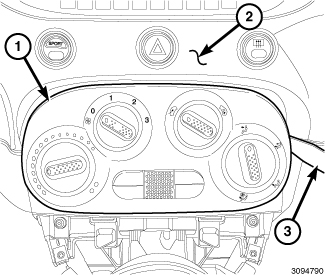

   Fig 7: Trim Stick, Instrument Panel & Control Panel

   Courtesy of CHRYSLER GROUP, LLC
9. Install the align the tabs for the A/C heater control and firmly press into place.
10. Connect the negative battery cable.
