Convergence Telematics Module - Installation

INSTALLATION

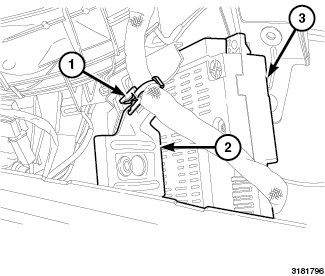

1. Disconnect the harness clip (1) from the CTM bracket (2) and remove the CTM (3).
2. Position the Telematic Module (CTM) (3) under the instrument.
3. Connect the harness clip (1) to the CTM support bracket (2).

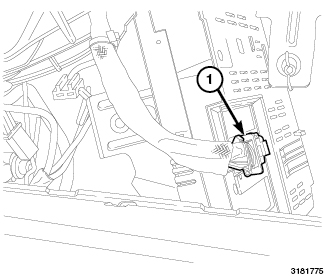

4. Connect the harness connector (1) to the CTM.

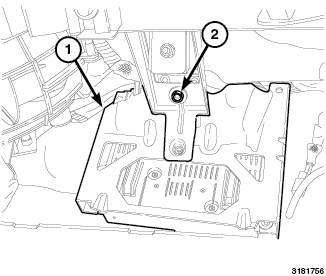

5. Align the CTM (1) bracket with the instrument panel bracket and install the retainer (2).





6. Install the glove box assembly Instrument Panel Glove Box - Installation.

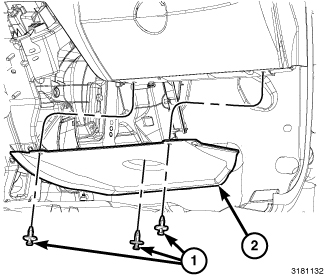

7. Install the passenger side silencer panel (2) and install the retainers (1).

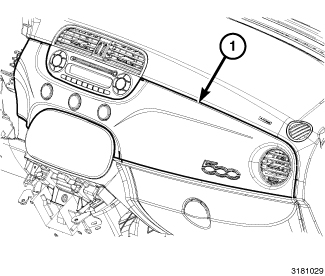

8. Install the bezel (1), align the tabs up and firmly press into place.

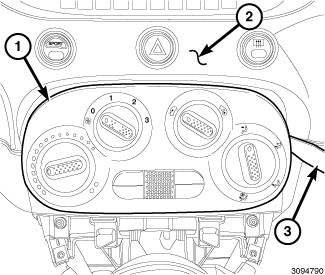

9. Install the align the tabs for the A/C heater control and firmly press into place.
10. Connect the negative battery cable.
