Removal

REMOVAL

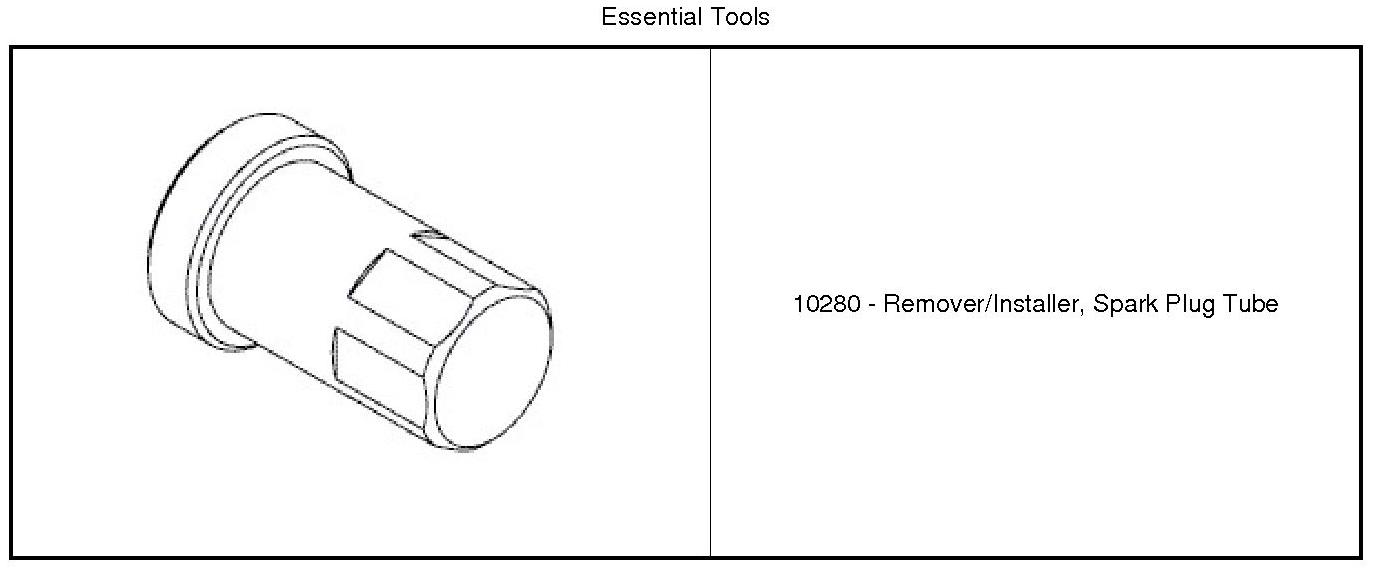

Special Tools:











NOTE: Number 1 cylinder spark plug tube shown, all others similar.

1. Disconnect and isolate the negative battery cable.
2. Remove the cylinder head cover Cylinder Head Cover(s) - Removal.
3. Using the (10280) (1), remove the tube (2) from the cylinder head and discard the tube.
4. Clean the area around the spark plug tube mounting with Mopar(R) Parts Cleaner or equivalent.
