No Response From Abs (Anti-Lock Brake System Module): Notes

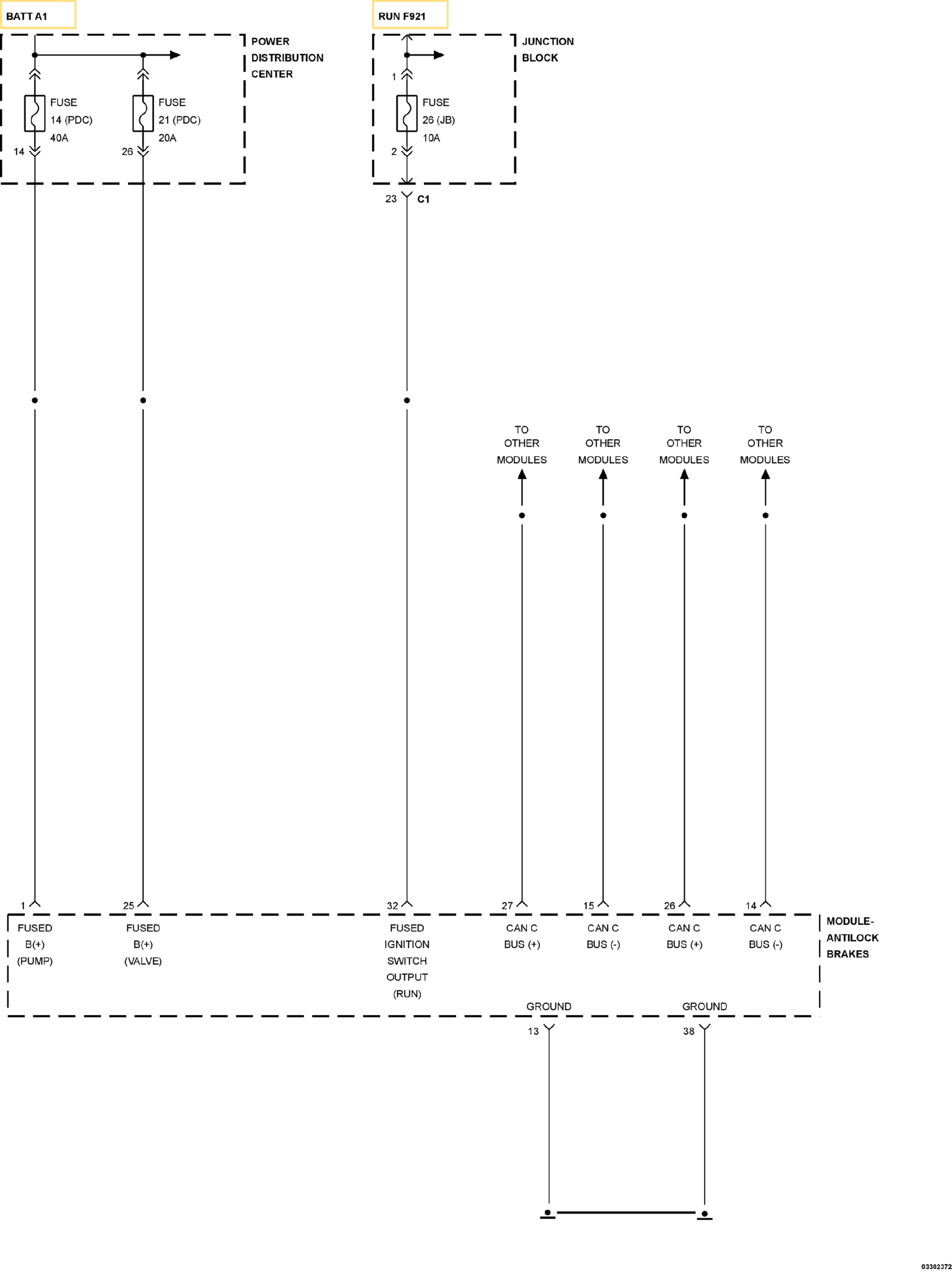

Fig 1: ABS Module Power Supply Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
