Full Open Retractable Roof Module - Installation

INSTALLATION





1. Position the module (1) onto the mounting plate and press into place, engaging the retaining clips.

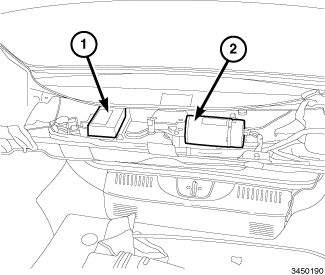

2. Connect the body harness electrical connector to the module (1).

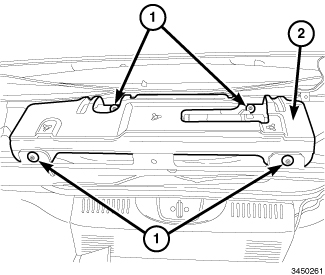

3. Position the cover plate (2) and install with four new rivets (1).





4. Position the rear shelf (2).

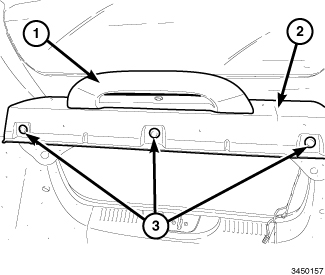

5. Install the push pin retainers (3) securing the rear shelf.
6. Align and position the bracket (1) onto the rear shelf.
7. Install the three fasteners securing the bracket (1) to the rear shelf (2). Tighten the bracket securely.

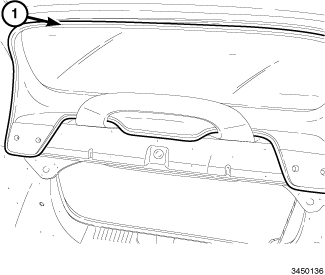

8. Install the rear wind deflector / windscreen (1) by aligning and pushing down.
9. Connect the negative battery cable.
