Front Planetary Gear Assembly And Input Shaft

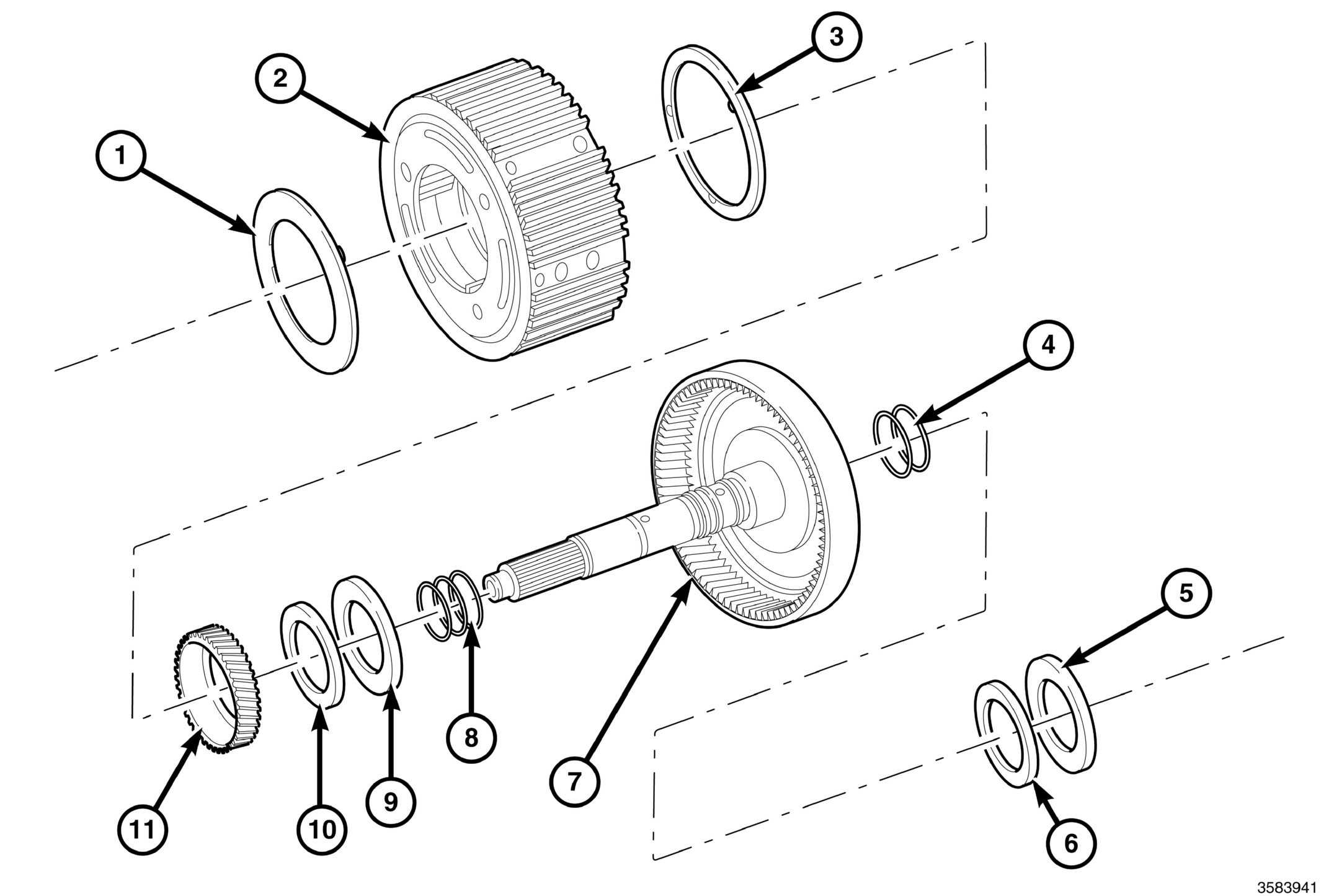

Fig 1: Exploded View Of Front Planetary Gear Assembly & Input Shaft

GC0153646

Courtesy of CHRYSLER GROUP, LLC

1 - Thrust Washer	7 - Input Shaft
2 - Planetary Gear Assembly	8 - Oil Seals
3 - Thrust Washer	9 - Bearing Race
4 - Oil Seals	10 - Thrust Bearing with Race
5 - Bearing Race	11 - Planetary Sun Gear
6 - Thrust Bearing with Race
