B1122-13-Rear Wiper Output - Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

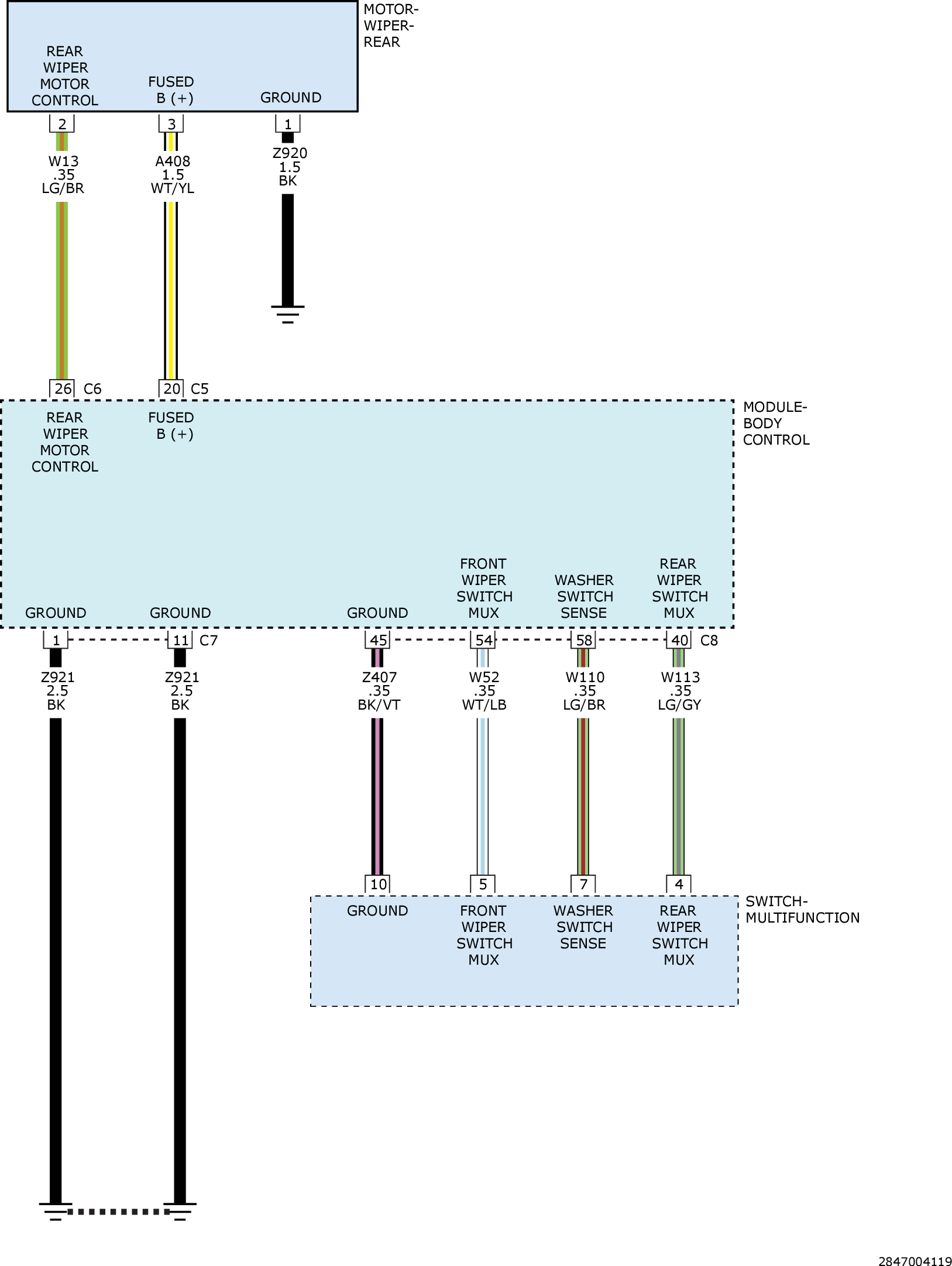

Fig 1: Rear Wiper & Switch Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
