P2252-00-O2 Sensor 1/1 Negative Current Control Circuit Low: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

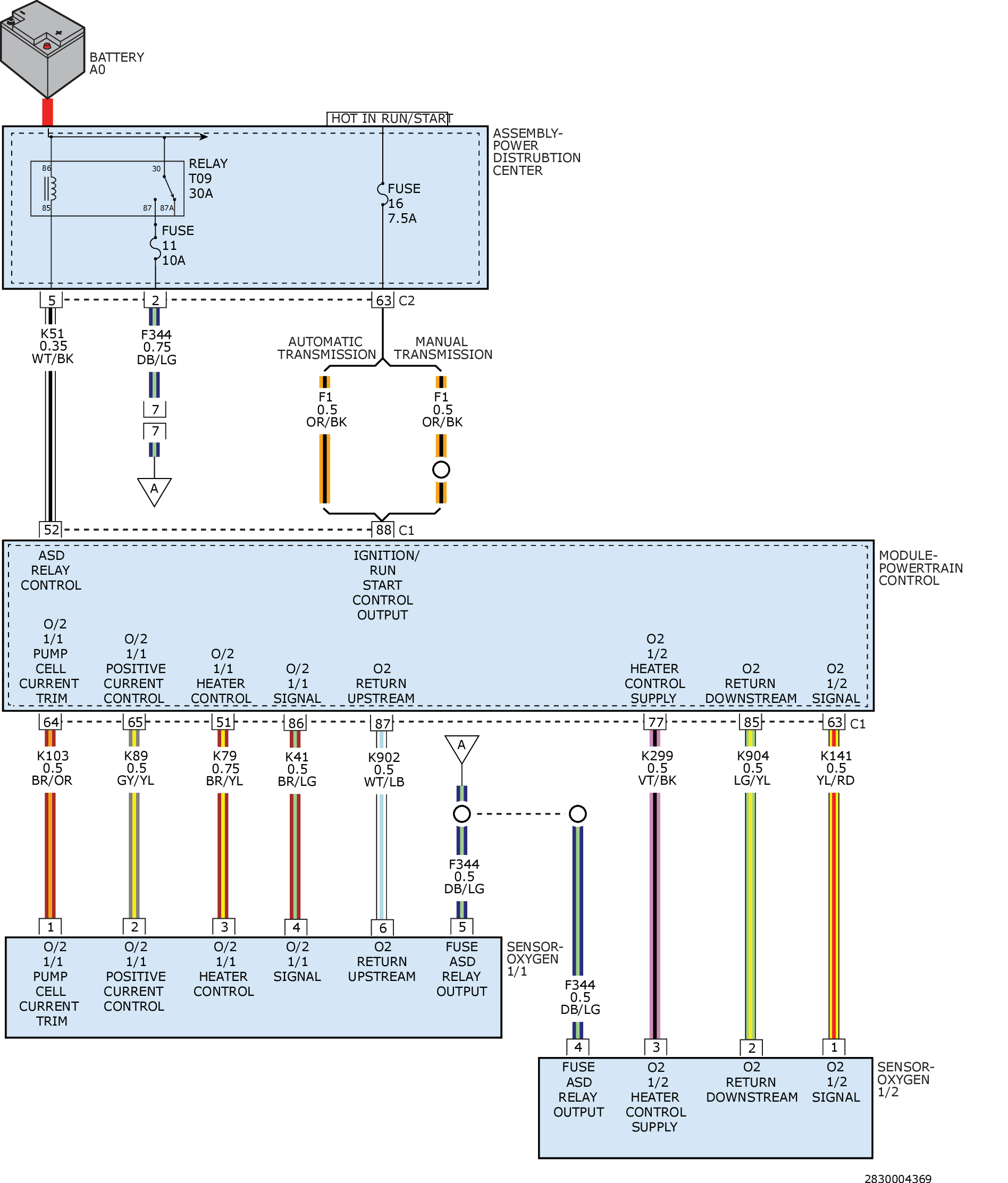

Fig 1: Oxygen Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
