No Response From TCM (Transmission Control Module): Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

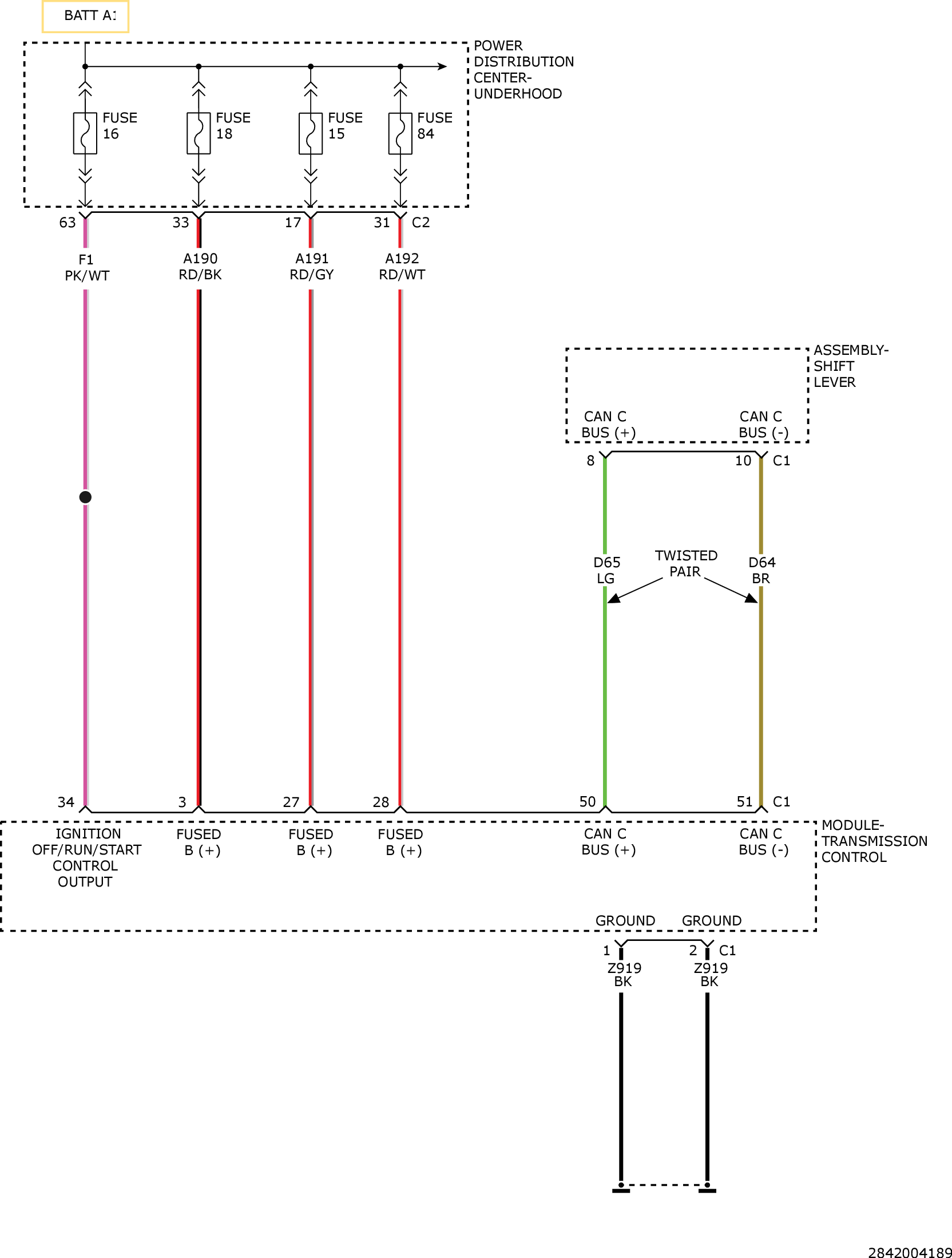

Fig 1: TCM Power/Ground & Shift Lever Communications Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
