Module-Steering Control C4

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1/08336/97

Part Description: Not Available

Connector No: D3816D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 8

Fig 1: Module-Steering Control C4 Connector End View
GCWD1000396Courtesy of CHRYSLER

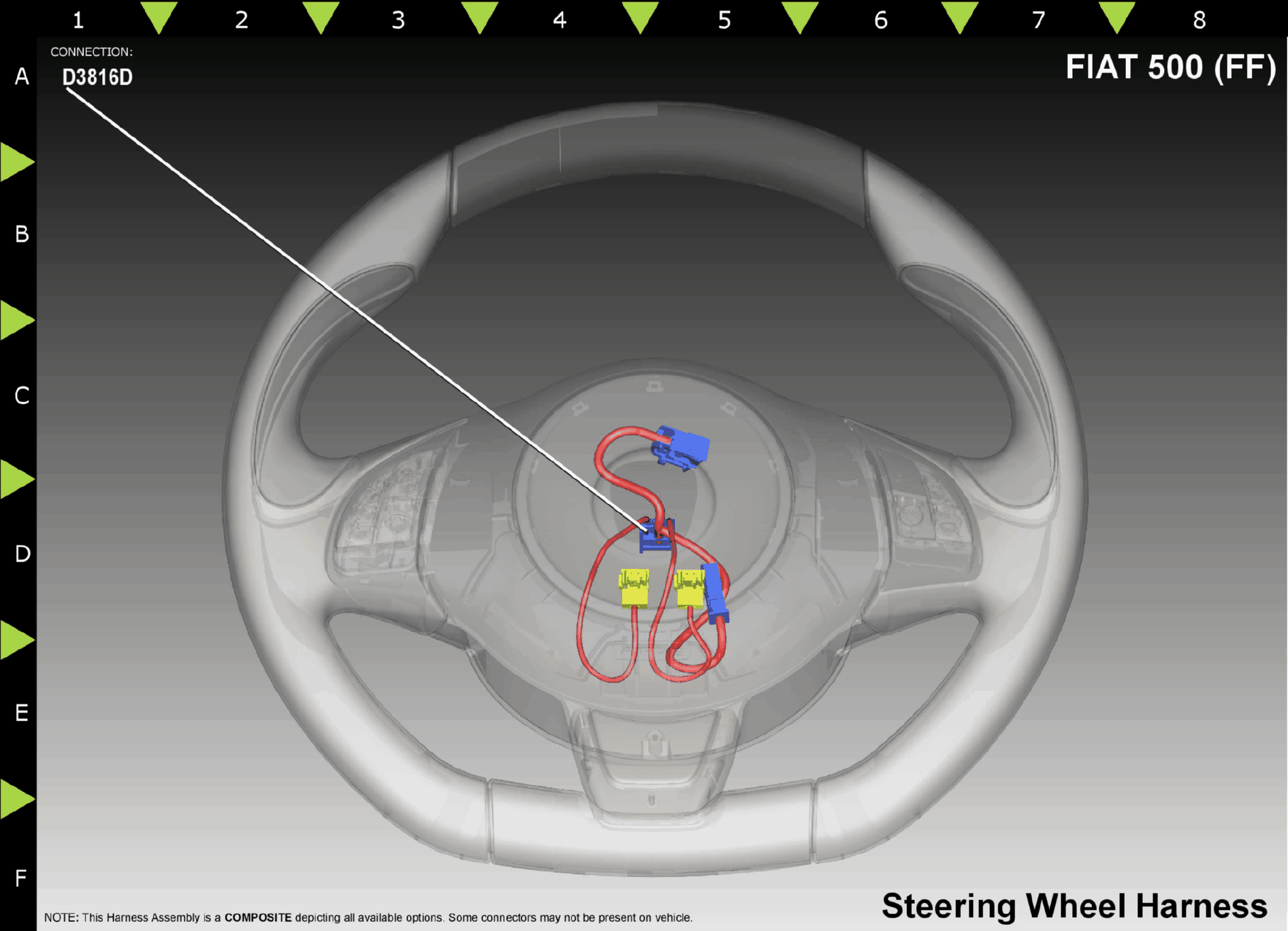

Fig 2: Module-Steering Control C4 Component Location
GCWD1155784Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 X20 BR/WT 22 RADIO CONTROL MUX N/A
2 A935 VT 22 FUSED B(+) N/A
3 Z10 DB 22 GROUND N/A
4 X21 OR 22 FUSED HORN CONTROL OUTPUT N/A
5 X920 WT/BR 22 RADIO CONTROL MUX RETURN N/A
7 X730 WT/DB 22 HANDS FREE VOICE RECOGNITION N/A
(1) Pins not listed are not used for this connector
