No Response From Abs (Anti-Lock Brake System Module): Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

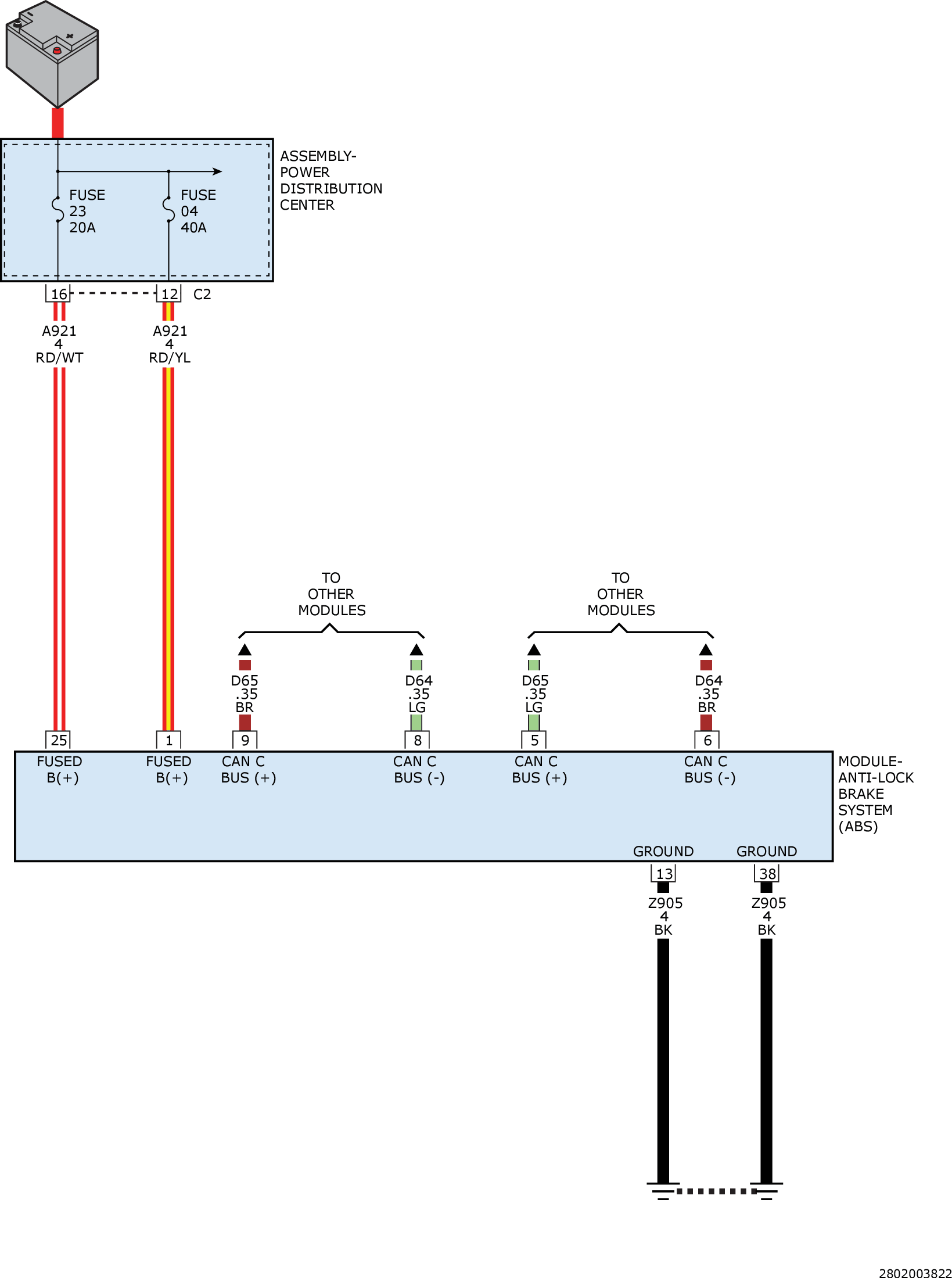

Fig 1: ABS Module Power & CAN C Bus Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
