Module, Transmission Control (TCM): Installation: DDCT

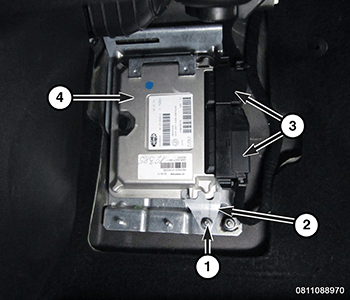

Fig 1: TCM, Bracket, Wire Harness Connectors & Mounting Bracket

Courtesy of CHRYSLER GROUP, LLC

1. Install the Transmission Control Module (TCM) (4).
2. Install the TCM bracket (2) and install the mounting bracket nut (1).
3. Connect the TCM wire harness connectors (3).

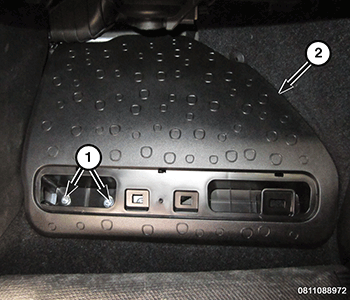

   Fig 2: TCM Protection Cover & Nuts

   Courtesy of CHRYSLER GROUP, LLC
4. Install the TCM protection cover (1) and the TCM protection cover nuts (1) and tighten to 8 N.m (71 in. lb.).

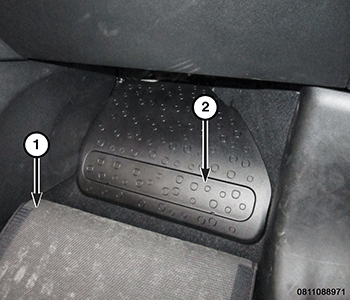

   Fig 3: Passenger Side Floor Mat & Transmission Control Module (TCM) Protection Cover Insert

   Courtesy of CHRYSLER GROUP, LLC
5. Install the TCM protection cover insert (2) and flip down the passenger side floor mat (1).
6. Only in the case of replacement, perform the TCM programming procedure. Refer to MODULE, TRANSMISSION CONTROL, MODULE PROGRAMMING .
