Description And Operation

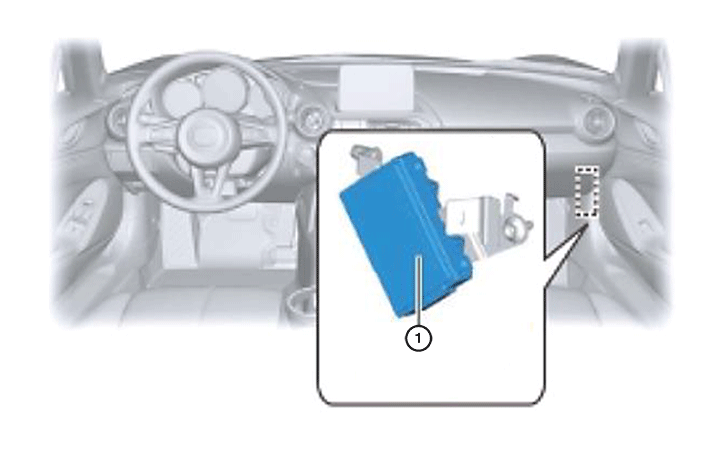

The Bluetooth® module (1) is installed behind the right kick panel, near the glove compartment. Manages wireless transmission with paired Bluetooth® enabled mobile phones and portable audio devices. Through the Controller Area Network - Interior High Speed (CAN-IHS) data bus, the Bluetooth® module receives a control signal and sends the digital data from the Bluetooth® enabled device to the audio unit. The audio signal is sent through the wire harness.
| Part | Function | |
| Supplier | JCI | |
| Profile | A2DP (Advanced audio distribution profile) |
A2DP is a profile for transmitting high quality audio data through Bluetooth® devices and wireless transmission technologies. |
| AVRCP Ver. 1.0/1.3 (Audio/video remote control profile) |
AVRCP is a profile that provides a standard interface to control television and audio devices. The function differs depending on the version. | |
| HFP1.5 (Hands free profile) |
HFP is a profile for making and receiving telephone calls by means of Bluetooth® device and wireless transmission technology. | |
| DUN 1.1 (Dial-up Networking Profile) |
DUN is a profile for accessing a dial-up service such as the internet or other service via a Bluetooth® radio wave connection. | |
| PBAP 1.0 (Phone book access profile) |
PBAP is a profile for transmitting telephone book data. | |
| Maximum number of programmable devices | 7 | |
| Number of programmed devices which can be used simultaneously | 1 | |
The battery consumption of Bluetooth® audio devices increases while Bluetooth® is connected. If a generic mobile phone device is connected to the USB port while music is being played back over the Bluetooth® connection, the Bluetooth® connection is disconnected. For this reason, you cannot have music playback over a Bluetooth® connection and music playback using a Universal Serial Bus (USB) connection at the same time. The system may not operate normally depending on the Bluetooth® audio device.
