Removal And Installation: Bracket

REMOVAL

1. Remove the Body Control Module (BCM). Refer to MODULE, BODY CONTROL (BCM), REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

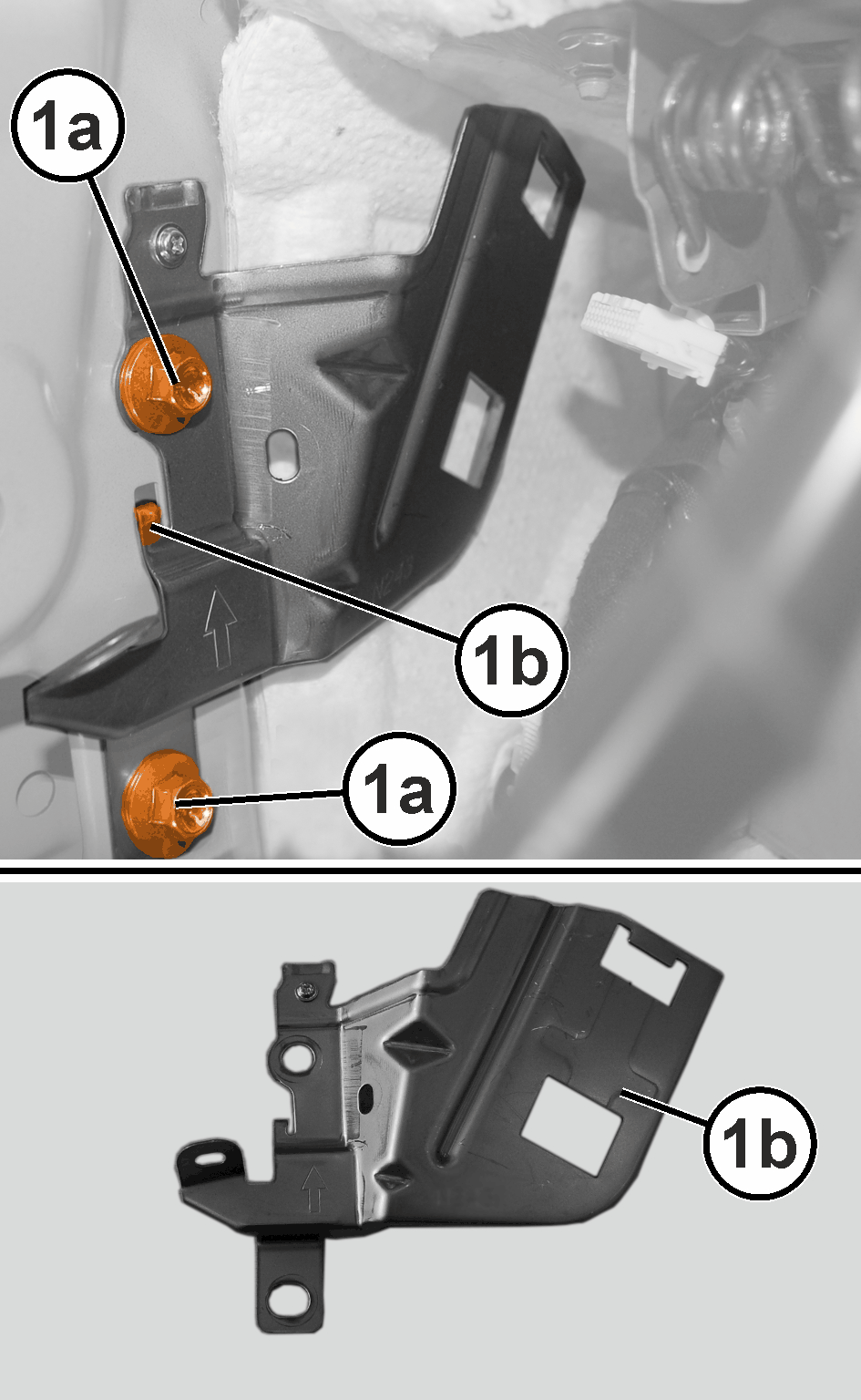

2. Remove the screws (1a) and remove the BCM mounting bracket (1b) by releasing the retainer (1c).

INSTALLATION

1. Position the BCM assembly mounting bracket and engage the retainer.
2. Tighten the BCM mounting bracket screws.
3. Install the BCM. Refer to BODY CONTROL MODULE  .
