Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

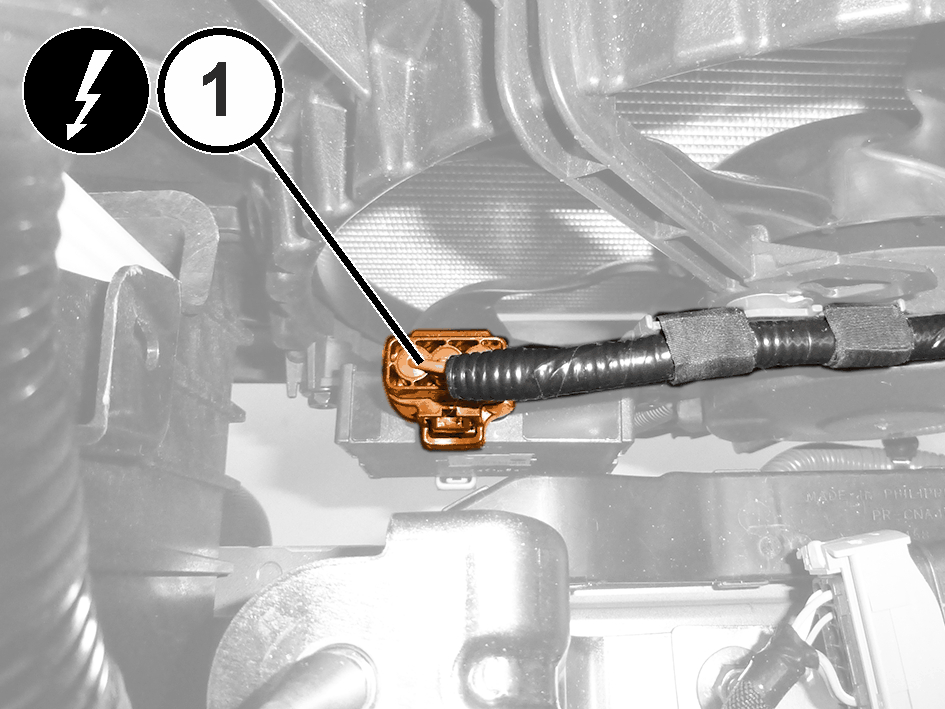

3. Disconnect the engine cooling fan control unit wire harness connector (1).
4. Remove the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

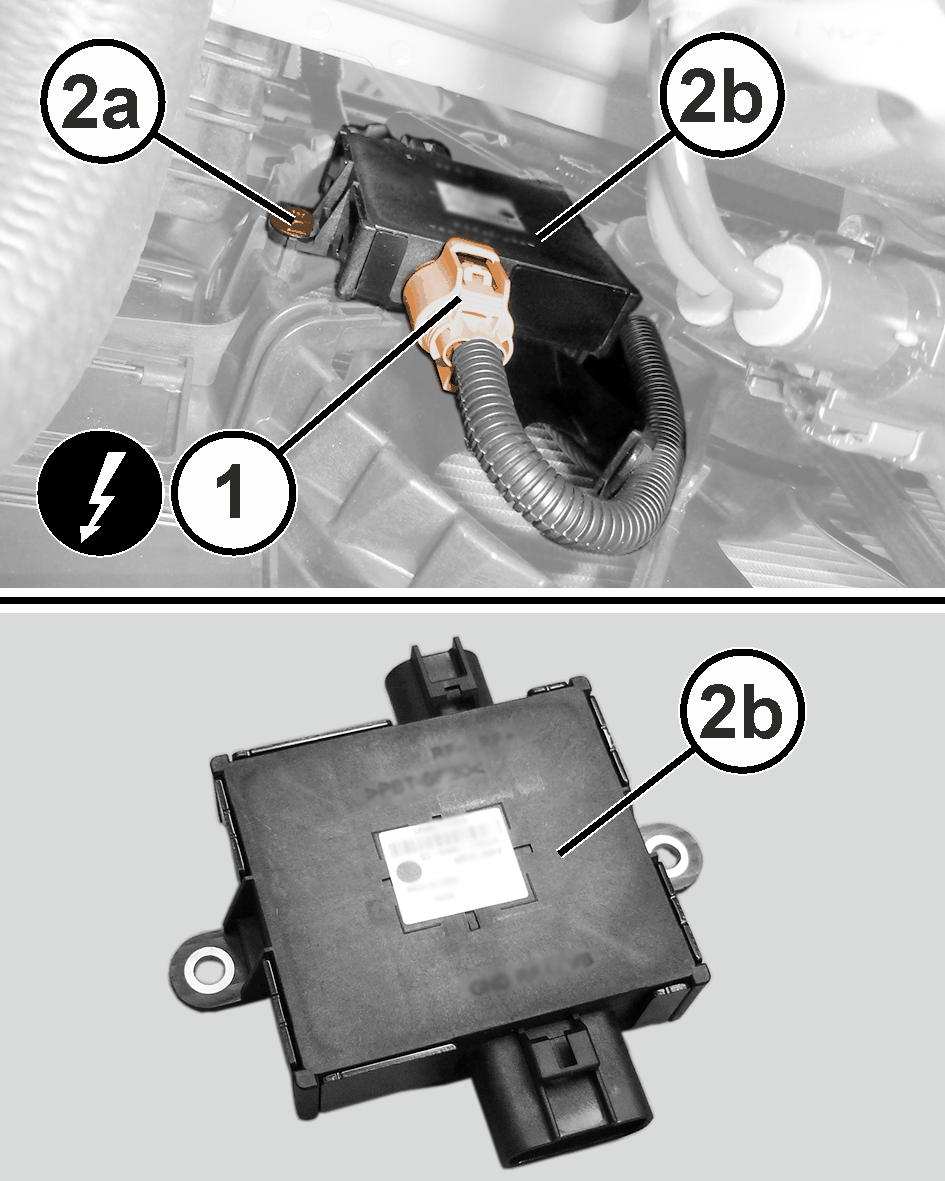

5. Disconnect the engine cooling fan control unit wire harness connector (1).
6. Remove the screws (2a) to remove the engine coolant fan control unit (2b).

INSTALLATION

1. Position the engine cooling fan in its housing and tighten the screws.
2. Connect the lower engine cooling fan control unit wire harness connector.
3. Install the engine belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION .
4. Connect the upper engine cooling fan control unit wire harness connector.
5. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
6. Connect the negative battery cable.
