Description And Operation
There are two Radio Receiver Modules (RRM) available in this vehicle, 3 inch and 7 inch. Each RRM has a distinct chassis design and is identified by a sales code.

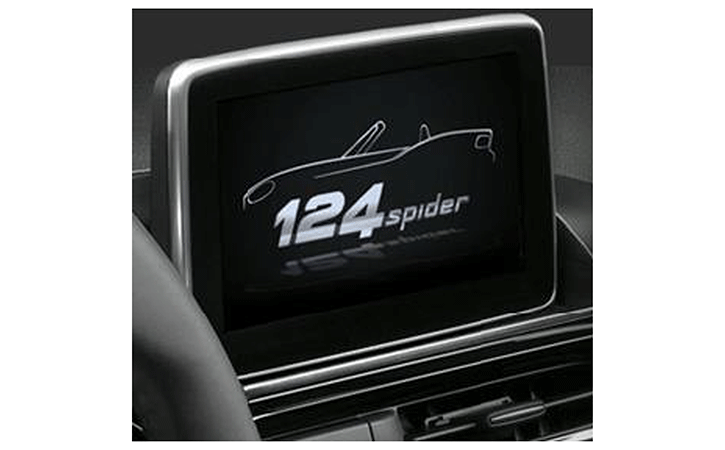

The vehicle can be equipped with a 7 inch central display with navigation system. By pairing a Bluetooth® enabled device, such as a smartphone or portable audio device, with the audio unit, it is possible to listen to Bluetooth® audio and internet radio.
In addition to the conventional audio, navigation and satellite radio functions with the 7 inch display, communication tools such as Internet radio, Short Message Service (SMS), Social Networking Service (SNS), and hands free telephone functions can also be managed by connecting a mobile device such as a smartphone or tablet. for additional information about this RRM. Refer to DESCRIPTION AND OPERATION .

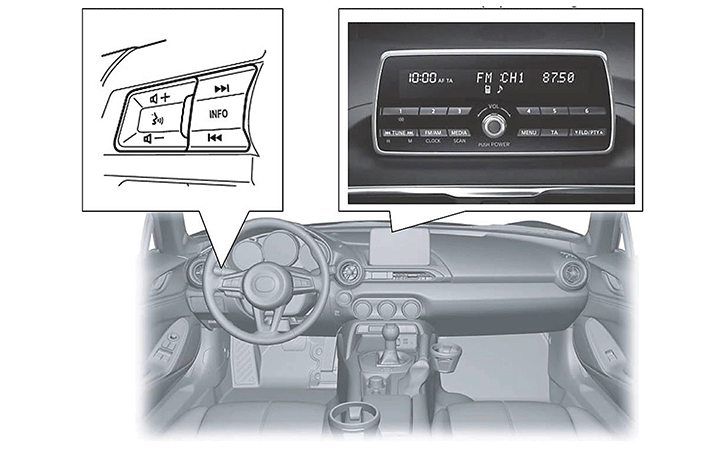

The vehicles with the 3 inch radio have an audio unit with a two line LCD display. This audio unit incorporates an AM/FM radio tuner. The various audio system operations can be selected with the buttons on the audio unit, and some of them (audio, hands free telephone, voice recognition) can be managed with the remote radio switch buttons on the steering wheel. for additional information about this RRM. Refer to DESCRIPTION AND OPERATION .
Hard wired circuitry connects the RRM to the electrical system of the vehicle. These hard wired circuits are integral to several wire harnesses, which routes throughout the vehicle and retained by many different methods. These circuits may be connected to each other and to the vehicle electrical system through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, details of wire harness routing and retention, connector pin-out information and location views for the harness connectors, splices and grounds. For proper wire repair, and connector repair procedures. Refer to STANDARD PROCEDURE , and REMOVAL , and INSTALLATION .
The RRM cannot be adjusted or repaired. If the RRM is damaged or ineffective, it must be replaced.
