Removal And Installation: Installation

  1. If removed, install the Radio/ETM to the radio display. Refer to DISPLAY, RADIO, REMOVAL AND INSTALLATION .
  2. Connect all the wiring harness connectors to the back of the radio assembly.
  3. Install the radio assembly into the instrument panel, be sure that all the clips are fully engaged.
  4. Install and securely tighten the radio assembly mounting screw.

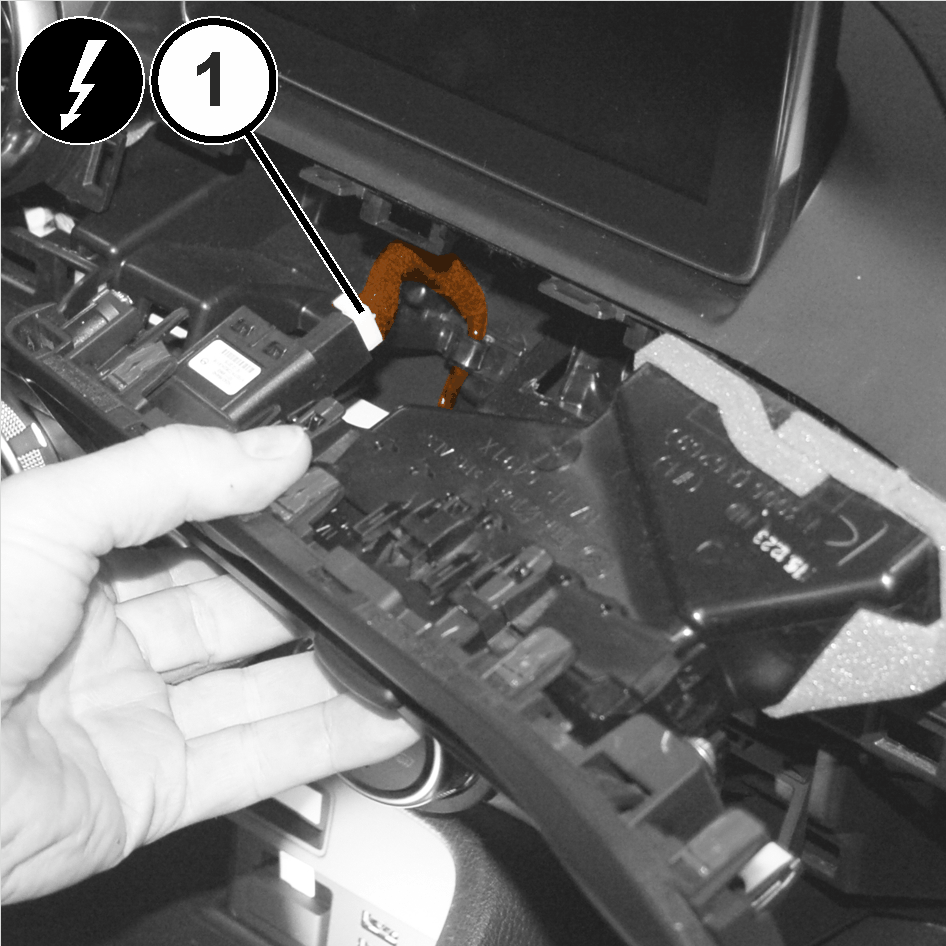

    GC0176182Courtesy of CHRYSLER GROUP, LLC
  5. Connect the wiring harness connector (1).

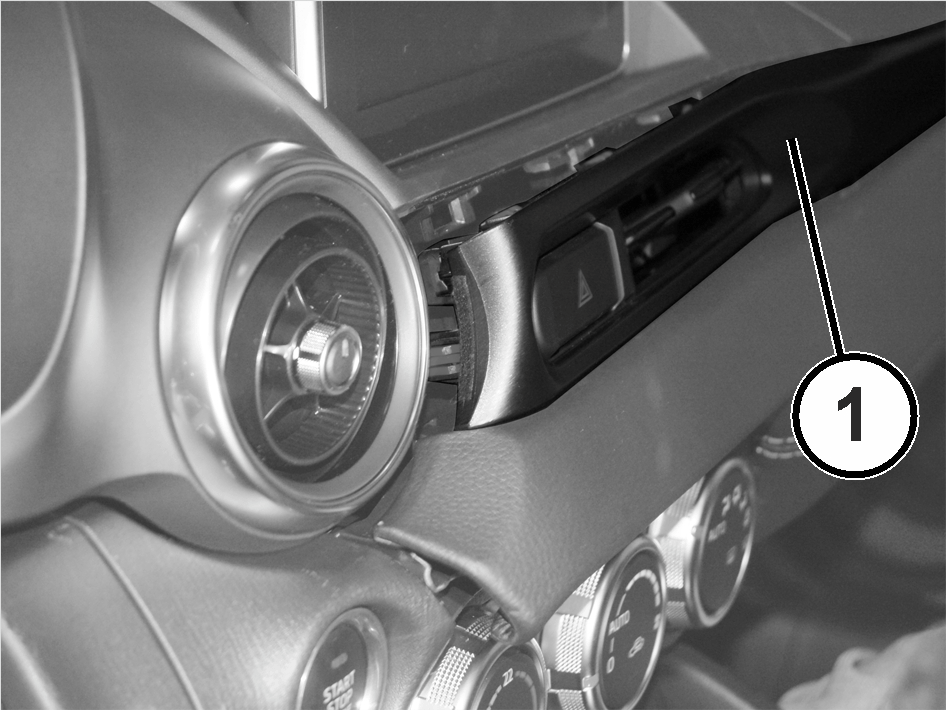

    GC0175530Courtesy of CHRYSLER GROUP, LLC
  6. Install the center trim bezel (1b), be sure that all the clips are fully engaged.
  7. Install the lower right instrument panel trim. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL AND INSTALLATION .
  8. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
