Removal And Installation

REMOVAL

1. To perform the battery disconnect, follow these steps:
   1. Put the ignition in the KEY-OFF position.
   2. Disconnect and insulate the battery terminals.
   3. Wait at least one minute before proceeding.
2. Remove the multi-function switch. Refer to SWITCH, MULTIFUNCTION, REMOVAL AND INSTALLATION .
3. Remove the Instrument Panel Cluster (IPC) and cluster trim. Refer to REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

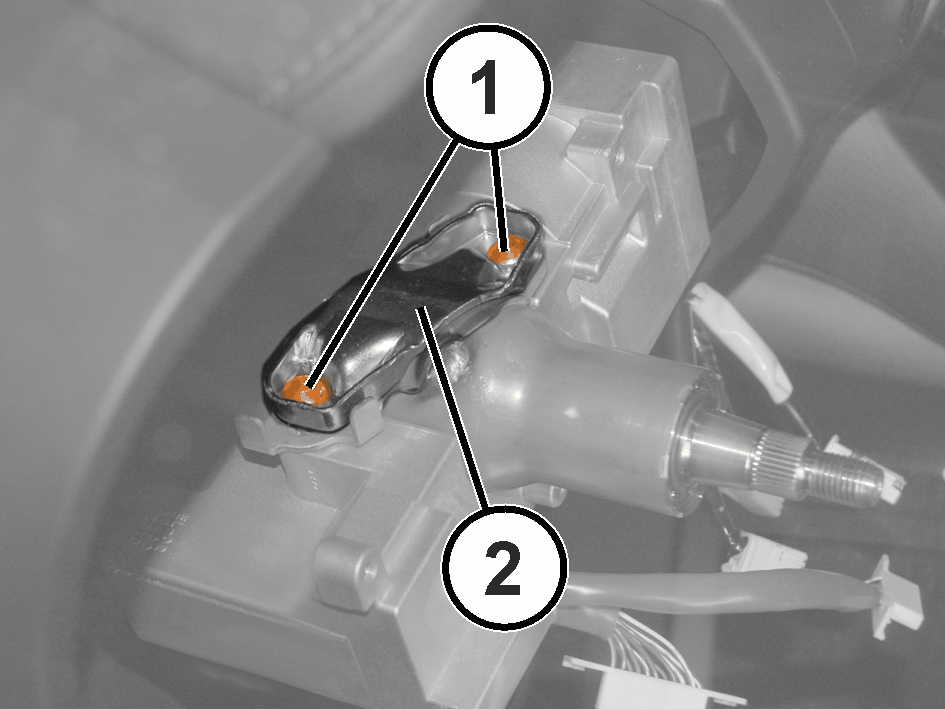

4. Using a drift and a hammer, remove the headless screws (1).
   NOTE:

   Work carefully to avoid excessive vibration.

5. Remove the bracket (2).

   Courtesy of CHRYSLER GROUP, LLC

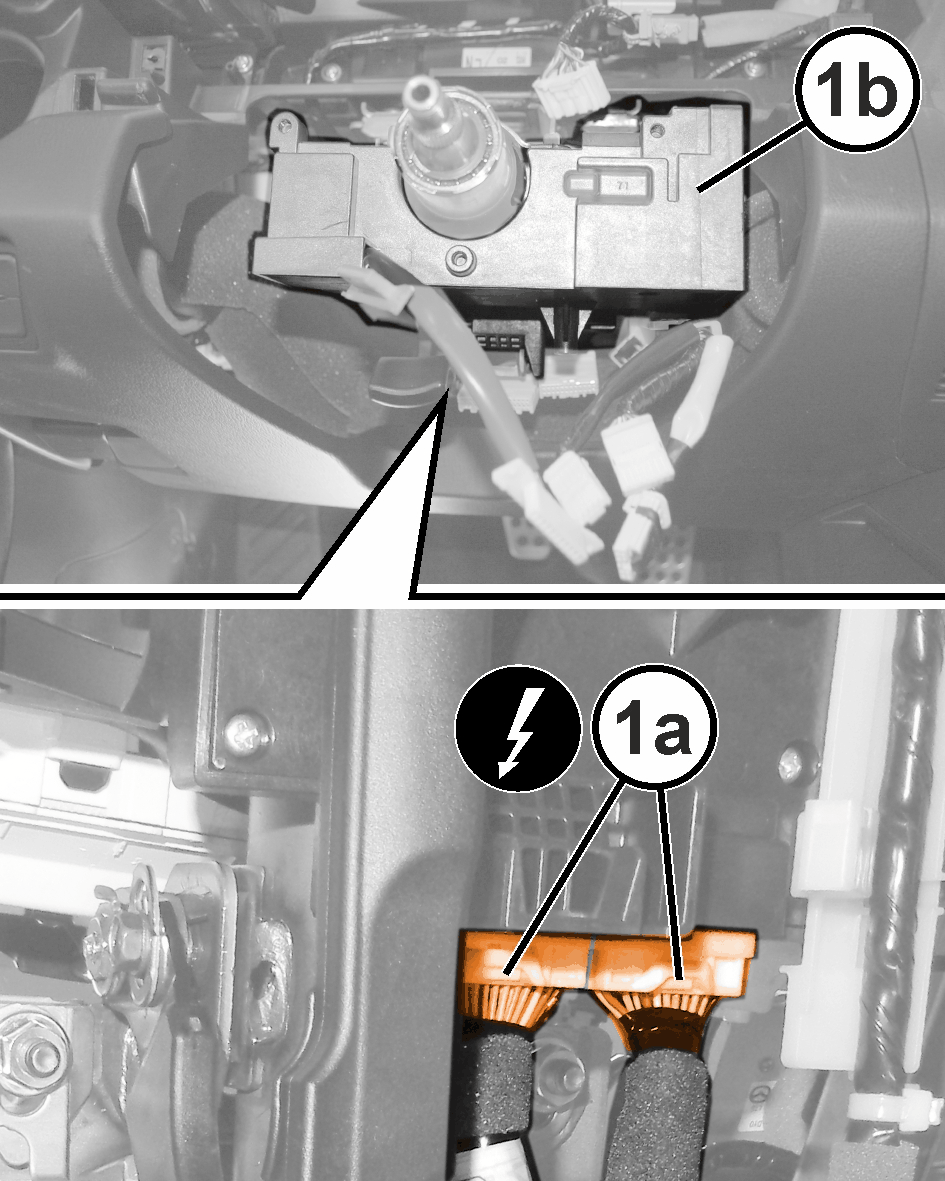

6. 1. Disconnect the electrical connections (1a) from the Radio Frequency Hub module (RF-Hub) (1b).

   Courtesy of CHRYSLER GROUP, LLC

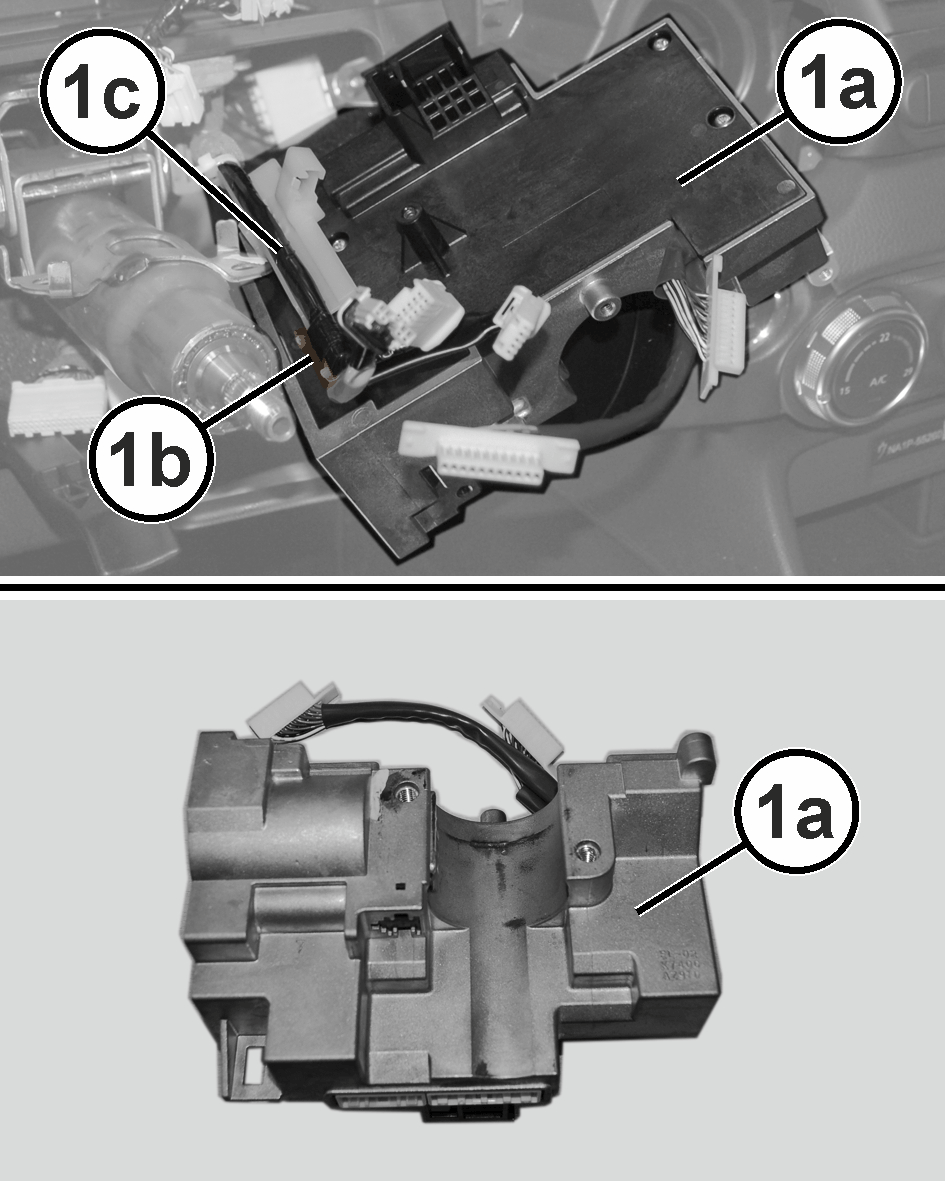

7. Position aside the RF-Hub (1a), release the retaining clip (1b) and remove the wiring (1c).

INSTALLATION

1. Position the RF-Hub module to its housing.
2. Connect the electrical connections for the RF-Hub module.
3. Secure the wiring retaining clip to the RF-Hub module.
4. Install the IPC. Refer to REMOVAL AND INSTALLATION .
5. Install the multi-function switch. Refer to SWITCH, MULTIFUNCTION, REMOVAL AND INSTALLATION .
6. Connect the negative battery cable.
7. Perform the Key and RFH programming procedures as needed. Refer to MODULE, RADIO FREQUENCY (RF HUB), MODULE PROGRAMMING .
