Module, Radio Receiver: Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the center instrument panel bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .

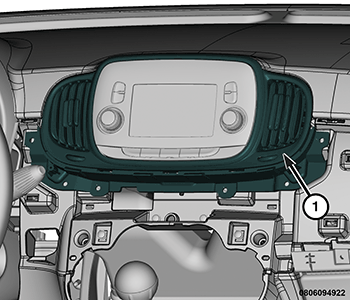

    GC0173410Courtesy of CHRYSLER GROUP, LLC
  3. Remove the four radio bezel to instrument panel screws, and remove the radio bezel (1).

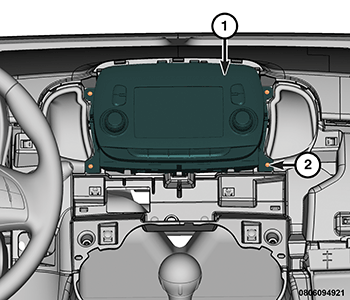

    GC0173421Courtesy of CHRYSLER GROUP, LLC
  4. Remove the four radio to instrument panel screws (2).
  5. While removing the radio (1), disconnect the electrical connectors.
