Module-Occupant Restraint Controller C1 (Standard) Connector End View (D3834A)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1/14268/01

Part Description: Not Available

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Occupant Restraint Controller C1 Connector End View (Standard)

Courtesy of CHRYSLER

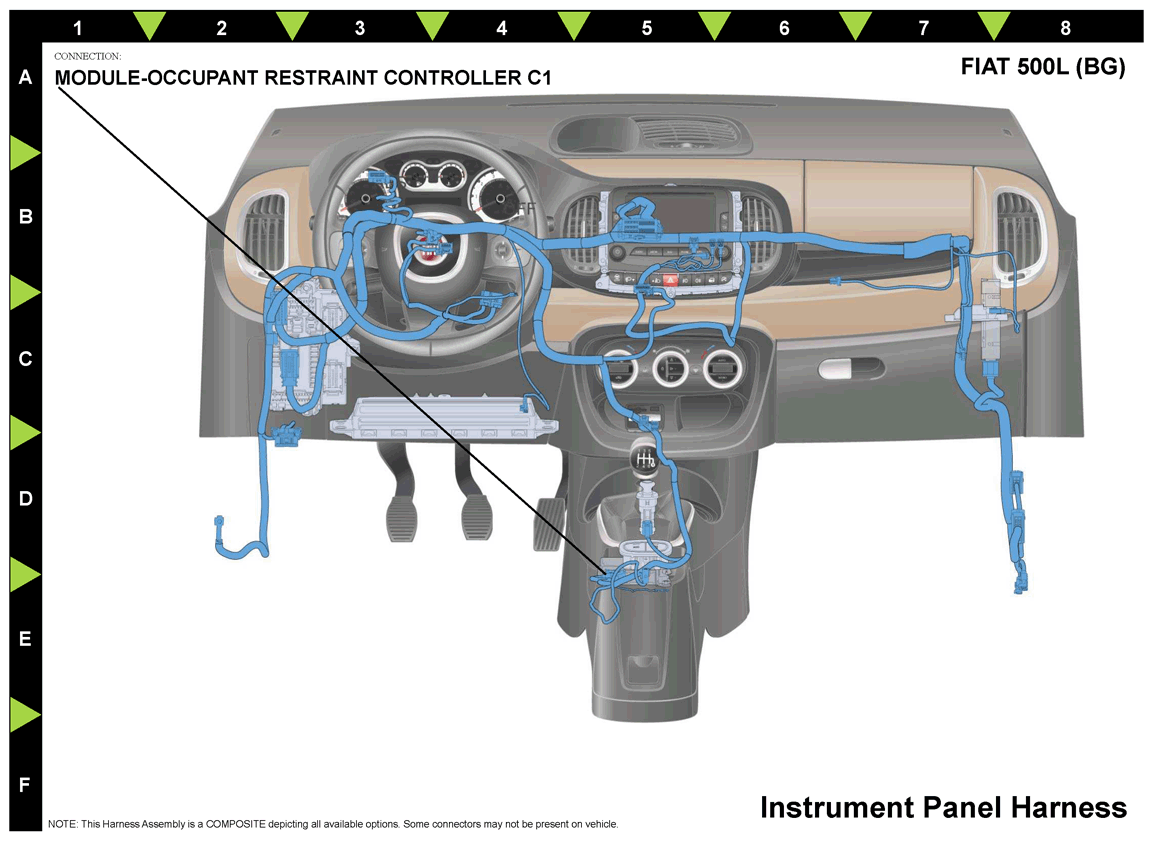

Fig 2: Module-Occupant Restraint Controller C1 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R45

BN/YE

0.5

DRIVER SQUIB 1 LINE 1

N/A

R43

BN/GY

0.5

DRIVER SQUIB 1 LINE 2

N/A

R61

GN/BK

0.5

DRIVER SQUIB 2 LINE 2

N/A

R63

GN/YE

0.5

DRIVER SQUIB 2 LINE 1

N/A

WH/BK

0.5

DRIVER KNEE BLOCKER SQUIB LINE 2

N/A

R11

BN/DB

0.5

DRIVER KNEE BLOCKER SQUIB LINE 1

N/A

F945

DB/YE

0.5

IGNITION RUN/START CONTROL OUTPUT

N/A

D41

0.35

CAN B BUS (+)

N/A

R42

0.5

PASSENGER SQUIB 1 LINE 2

N/A

R44

OG/BK

0.5

PASSENGER SQUIB 1 LINE 1

N/A

R64

WH/DB

0.5

PASSENGER SQUIB 2 LINE 1

N/A

R62

WH/BK

0.5

PASSENGER SQUIB 2 LINE 2

N/A

R66

OG/DB

0.5

PASSENGER SQUIB 3 LINE 2

N/A

R68

BN/WH

0.5

PASSENGER SQUIB 3 LINE 1

N/A

D42

0.35

CAN B BUS (-)

N/A

R79

0.35

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

R81

BN/BK

0.35

LEFT FRONT IMPACT SENSOR GROUND

N/A

R82

GY/BK

0.5

RIGHT FRONT IMPACT SENSOR GROUND

N/A

R80

0.35

RIGHT FRONT IMPACT SENSOR SIGNAL

N/A

Z104

0.5

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
