Module-Transmission Control (AISIN Transmission) Connector End View (D3855A)

Harness-Family: TRANSMISSION

Color: BLACK

Gender: FEMALE

Part Number: 13854194

Part Description: Not Available

Connector No: D3855A

Option: AISIN TRANSMISSION

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Transmission Control Connector End View (AISIN TRANSMISSION)

Courtesy of CHRYSLER

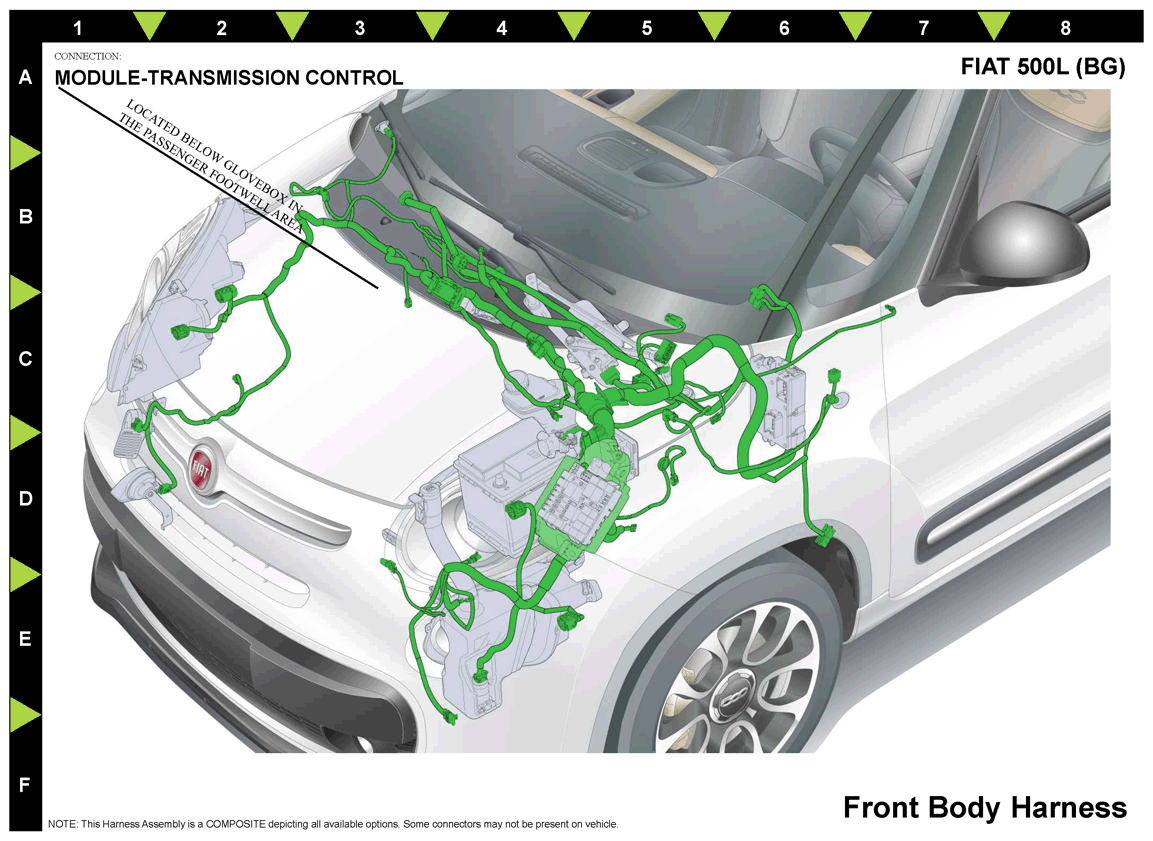

Fig 2: Module-Transmission Control Component Location (AISIN TRANSMISSION)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

A191

1.5

FUSED B(+)

N/A

D64

0.5

CAN C BUS (-)

N/A

D65

0.5

CAN C BUS (+)

N/A

D65

0.5

CAN C BUS (+)

N/A

Z910

1.5

GROUND

N/A

0.5

IGNITION OFF/RUN/START CONTROL OUTPUT

N/A

D64

0.5

CAN C BUS (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
