Module-Powertrain Control C1 (Standard) Connector End View (D3821A)

Harness-Family: Body_Front

Color: BLACK

Gender: FEMALE

Part Number: 1/08098/97

Part Description: Not Available

Connector No: D3821A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Powertrain Control C1 Connector End View (Standard)
GCWD1077699Courtesy of CHRYSLER

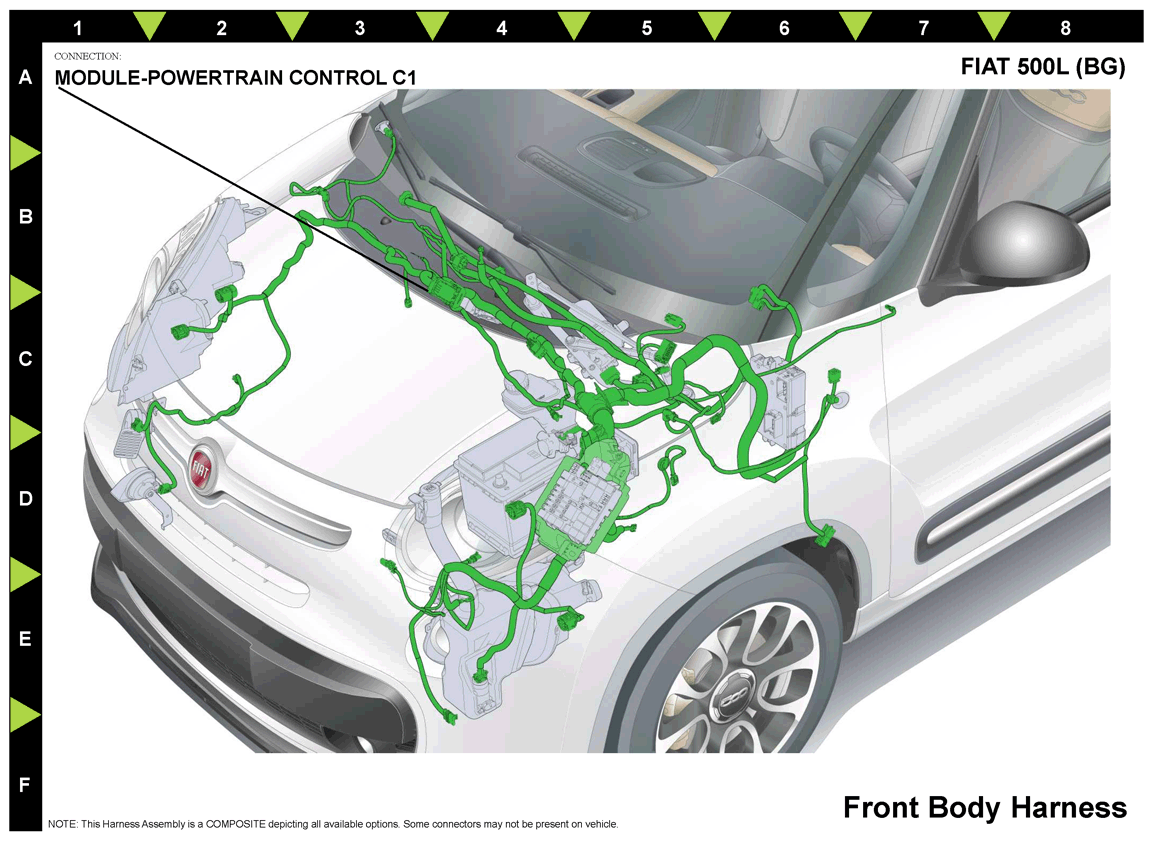

Fig 2: Module-Powertrain Control C1 Component Location (Standard)
GCWD1247049Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z130 BK 4.0 GROUND N/A
2 Z130 BK 2.5 GROUND N/A
3 F342 DB/RD 1.5 ASD CONTROL OUTPUT N/A
4 Z130 BK 2.5 GROUND N/A
5 F342 DB/RD 1.5 ASD CONTROL OUTPUT N/A
6 F342 DB/RD 1.5 ASD CONTROL OUTPUT N/A
16 N8 GN/OG 0.35 5-VOLT SUPPLY N/A
31 K502 WH/RD 0.35 ELECTRIC COOLANT PUMP CONTROL N/A
32 N112 YE/GN 0.35 RAD FAN RELAY CONTROL N/A
33 N201 YE/BK 0.35 LOW RAD FAN RELAY CONTROL N/A
35 C13 YE/DB 0.35 A/C CLUTCH CONTROL N/A
36 K852 DB/YE 0.5 5-VOLT SUPPLY APP1 N/A
37 K854 DB/RD 0.5 5-VOLT SUPPLY APP2 N/A
38 C818 DB/GY 0.35 A/C PRESSURE 5 VOLT SUPPLY N/A
39 N10 GN/BK 0.35 SENSOR GROUND N/A
42 C918 BK/RD 0.35 A/C PRESSURE GROUND N/A
50 A190 RD/BK 0.5 FUSED B(+) N/A
51 K79 BN/YE 0.75 O2 1/1 HEATER CONTROL N/A
52 K51 WH/BK 0.35 ASD RELAY CONTROL N/A
53 K400 BK/VT 0.5 APP SENSOR GROUND 2 N/A
55 K167 BK/GN 0.5 APP SENSOR GROUND 1 N/A
58 N7 GN/YE 0.35 FUEL TANK PRESSURE SIGNAL N/A
59 D333 GN 0.5 ELECTRIC COOLANT PUMP SIGNAL N/A
61 K23 GY/GN 0.5 APP SIGNAL 1 N/A
63 K141 YE/RD 0.5 O2 1/2 SIGNAL N/A
64 K103 BN/OG 0.5 O2 1/1 PUMP CELL CURRENT TRIM N/A
65 K89 GY/YE 0.5 O2 1/1 POSITIVE CURRENT CONTROL N/A
69 D65 GN 0.35 CAN C BUS (+) N/A
70 D64 BN 0.35 CAN C BUS (-) N/A
72 T753 OG/WH 0.35 IGNITION CRANK SENSE N/A
76 K71 WH/BK 0.5 OBD VENT VALVE CONTROL N/A
77 K299 VT/BK 0.5 O2 1/2 HEATER CONTROL SUPPLY N/A
80 K108 YE 0.5 ESIM SIGNAL N/A
82 C18 GY/BN 0.35 A/C PRESSURE SIGNAL N/A
83 K29 GY/RD 0.5 APP SIGNAL 2 N/A
85 K904 GN/YE 0.5 O2 RETURN (DOWNSTREAM) N/A
86 K41 BN/GN 0.5 O2 1/1 SIGNAL N/A
87 K902 WH/DB 0.5 O2 RETURN (UPSTREAM) N/A
88 F1 OG/BK 0.5 IGNITION OFF/RUN/START CONTROL OUTPUT N/A
94 K31 WH/GN 0.35 FUEL PUMP CONTROL N/A
(1) Pins not listed are not used for this connector
