Module-Security Gateway C2 (Standard) Connector End View (D3921B)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 0/14456/87

Part Description: Not Available

Connector No: D3921B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Security Gateway C2 Connector End View (Standard)

Courtesy of CHRYSLER

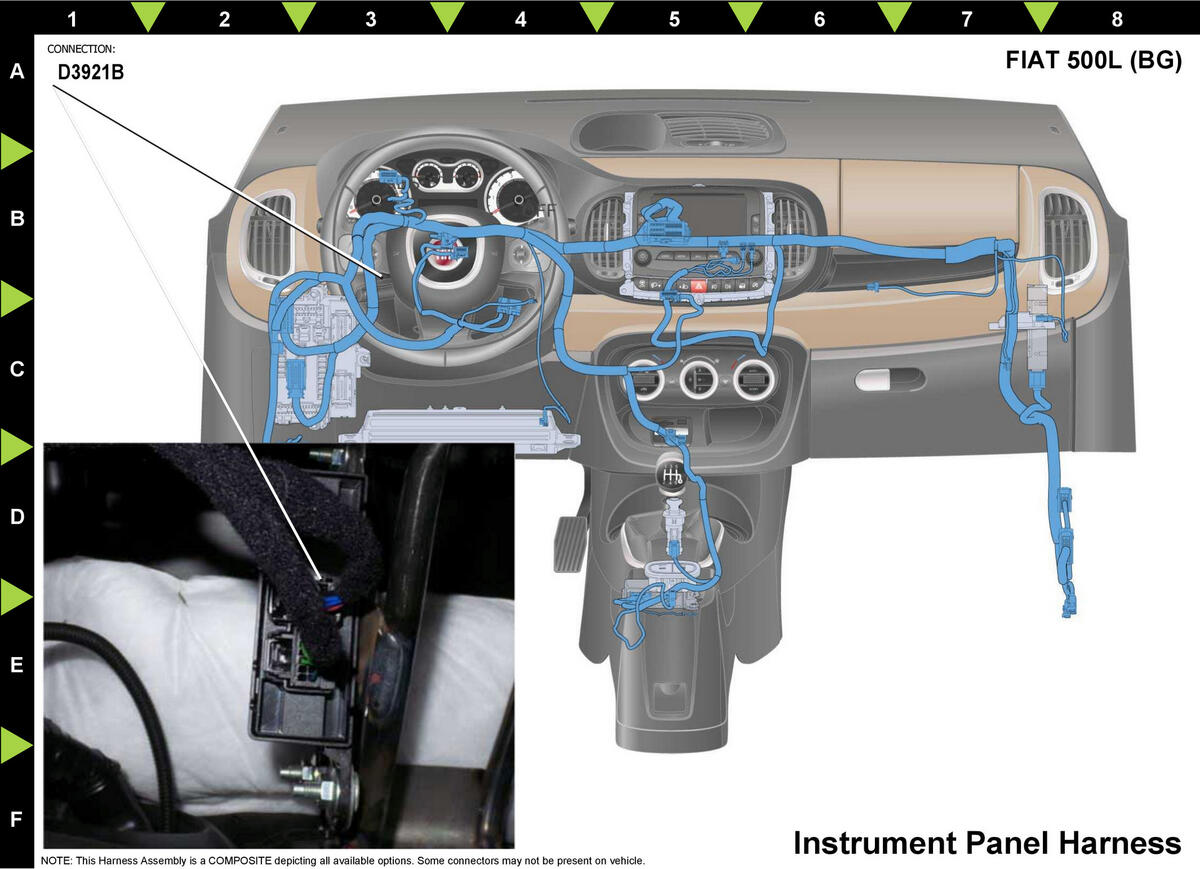

Fig 2: Module-Security Gateway C2 Component Location (Standard)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D41

0.35

CAN B BUS (+)

N/A

D41

0.35

CAN B BUS (+)

N/A

D41

0.35

CAN B BUS (+)

N/A

Z921

0.75

GROUND

N/A

A924

RD/VT

0.75

FUSED B(+)

N/A

D42

0.35

CAN B BUS (-)

N/A

D42

0.35

CAN B BUS (-)

N/A

D42

0.35

CAN B BUS (-)

N/A

⁽¹⁾	Pins not listed are not used for this connector
