System Protection

System is protected against electrical currents produced or used by any vehicle component during normal operation.

NOTE: Damage to ignition system can occur if proper testing procedures are not followed.

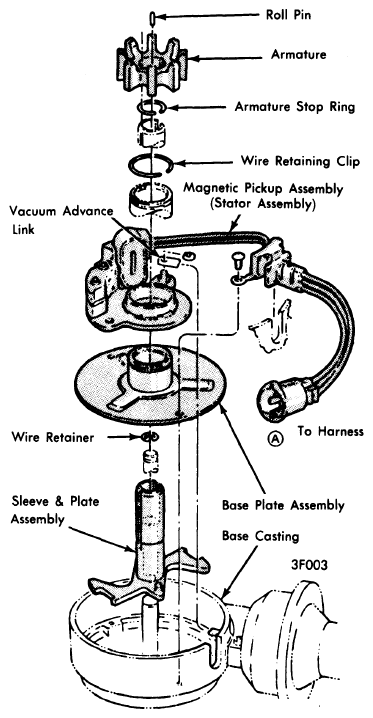

Fig 1: SOLID STATE DISTRIBUTOR

Courtesy of FORD MOTOR CO.
