Carburetor: 7200

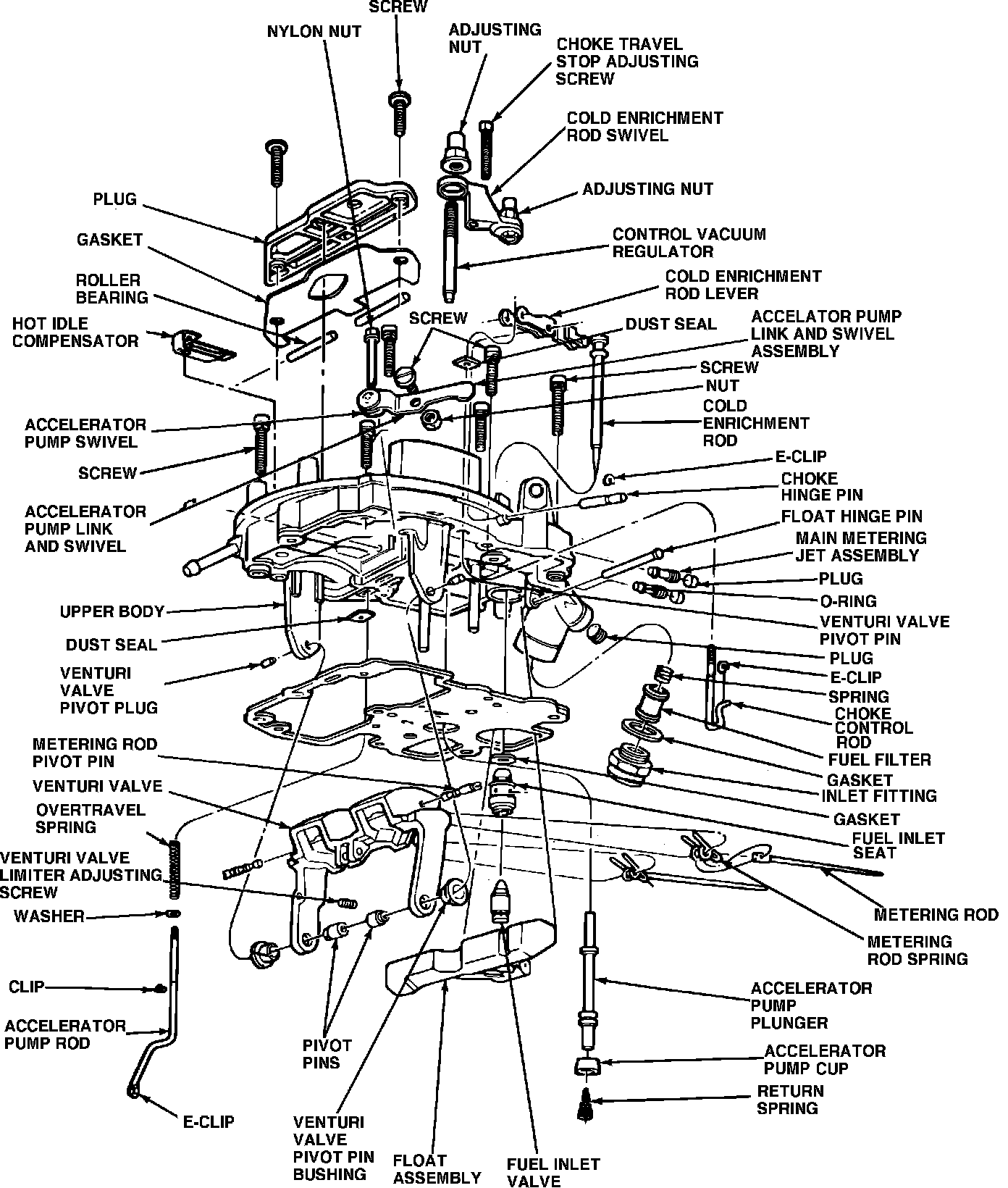

Fig. 1 Upper body. Motorcraft 7200 VV:

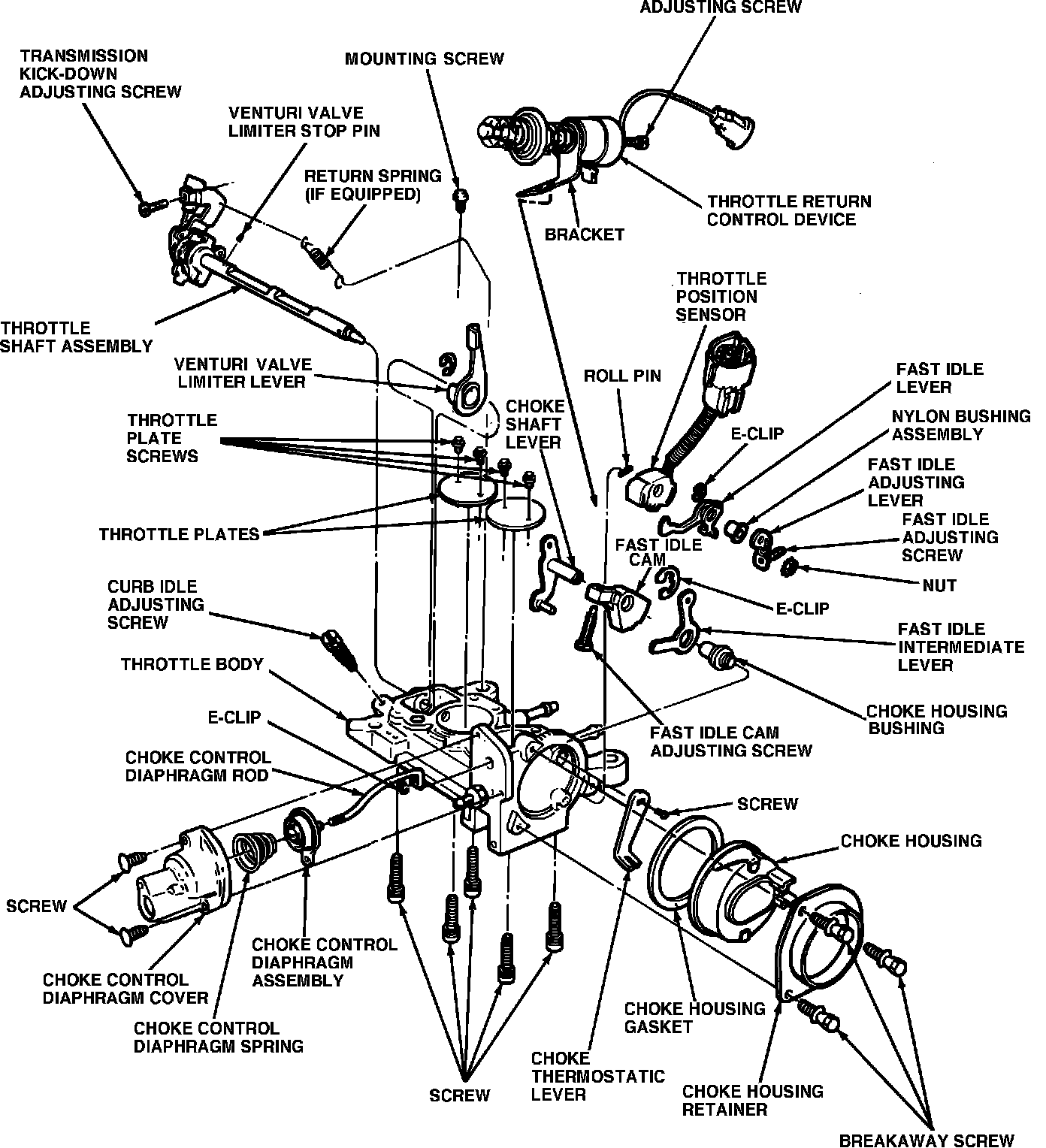

Fig. 2 Throttle body. Motorcraft 7200 VV:

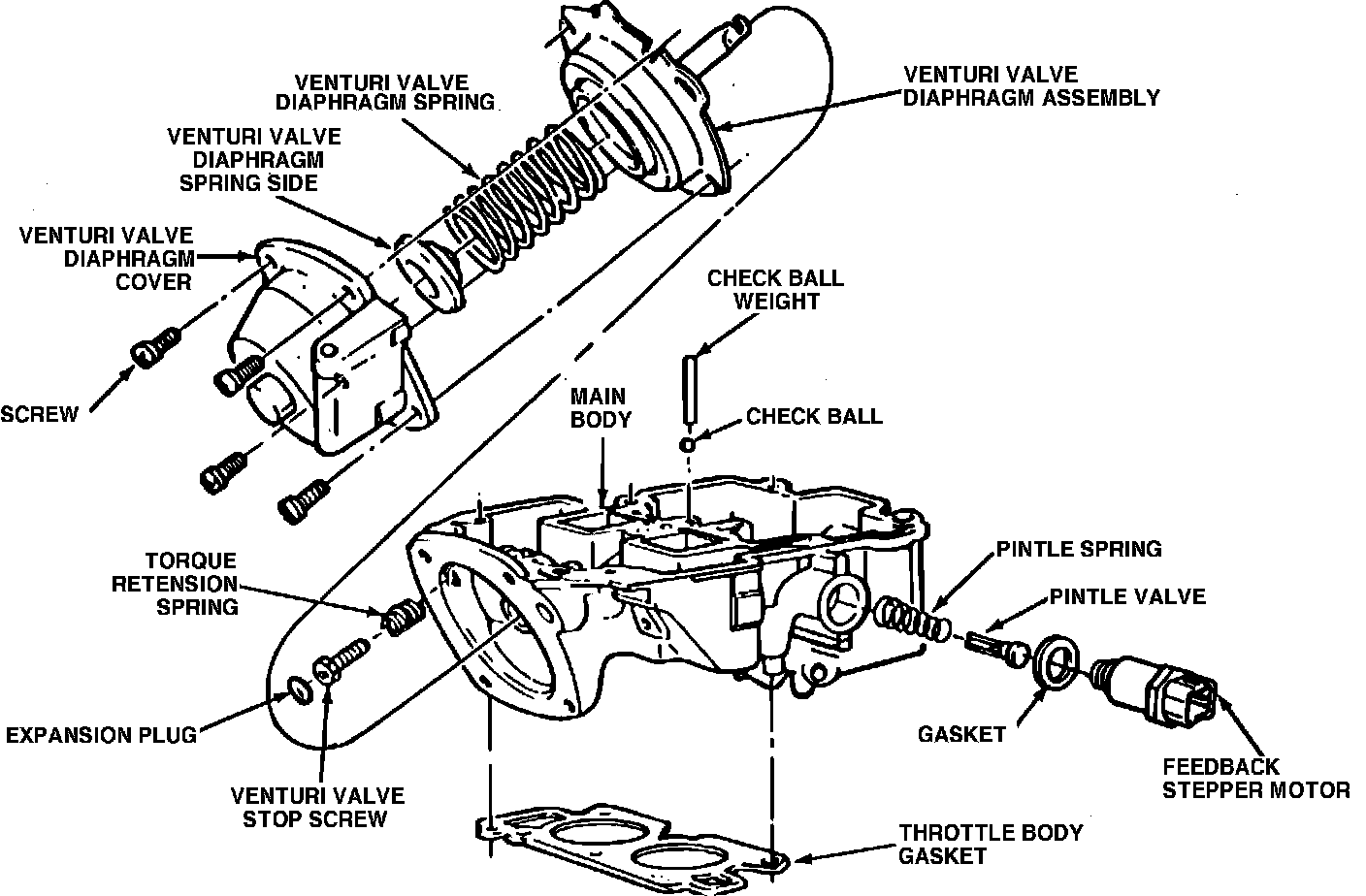

Fig. 3 Main body. Motorcraft 7200 VV:
