Torque Specifications

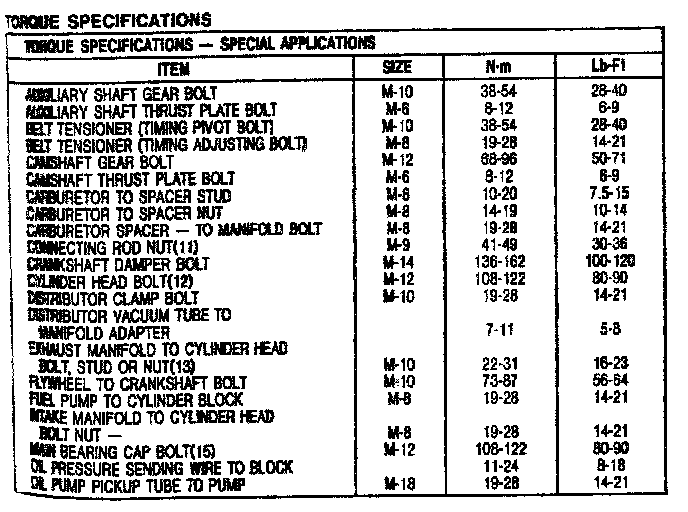

2.3L SOHC Engine Mechanical Torque:

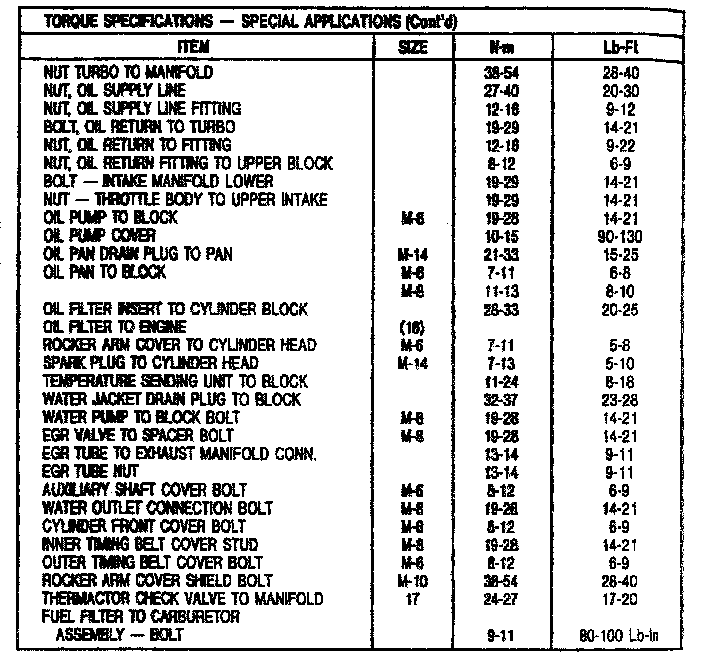

2.3L SOHC Engine Torque Cont.:

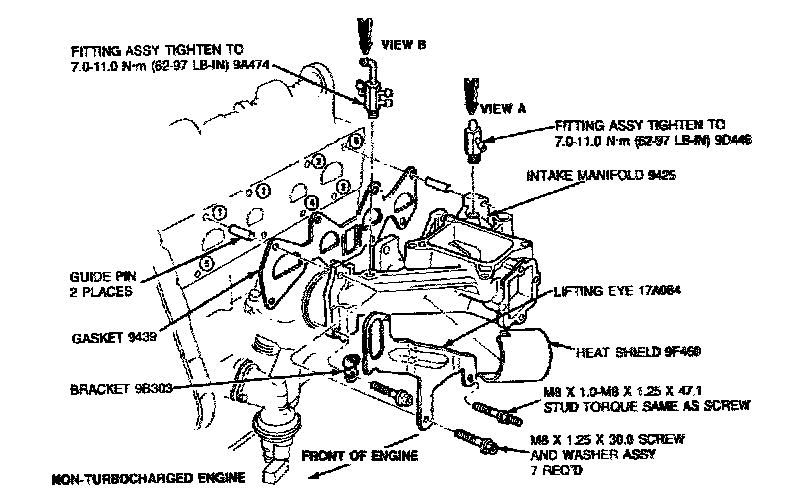

2.3L SOHC Intake Manifold Sequence:

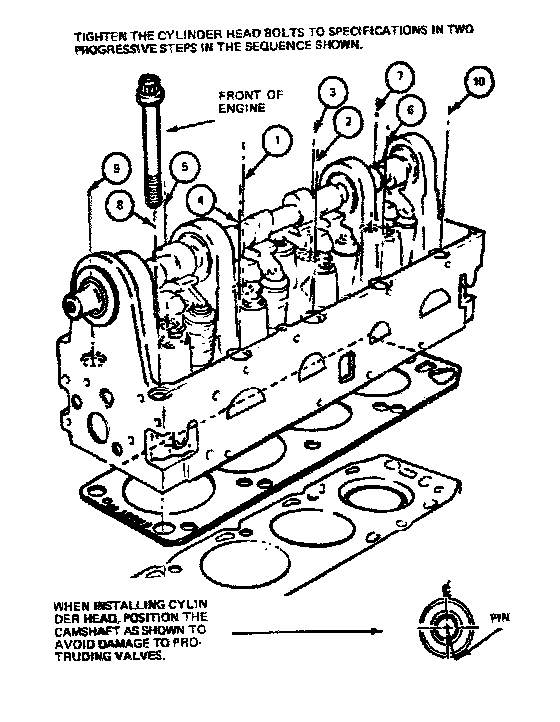

2.3L Cylinder Head Sequence:
