General Engine Specifications

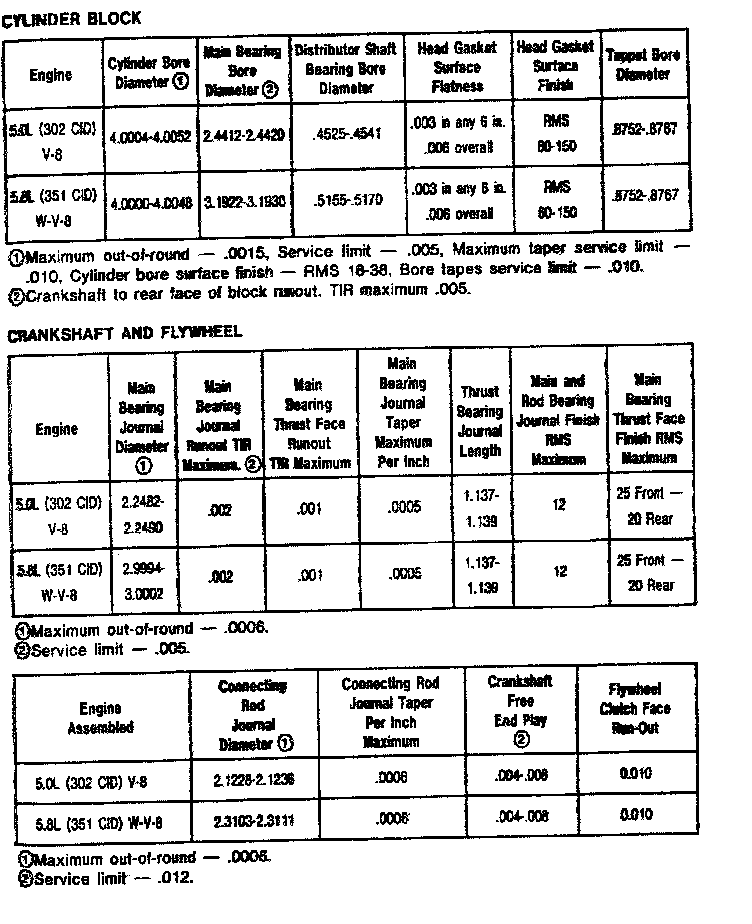

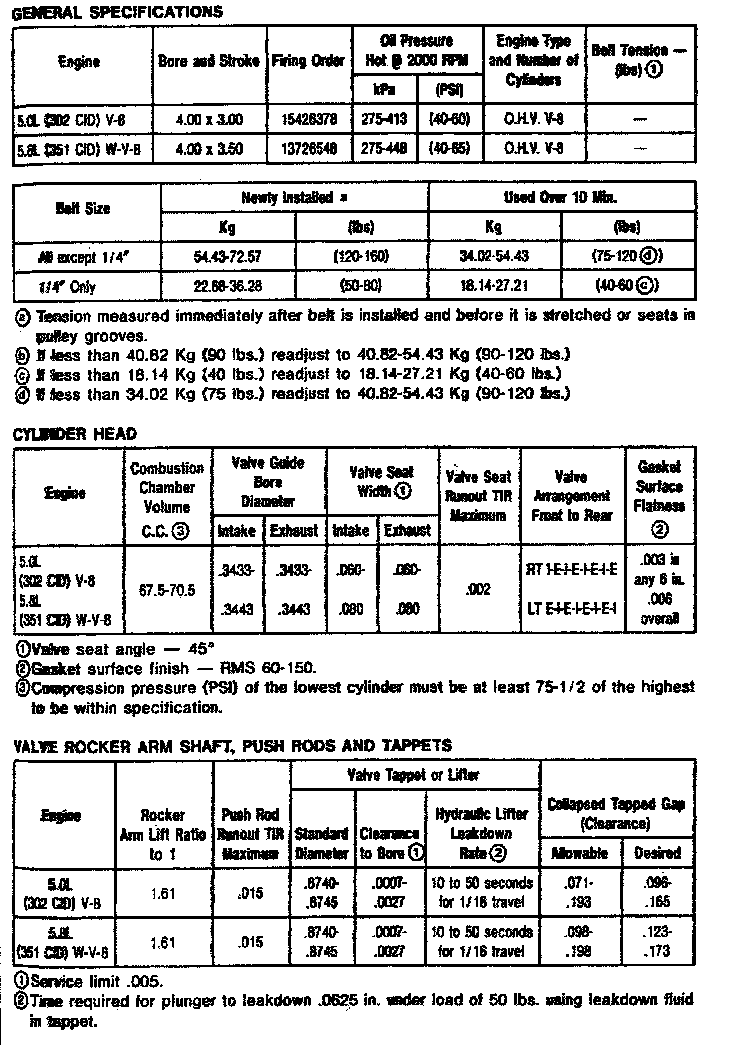

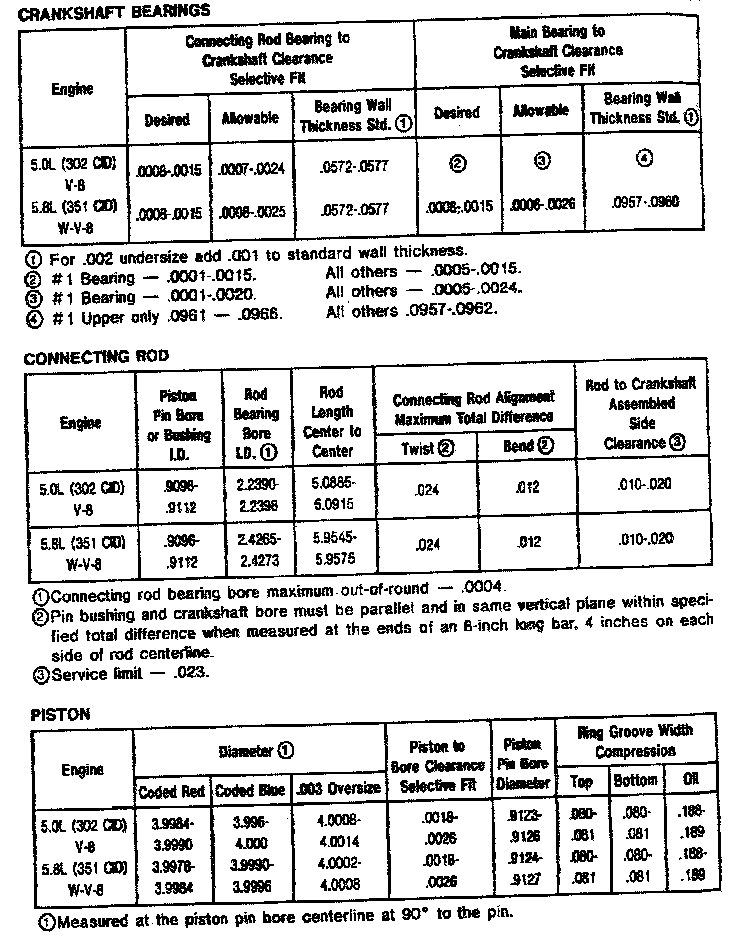

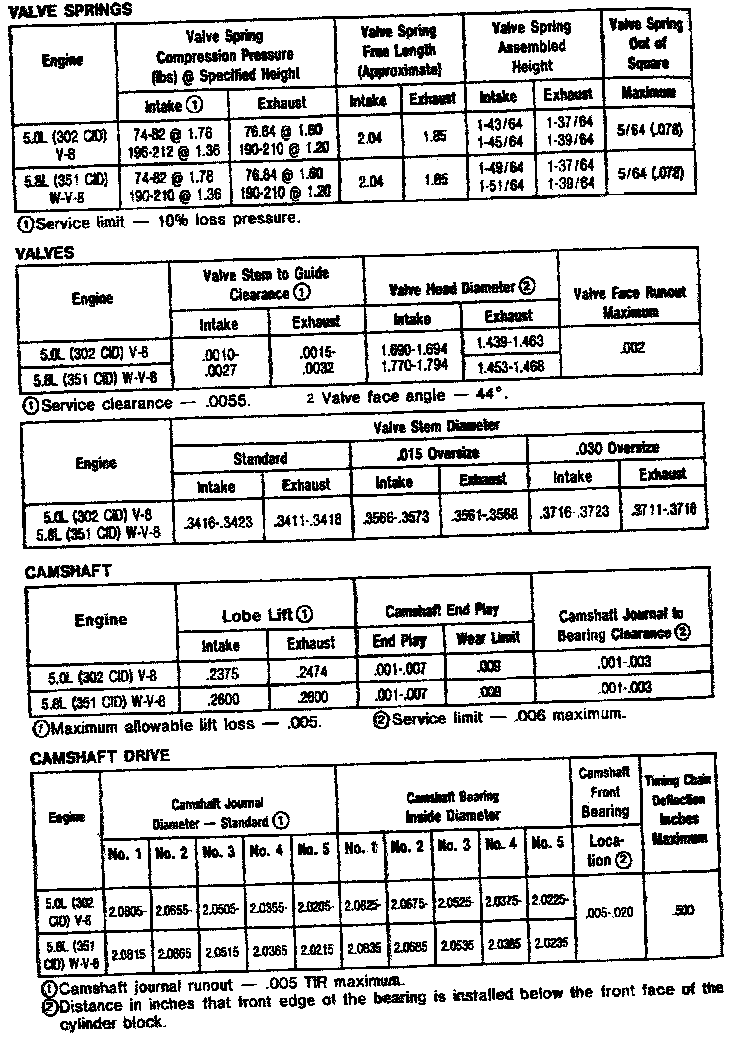

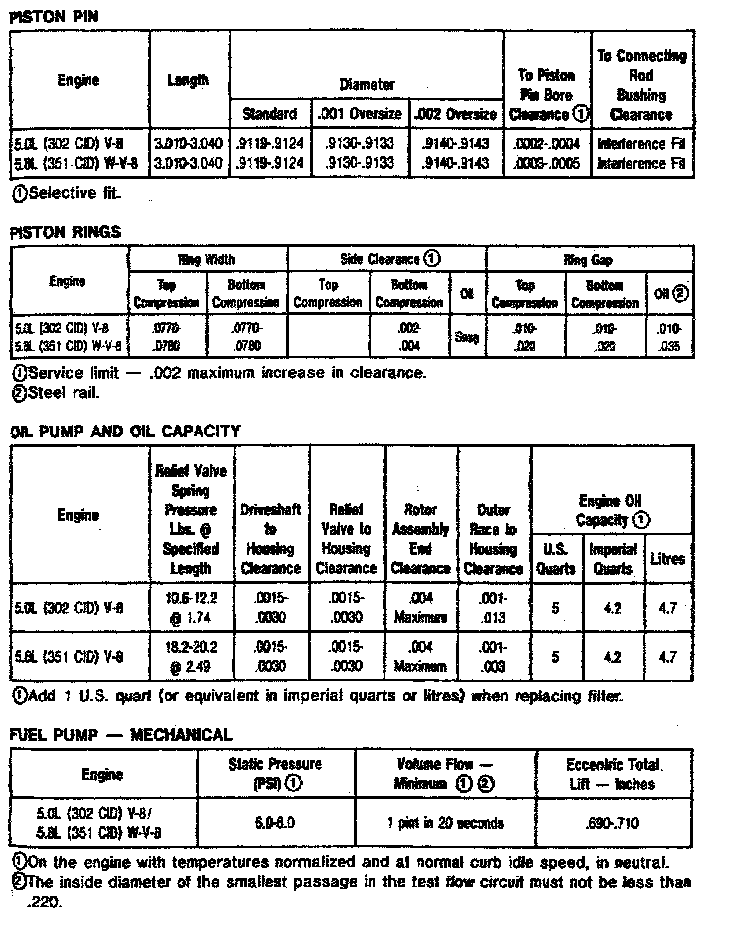

5.0L/5.8L V8 Engine Mechanical Data:





5.0L/5.8L V8 Engine Mechanical Cont.:





5.0L/5.8L V8 Engine Mechanical Cont.:





5.0L/5.8L V8 Engine Mechanical Cont.:





5.0L/5.8L V8 Engine Mechanical Cont.:
