Torque Specifications

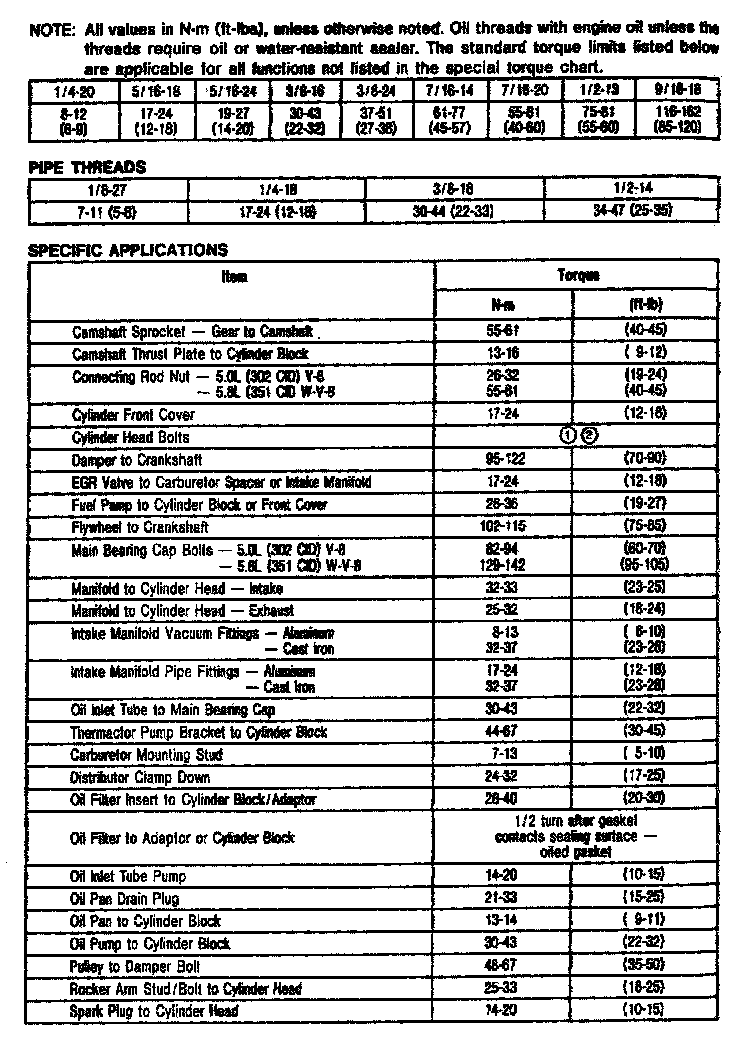

5.0L/5.8L V8 Engine Mechanical Torque:

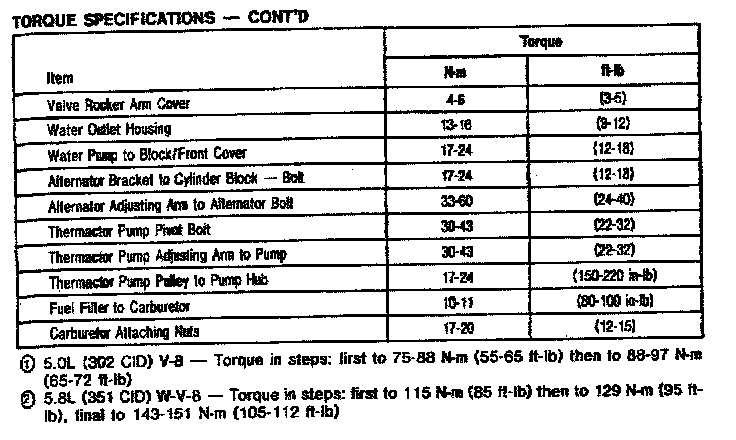

5.0L/5.8L V8 Engine Torque Cont.:

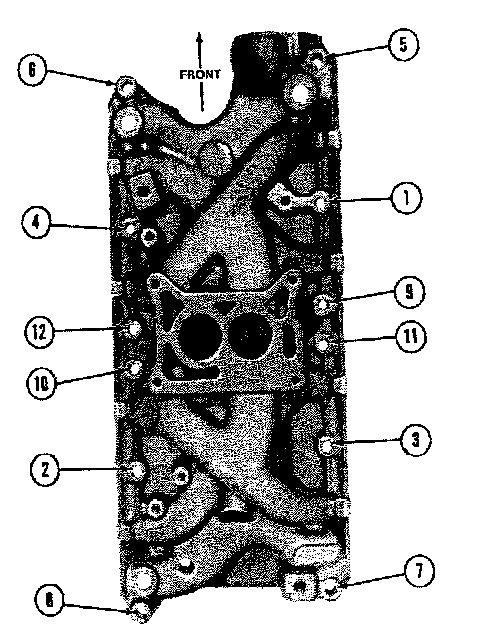

5.0L/5.8L Intake Manifold Sequence:

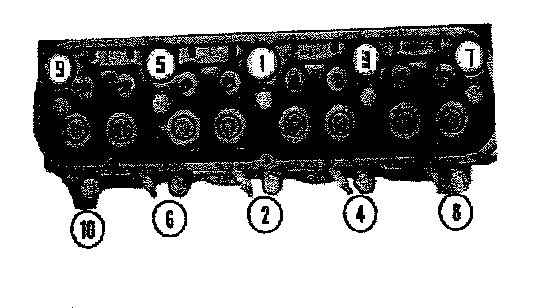

5.0L/5.8L Cylinder Head Sequence:
