Fig. 26 Calib. Codes 2-04Q-R10 & 2-04Q-R13 Calif.
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

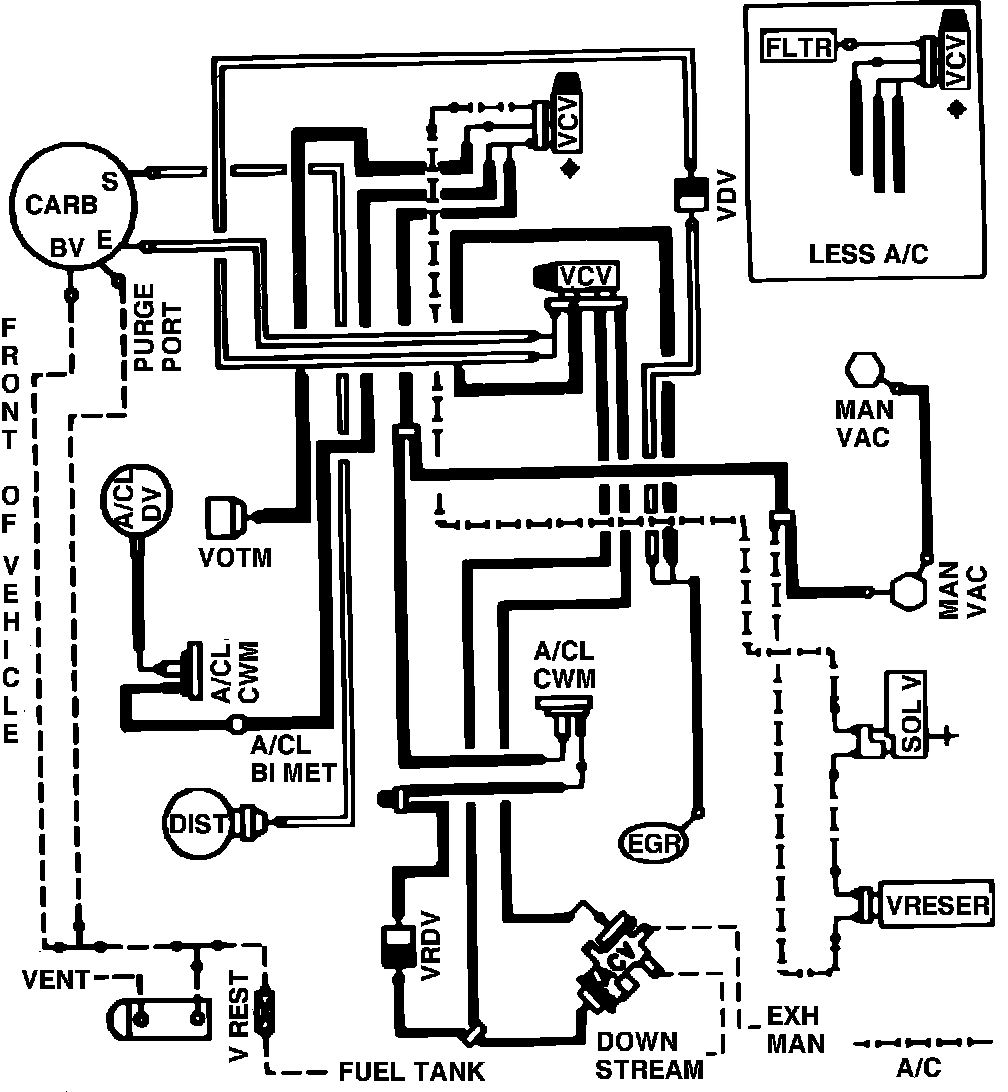

Fig. 26 Calib. Codes 2-04Q-R10 & 2-04Q-R13 Calif.
Vacuum hose routing:
