Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Electronic Control Assembly (ECA) | Under center of instrument panel. |

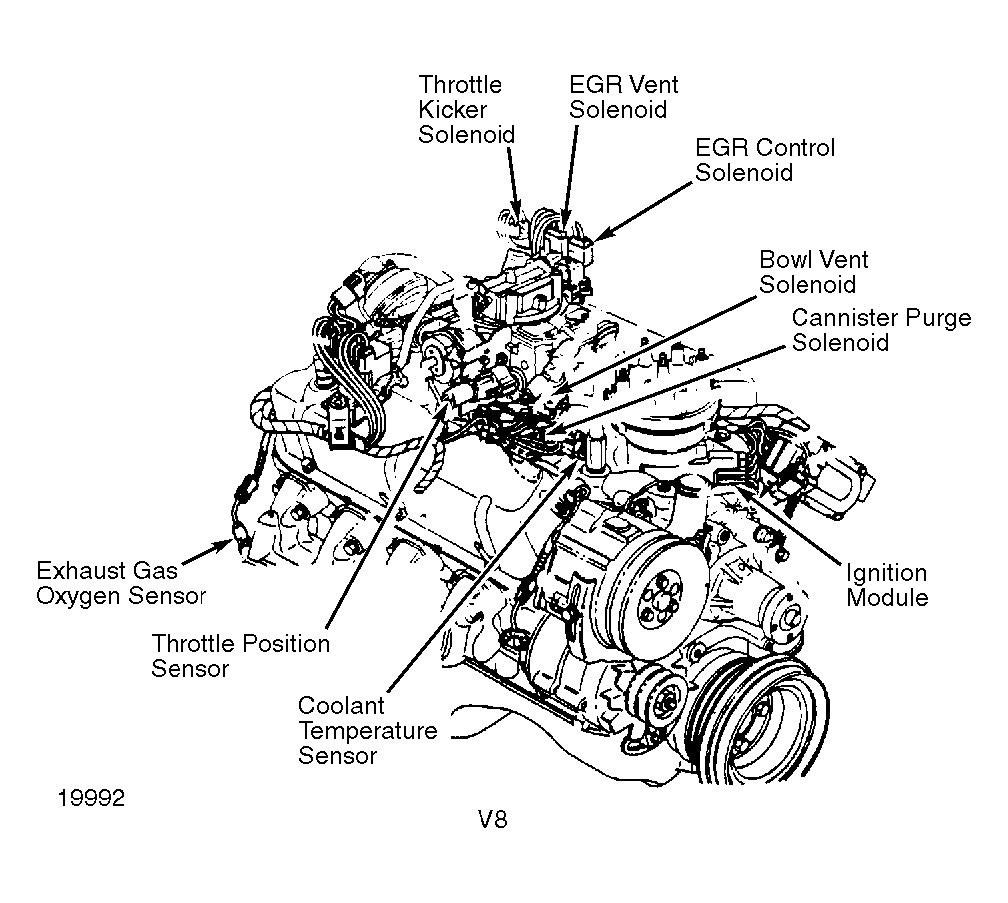

| Ignition Module | On engine, attached to distributor base. See Figure. |
| Rear Window Defrost Control | Under left side of instrument panel. |

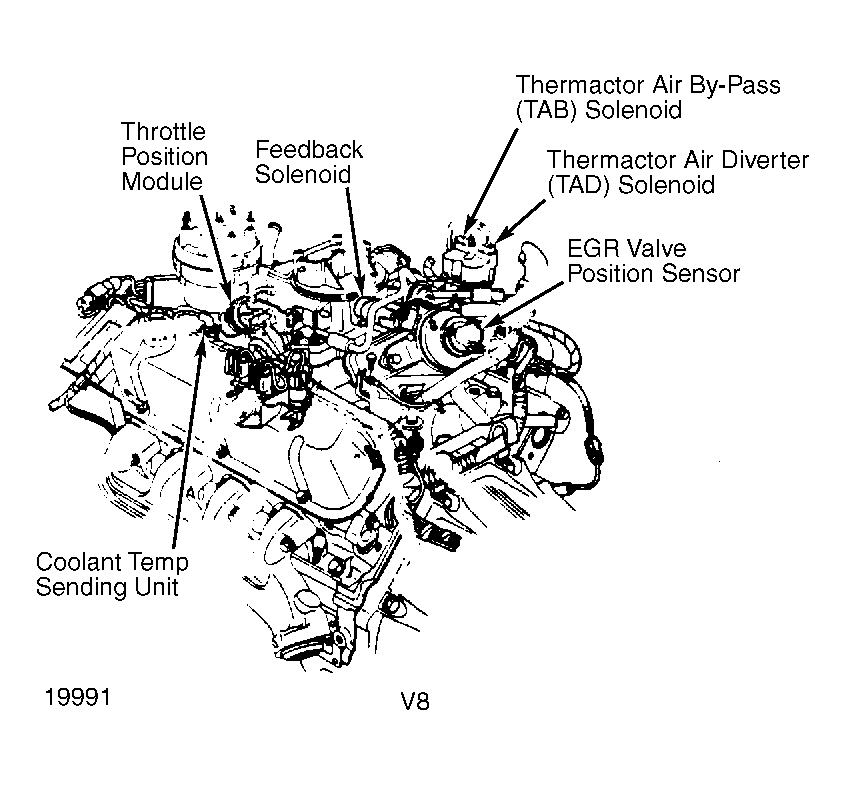

| Throttle Position Module | On left front side of carburetor. See Figure. |
