Installation (4.9L Engine)

Clean and inspect manifold mounting surfaces. Position new gaskets and install manifolds. Tighten manifold bolts in sequence. See Fig 1 . To complete installation, reverse removal procedure.

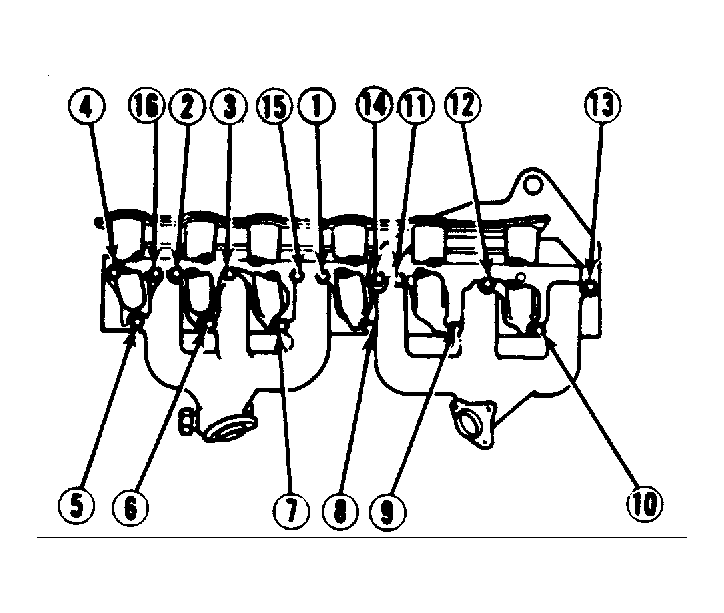

Fig 1: 4.9L Engine Lower Intake Manifold Tightening Sequence
