AXOD Transaxle

  1. Place selector lever in "OVERDRIVE" position. Selector lever must be held in this position while adjusting linkage. Loosen manual lever-to-control cable retaining nut. See Fig 1.

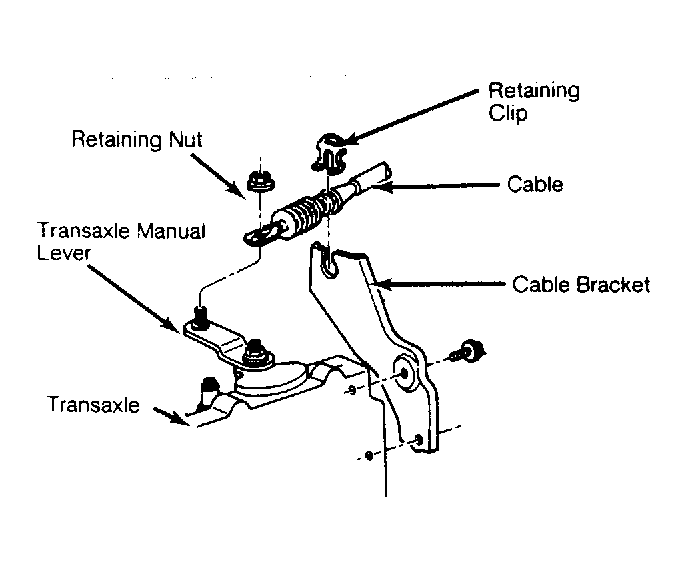

    Fig 1: AXOD Transaxle Shift Linkage
    G54102
  2. Move transaxle manual lever to "OVERDRIVE" position, second detent from most rearward position. Tighten attaching nut to 10-15 ft. lbs. (14-20 N.m). Check operation of transaxle in each gear position.
