Automatic Transaxle

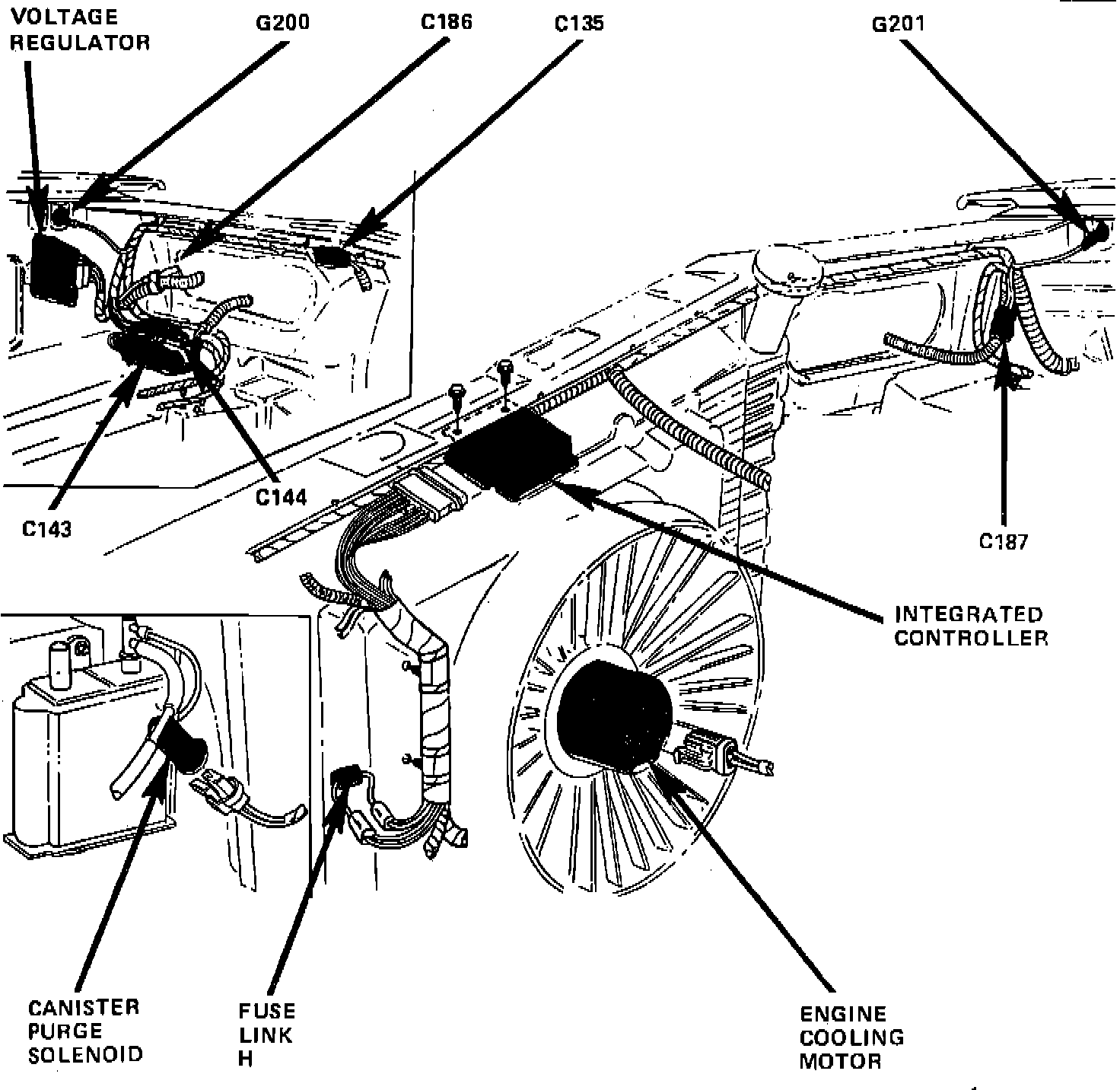

Location View - Front Of Engine Compartment:

The High Speed Electro Drive Fan (HEDF) and Low Speed Electro Drive Fan (EDF) Relays are part of the Integrated Control Module; which is located on the radiator support.
