FF - Power Steering Pressure Switch (PSPS)
>>
FF - Testing Notes and Schematic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
FF - Testing Notes and Schematic

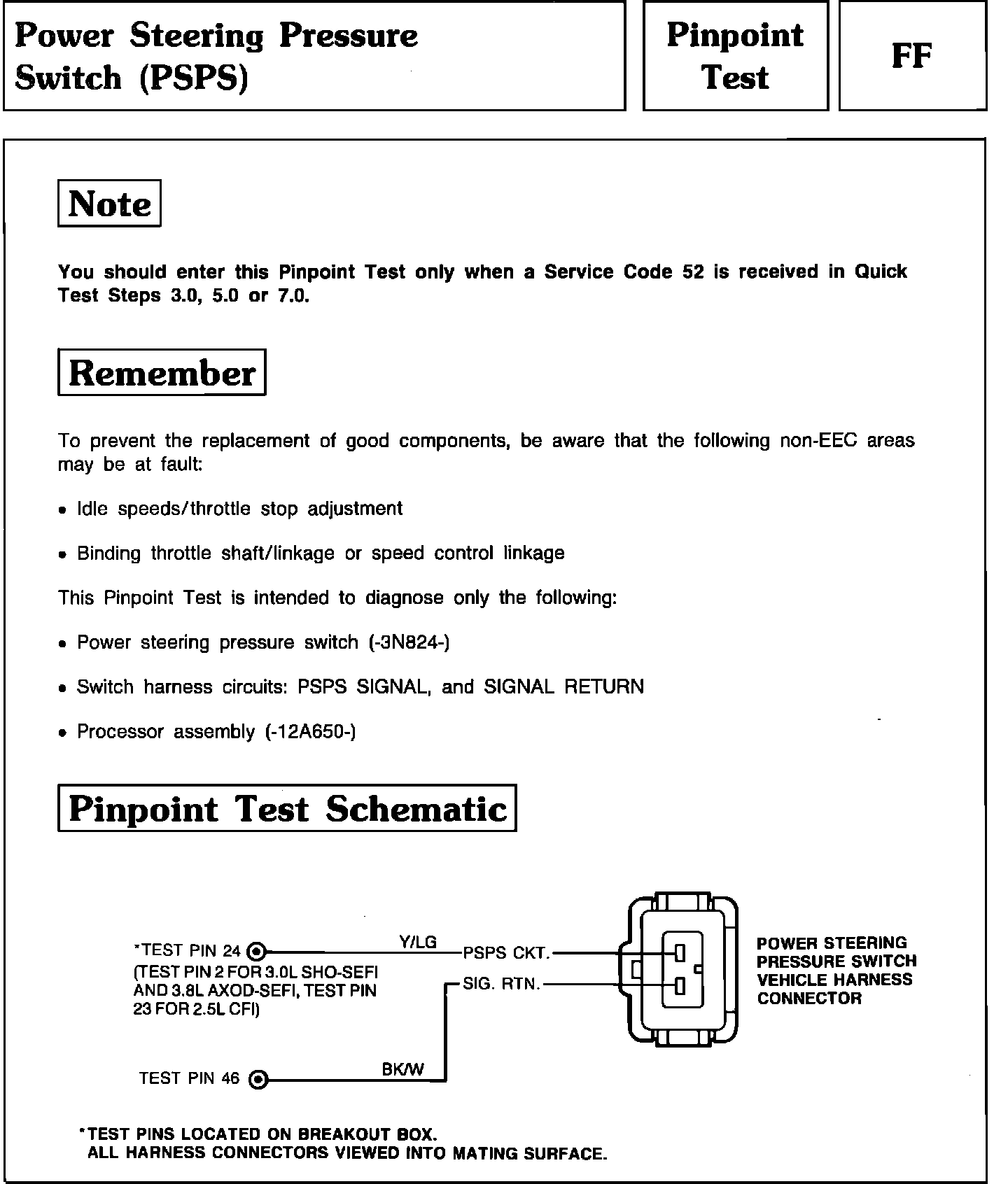

Pinpoint Test FF - Test Schematic:
